Schneider Electric Front element

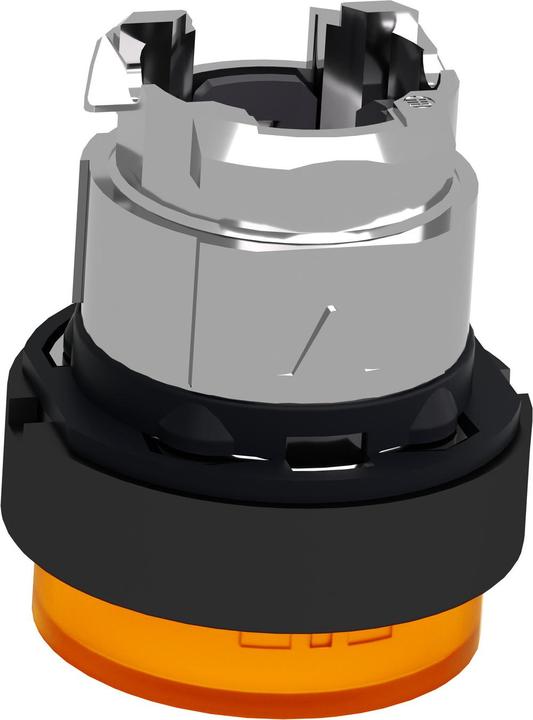

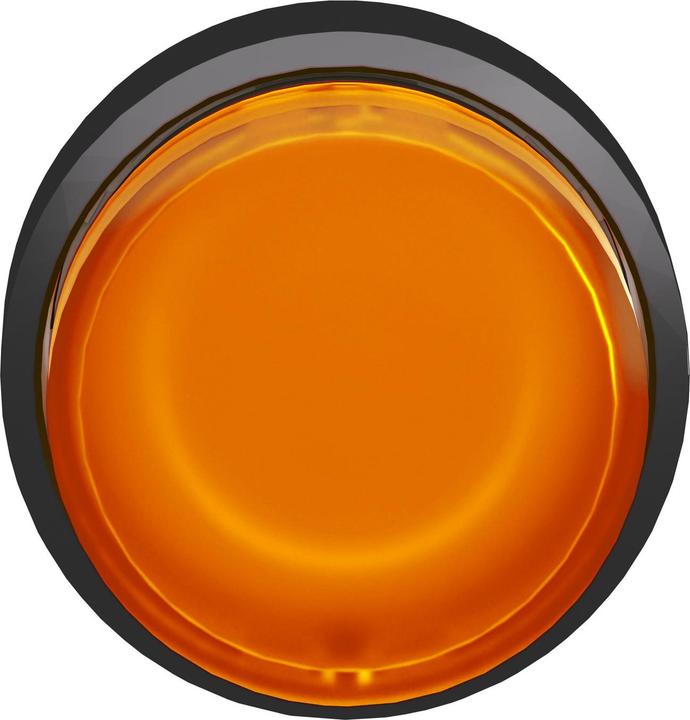

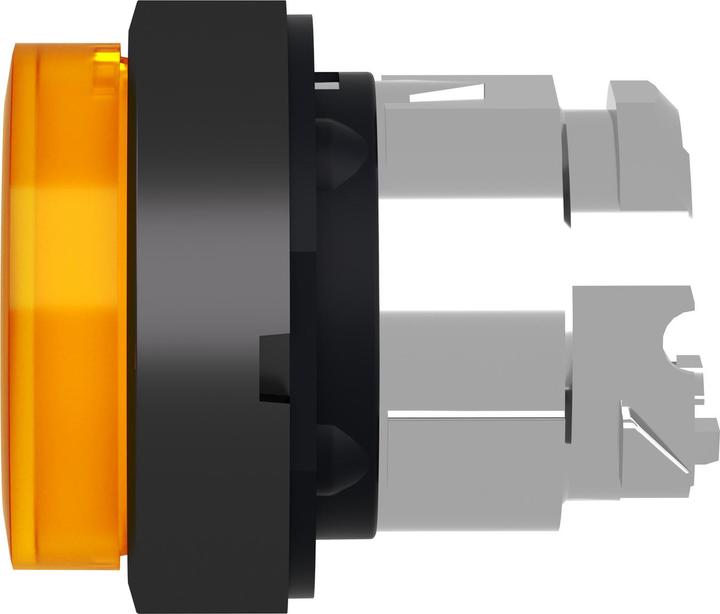

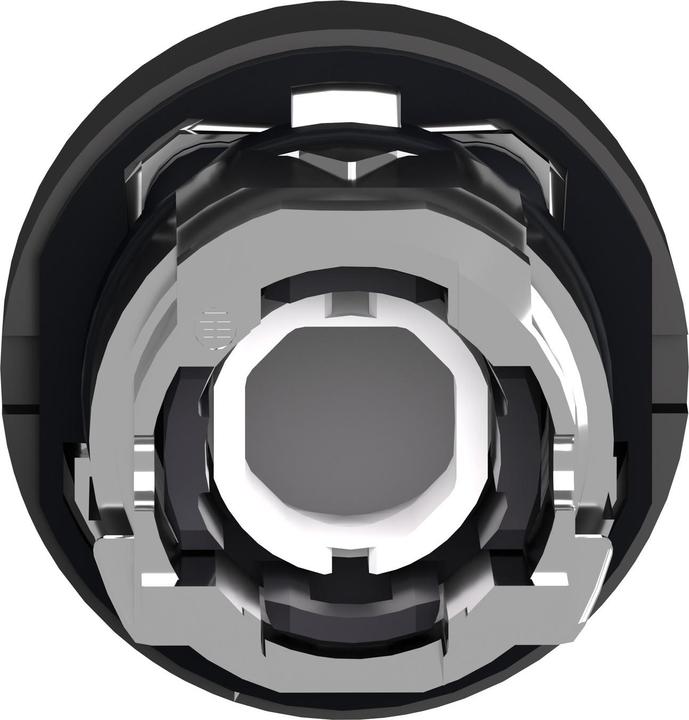

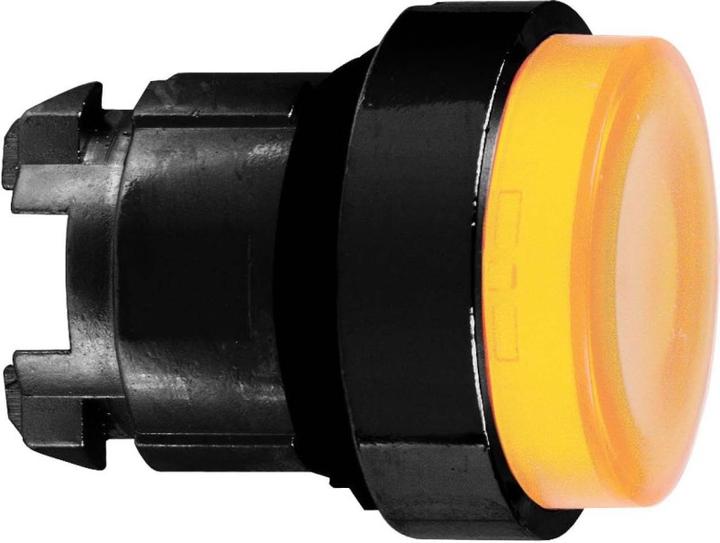

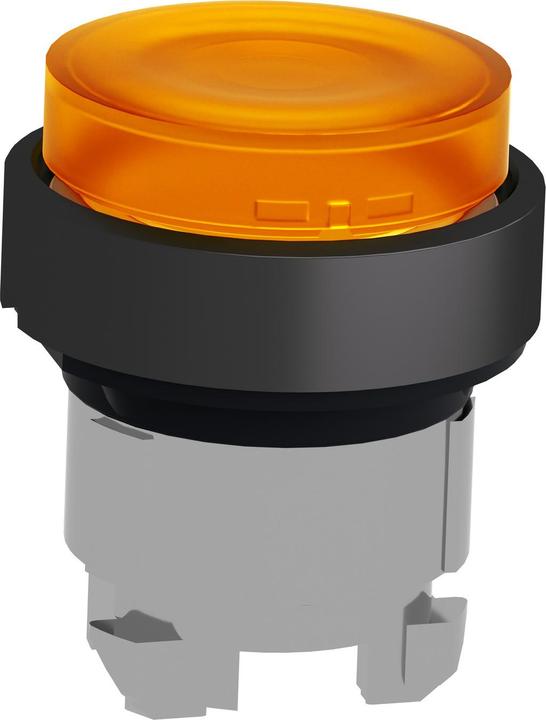

Schneider Electric Front Element, orange ZB4BW1537

Manufacturer: Schneider Electric
Description: Front element, orange for illuminated pushbutton
Type: ZB4BW1537
Button color: orange
Number of command points: 1
Lens shape: round
Hole diameter: 22.5 mm
Button shape: high
Suitable for lighting: yes
With protective cover: no
Labeled: no
Latch switch function: no
Push button: yes
With front ring: yes
Material of front ring: metal
Front ring color: black
Protection class (IP), front side: IP66
Protection class (NEMA), front side: other

Schneider Electric Front Element, orange ZB4BW1537: additional details
Front element for Harmony ZB4 illuminated pushbuttons. Front in orange, bezel in black metal, unlabeled. Dimensions (WxHxD) 29x29x33 mm, mounting diameter 22 mm, weight 0.029 kg. Mechanical lifespan 10,000,000 cycles. Round standard head shape. With high vibration resistance and chemical resistance, ambient temperature -40 to +70 degrees C. The modular metal program with a 22 mm installation size combines easy installation, efficiency, and modern design. Certifications according to DNV, BV, CSA, GL, LROS, UL listed, RINA. Product standards according to UL 508, EN/IEC 60947-5-5, EN/IEC 60947-1, CSA C22.2 No 14, EN/IEC 60947-5-1, JIS C 4520, EN/IEC 60947-5-4. EAN: 3389110840148.
