Schneider Electric Front element
Colour15
Product details

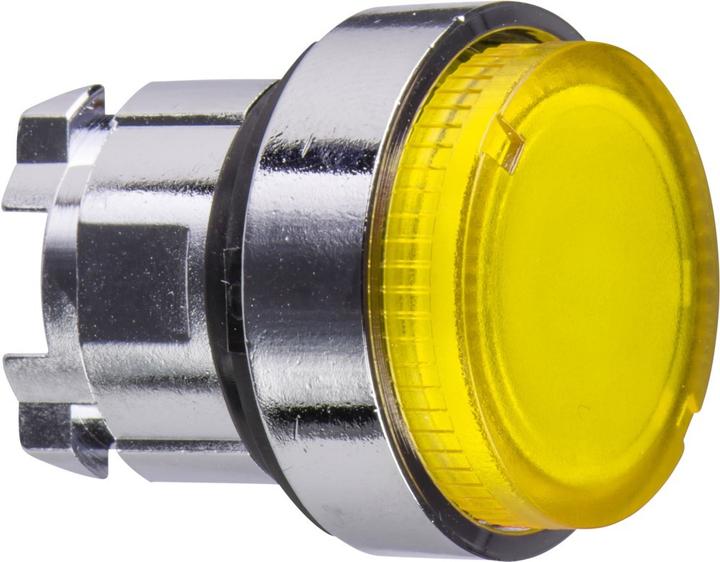

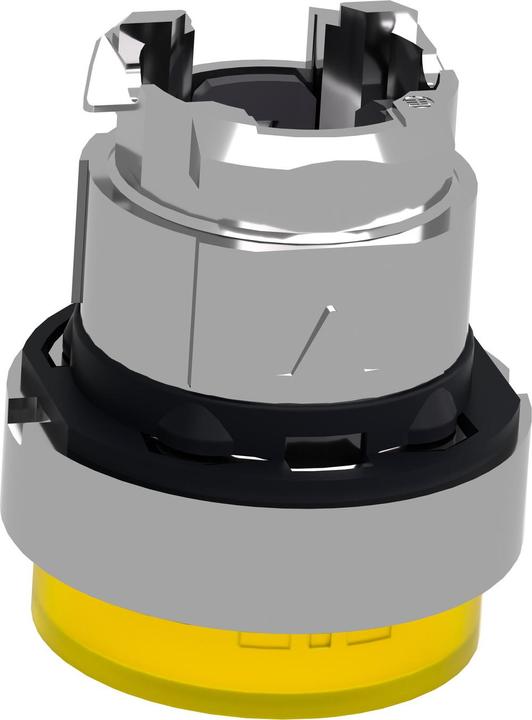

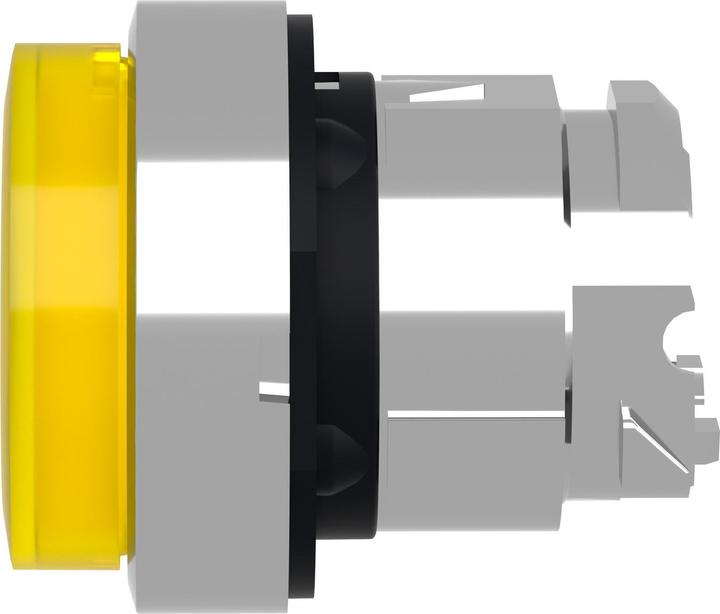

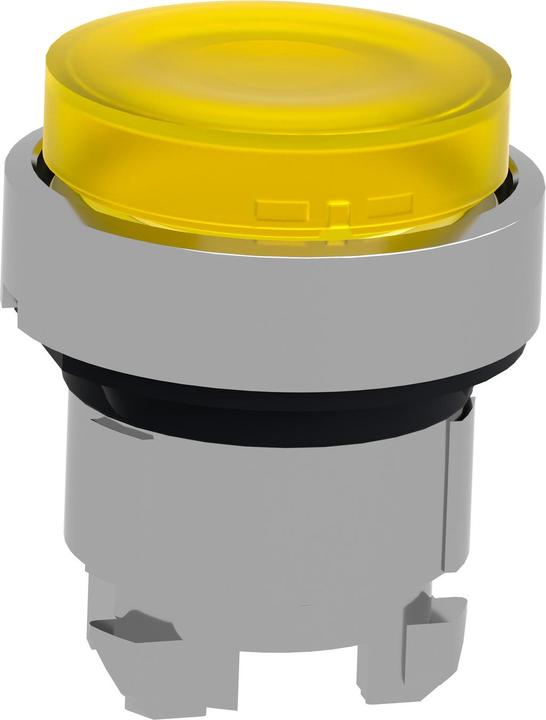

Schneider Electric front element ZB4BW183
Manufacturer: Schneider Electric
Designation: Front element ZB4, 22mm
Type: ZB4BW183
Colour of knob: Yellow
Number of command positions: 2
Design of lens: Round
Hole diameter: 22.5 mm
Design of knob: High
Suitable for lighting: Yes
With protective cover: No
Labelling: No
Switching function latching: No
Keying: Yes
With front ring: Yes
Material of front ring: Metal
Colour of front ring: Chrome
Protection class (IP), front side: IP66
Protection class (NEMA), front side: Other
Schneider Electric front element ZB4BW183: further details
Front element for illuminated pushbutton Harmony XB5. Push-button end without detent. Installation dimension 22mm diameter. Protection class up to IP69K. Colour: Yellow. This illuminated pushbutton head for integrated LED offers a versatile interface for controlling your machines. The illuminated head and clear colours make it visually distinct from a distance.
Colour | Silver, Yellow |
Mounting type | Built-in installation |
Diameter | 22.50 mm |
Item number | 34991366 |
Manufacturer | Schneider Electric |
Category | Buttons + Switches |
Manufacturer no. | ZB4BW183 |
Release date | 17.5.2023 |
External links |
Colour | Silver, Yellow |
Exact colour description | Chrome, Yellow |
Material group | Metal |
Material | Metal |
Operating mode | Key |
Number of actuation levels | 2x |
Mounting type | Built-in installation |
LED colour | Yellow |
Protection type (IP code) | IP66 |
Switch + push-button Additional function | Lighting |
Country of origin | France |
Manufacturer commitment | RE100, SBTi |
CO₂ emissions | 95.84 kg |
Climate contribution | CHF 0.57 |
Items per sales unit | 1 pcs. |
Scope of delivery | Front element |
Diameter | 22.50 mm |
