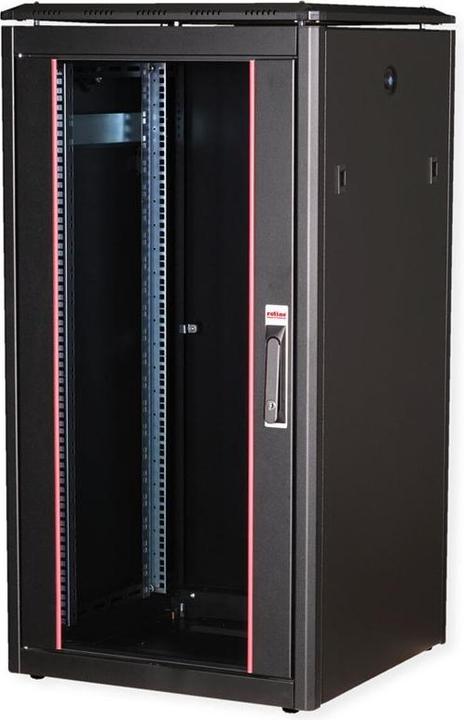

Roline 19-Zoll Netzwerkschrank Pro 16 HE
16 RU, 19 inch rackfree shipping
Roline 19 inch network cabinet Pro 16 U with glass door. The network cabinets in the Roline Pro series were developed to enable particularly convenient and flexible network cabling. With brush inlets in the roof and base area (from 26 U and 800 mm cabinet width), a slide-on inlet in the base chassis with foam rubber seal and brush strips above and below the rear door (from 26 U), they offer a wide range of possible uses for various application scenarios. Vertical cable ducts with cover, installed next to the profile rails (from 800 mm enclosure width), complete the design. A stepped, removable cover with ventilation slots improves air circulation and allows easy installation of a fan module. Two pairs of galvanised 19" profile rails are installed inside, which can be read in both directions and are adjustable in depth. They are also connected to additional depth struts in the enclosure. Each enclosure consists of a robust steel construction with a material thickness of up to 1.5 mm sheet steel.
Type | Floor standing cupboard |
Usable installation depth | 740 mm |
Protection type (IP code) | IP20 |
Ventilation | Passive |
Server cabinet features | Door, Lockable, Removable side panels, Safety glass |
Item number | 47381496 |
Manufacturer | Roline |
Category | Server cabinets |
Manufacturer no. | 26.21.0217 |
Release date | 24.7.2024 |
Sales rank in Category Server cabinets | 29 of 4338 |
Colour | Black |
Exact colour description | RAL 9005 Deep black |
Material group | Metal |
Material | Steel |
Type | Floor standing cupboard |
Rack size | 19 inch rack |
Form factor size | 16 RU |
Usable installation depth | 740 mm |
Max. weight | 600 kg |
Protection type (IP code) | IP20 |
Wall thickness | 1.50 mm |
Ventilation | Passive |
Server cabinet features | Door, Lockable, Removable side panels, Safety glass |
Country of origin | Germany |
CO₂-Emission | |
Climate contribution |
Scope of delivery | 19-inch network cabinet Pro 16 U, Earthing cable set, Installation kit, Installation sides |
Height | 898 mm |
Width | 600 mm |
Length | 800 mm |
Weight | 48 kg |
Length | 90 cm |
Width | 80 cm |
Height | 60 cm |
Weight | 48 kg |
