Nuasol Adjustable bracket

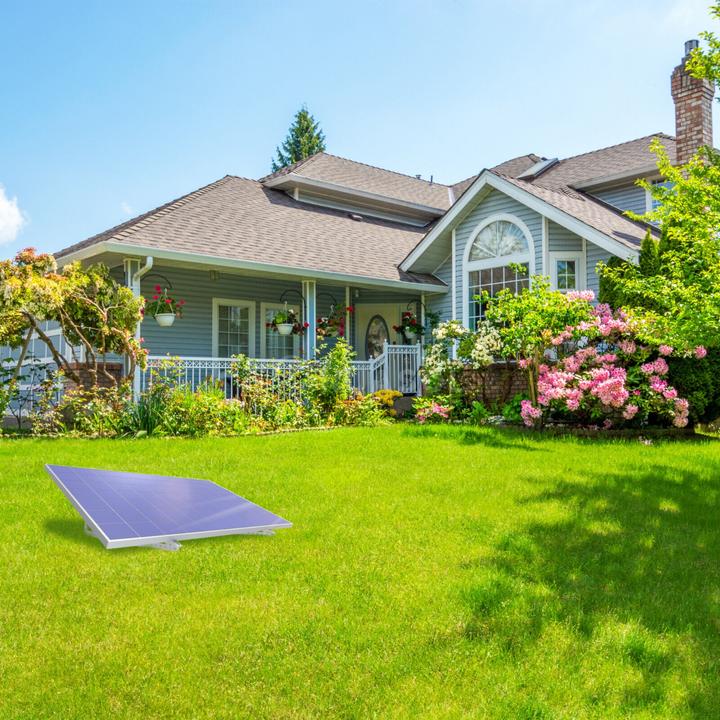

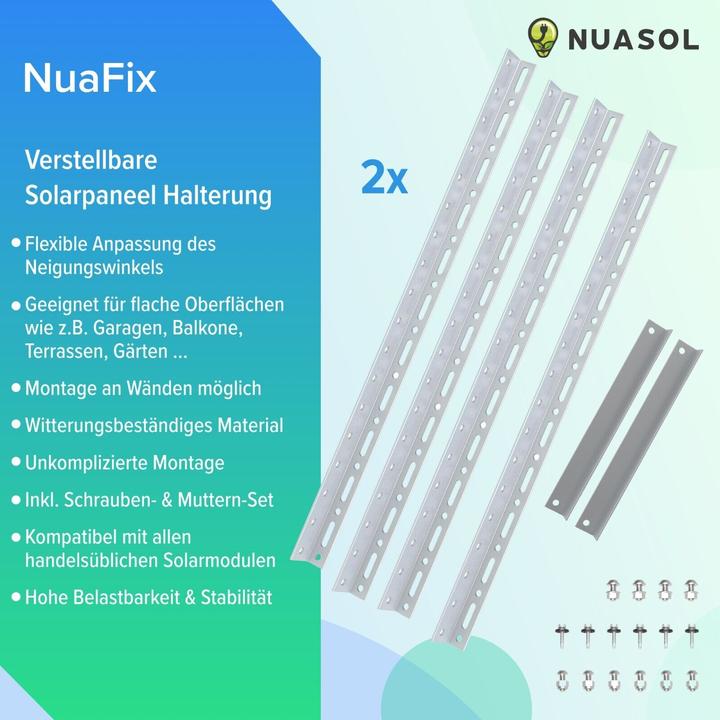

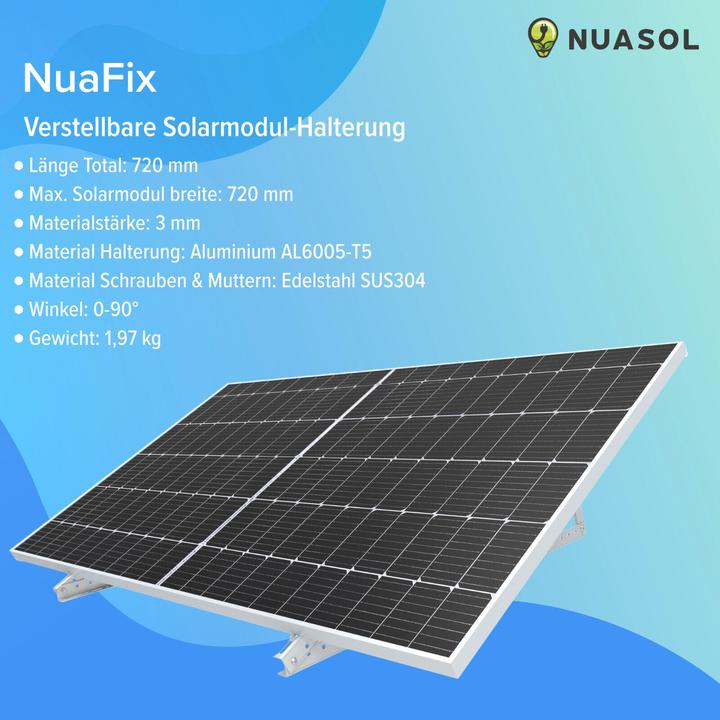

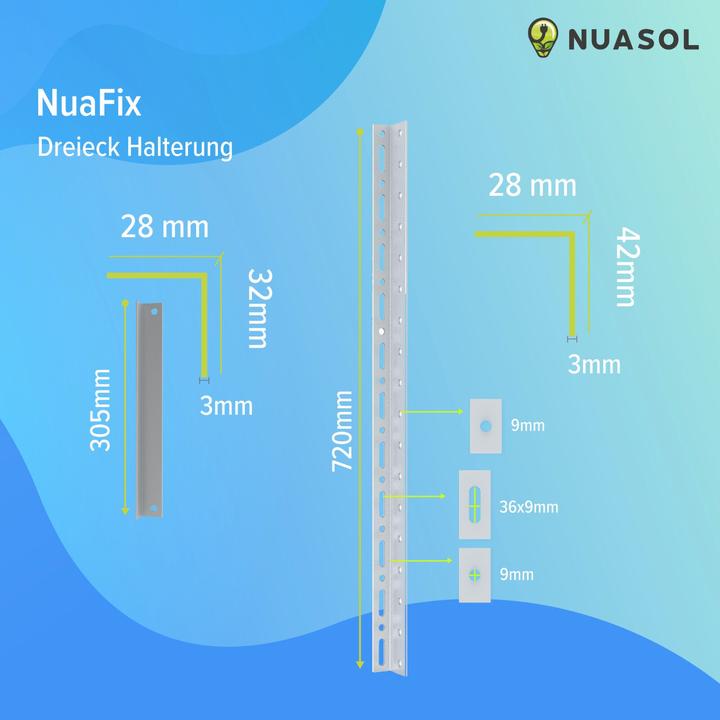

NuaFix - 2x Triangle Solar Panel Mounts 720 mm. Tilt angle 0-90°. NuaFix offers you various mounting materials for installing your mini PV system or balcony power plant. From eye bolts to roof hooks or adjustable mounts to Z-brackets, you will find the right mounting materials for every type of installation with us. The weather-resistant adjustable PV system mounts made from AL6005-T5 aluminum are easy to attach to the solar module, allowing your solar system to be ready for use in no time. Stainless steel SUS304 screws and nuts are included in the delivery. The adjustable mounts are suitable for installations on flat surfaces such as garages, gardens, and balconies. Convenient adjustment of the tilt angle to maximize yield. NuaFix - Flexible mounts 0-90°. Dimensions of the long arm (WxDxH): 28 x 42 x 3 mm. Length of the long arm: 720 mm. Length of the crossbar: 305 mm. Dimensions of the crossbar (WxDxH): 28 x 32 x 3 mm. Max. solar module width: 720 mm. Material thickness: 3 mm. Dimensions of mounting holes on the long arm: 9 mm / 36 x 9 mm. Number of holes: 16. Mount material: Aluminum AL6005-T5. Material of screws and nuts: Stainless steel SUS304. Angle: 0-90°. Weight: 1.85 kg.
