Nuasol Adjustable bracket

NuaFix - Triangular Solar Panel Mounts with an Angle of 0-90° and a Length of 720 mm

NuaFix offers a variety of mounting materials for securing your mini PV system or balcony power plant. From hanger bolts to roof hooks, adjustable brackets to Z-brackets, you will find the right mounting material for every type of installation.

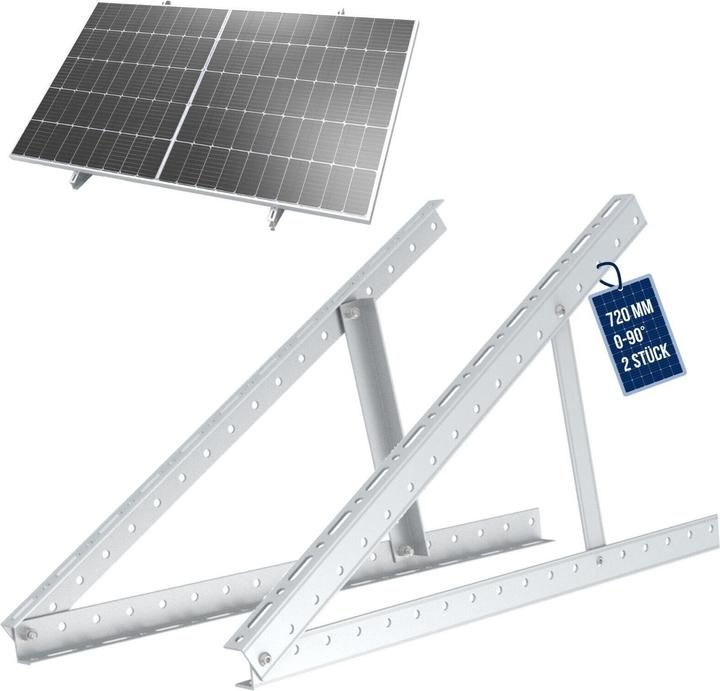

Triangular Solar Panel Mounts 0-90°

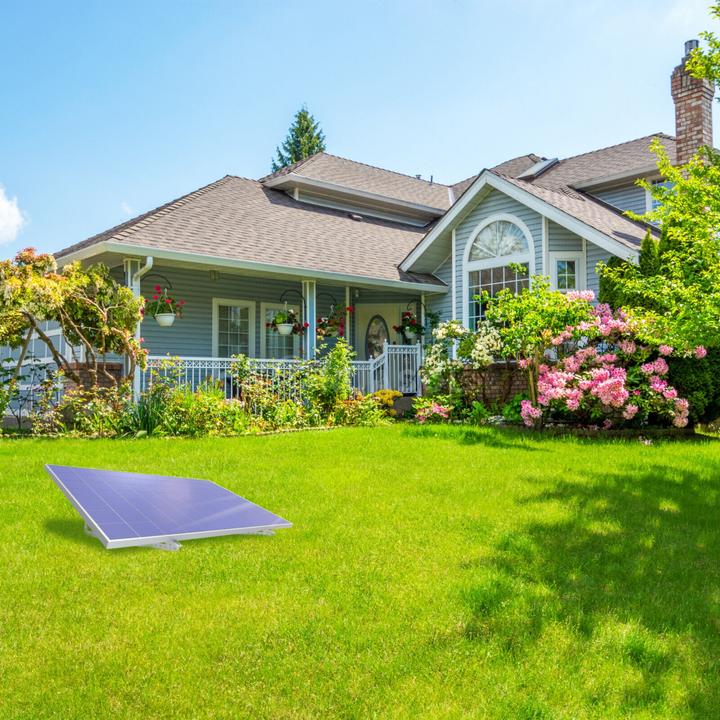

Our weatherproof, adjustable PV system mounts made from AL6005-T5 aluminum can be easily attached to the solar panel, making your solar system ready for use in no time. SUS304 stainless steel bolts and nuts are included. Our adjustable mounts are suitable for installations on flat surfaces such as garages, gardens, and balconies. They allow for convenient adjustment of the tilt angle to maximize energy yield.

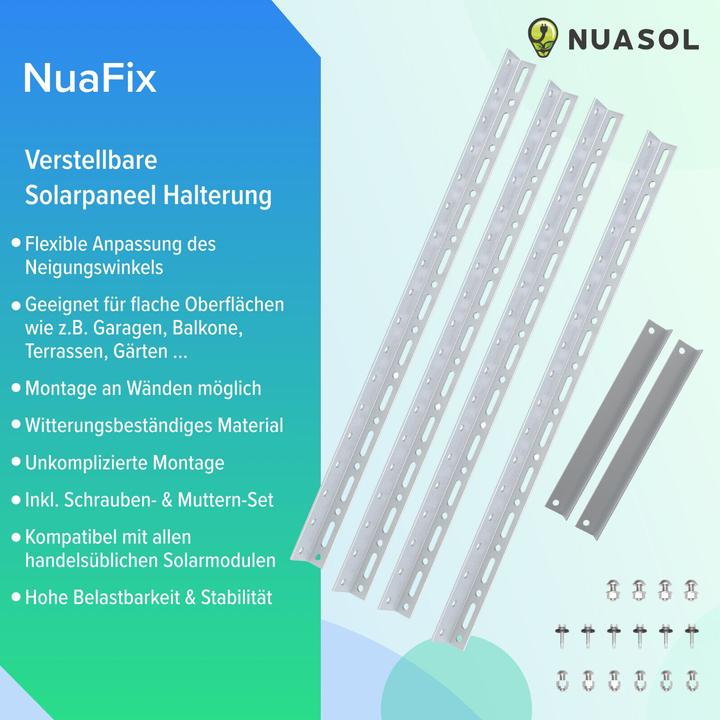

NuaFix - Flexible Mounts 0-90°:
• Dimensions of long beam (WxDxH): 28 x 42 x 3 mm
• Length of long beam: 720 mm
• Length of cross brace: 305 mm
• Dimensions of cross beams (WxDxH): 28 x 32 x 3 mm
• Max. width of solar module: 720 mm
• Material thickness: 3 mm
• Dimensions of mounting holes for long beam: 9 mm / 36 x 9 mm
• Number of holes: 16
• Material of the mount: Aluminum AL6005-T5
• Material of bolts & nuts: Stainless steel SUS304
• Angle: 0-90°
• Weight: 1.85 kg

Technical Data:
NuaFix
• Dimensions of long beam (WxDxH): 28 x 42 x 3 mm
• Length of long beam: 720 mm
• Length of cross brace: 305 mm
• Dimensions of cross beams (WxDxH): 28 x 32 x 3 mm
• Max. width of solar module: 720 mm
• Material thickness: 3 mm
• Dimensions of mounting screws for long beam: 9 mm / 36 x 9 mm
• Solar panel mounts 0-90°
• Material of the mount: Aluminum AL6005-T5
• Material of screws & nuts: Stainless steel SUS304
• Angle: 0-90°
• Suitable for: Flat surfaces
• Color: Silver.
