HellermannTyton KS screw connection

Cable hole, 8.20 cm
CHF2426.83/1m
Ratings
BrandMore from HellermannTyton
Delivered between Wed, 23.7. and Wed, 6.8.
10 items in stock at supplier
free shipping

Product details

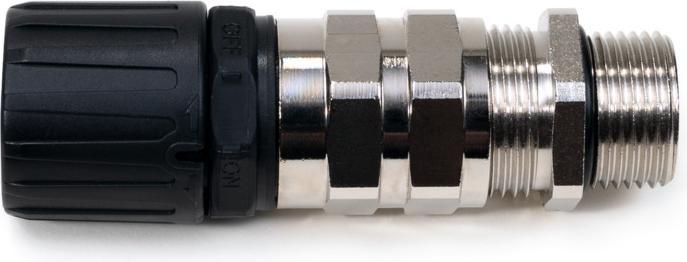

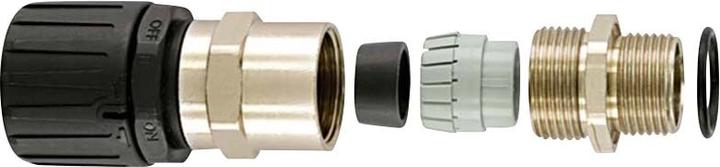

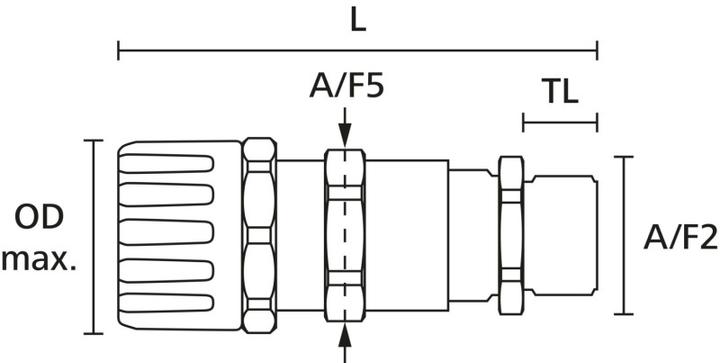

HellermannTyton KS cable gland HG21-SCG-M20 Manufacturer :HellermannTyton Designation :KS cable gland IP66 Type :HG21-SCG-M20 Nominal diameter :21 mm Nominal size in inches :other Protection class (IP) :IP66 Version :straight Rotatable thread :yes Design :male thread Connection type :snap connection Thread type :metric Thread connection size :M20 x 1.5 Threads per inch :1 Thread material :brass Thread length :12 mm Overall length :82 mm Overall height :32 mm Material :other Material seal :thermoplastic elastomers (TPE) Largest outer diameter of the conduit :32 mm Colour :black Perm. in combination with protective conduit CSA :no Transparent :no Perm. in combination with protective conduit UR :yes Perm. in combination with protective conduit to DIN EN 61386-23 :no Perm. in combination with protective conduit Lloyd\'s Register :no Operating temperature :-50..135 °C Perm. in combination with protective conduit VdTÜV/GGVSEB :no HellermannTyton KS cable gland HG21-SCG-M20: Further details Strain relief Cable seal for IP68 and IP69k High tensile strength Very good resistance to solvents and oils Halogen-, sulphur- and phosphorus-free Straight cable gland with strain relief and cable seal. EAN: 4031026325965.

Key specifications

Height
32 mm
Exact colour description
Black
Material
Thermoplastic elastomers (TPE)
Item number
36752605

General information

Manufacturer
HellermannTyton
Category
Cable trunking
Manufacturer no.
166-21503
Release date
28.6.2023

Colour

Colour
Black
Exact colour description
Black

Material

Material group
Metal
Material
Thermoplastic elastomers (TPE)

Cable duct properties

Cable duct type
Cable hole
Fastener
Snap lock

Safety

Protection type (IP code)
IP66

Origin

Country of origin
United Kingdom

Voluntary climate contribution

CO₂-Emission
Climate contribution

Scope of delivery

Items per sales unit
10 pcs.

Product dimensions

Height
32 mm
Diameter
21 mm
Length
8.20 cm
