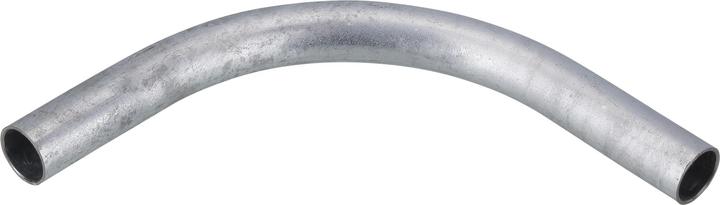

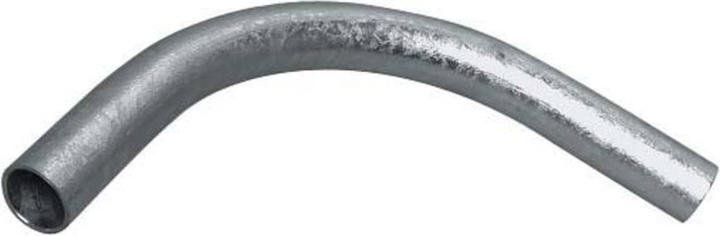

Fränkische Rohrwerke Steel pipe SBS-E-V 20 galvanised Plug-in elbow M20 SBS-E-V20 galvanised for
Cable hole, 31 cm, Minimum order 2Supplied by
Conrad CH
Free shipping starting at 50.–
Fränkische Steel Pipe Elbow SBS-E-V 20 Hot-Dip Galvanized. Manufacturer: Fränkische. Designation: Steel pipe elbow for Staro plug-in ESV. Type: SBS-E-V 20 hot-dip galvanized. Material: Metal. Material quality: Steel. Surface protection: Hot-dip galvanized. Quality of surface coating: Other. Polished surface: No. Brushed surface: No. Halogen-free: Yes. For nominal pipe diameter: 20 mm. Diameter: 20 mm. Design: Plug-in. With socket: No. Two-part: No. With inspection opening and cover: No. Color: Zinc. Flexible: No. Radius: 80 mm. Angle of the elbow: 90 °. Fränkische Steel Pipe Elbow SBS-E-V 20 hot-dip galvanized: further details. SBS-E-V is a hot-dip galvanized steel pipe elbow made of rolled steel with zinc coating according to EN ISO 1461. This elbow is used to connect the Staro plug-in steel pipe ESV. The advantages include very high compressive strength and extreme temperature resistance. VDE 0605 DIN EN 61386-21 classification: 55571. Minimum compressive strength: 4000N/5cm.
Height | 150 mm |
Width | 21 cm |
Exact colour description | Cornet |
Material | Metal |
Item number | 22654081 |
Manufacturer | Fränkische Rohrwerke |
Category | Cable trunking |
Manufacturer no. | 20560020 |
Release date | 13.10.2022 |
External links | |
Minimum order | 2 |
Colour | Silver |
Exact colour description | Cornet |
Material group | Metal |
Material | Metal |
Cable duct type | Cable hole |
Version | Rigid |
Fastener | No closure |
Country of origin | China |
CO₂-Emission | |
Climate contribution |
Items per sales unit | 25 pcs. |
Height | 150 mm |
Width | 21 cm |
Diameter | 20 mm |
Length | 31 cm |
Weight | 154 g |
