Fränkische Rohrwerke FRAE inner seal

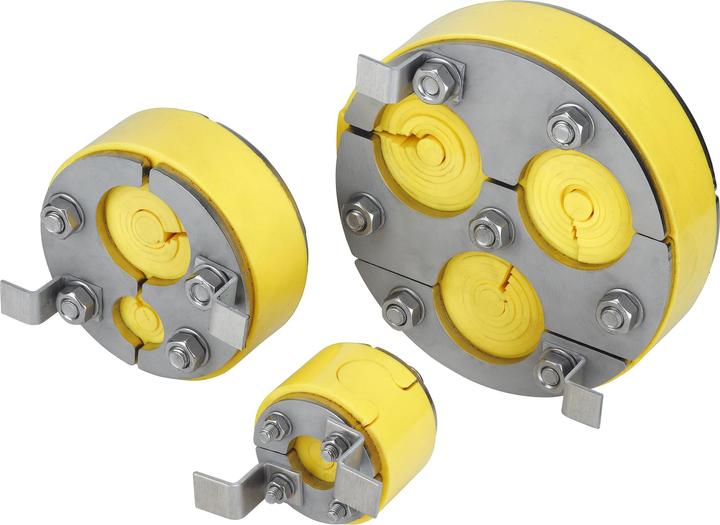

Fränkische cable seal Kabu-IN 90 7-36 Manufacturer :Fränkische Designation :Cable seal Type :Kabu-IN 90 7-36 Design :Press ring seal Cable diameter :7..36 mm Pipe diameter :90 mm Length :64 mm Inside diameter before shrink :75 mm Inside diameter after shrink :79 mm Sealing width (depth) :30 mm Number of cables :1 Mounting type :Core drillings/pipes Pressure medium :Gas Pressure :0.5 bar Disassembly possible :yes Cable bundling possible :no Fränkische Kabelabdichtung Kabu-IN 90 7-36: Further details Kabu-IN is a cable seal for one or more cables made of a soft thermoset elastomer in yellow, from NW 90 a solid rubber core and stainless steel press flanges. This gas and pressurised water-tight inner seal is used for Kabuflex® R plus pipes for building entries. The advantage is the soft surface, which creates a secure seal against gas and water pressure. Thanks to its excellent adhesive properties, the Kabu-IN press ring sealing insert sits securely in the pipe against pressurised water and gas. Installation can be carried out successfully using the visual contact indicator (yellow bead) on the edges of the press flange. To ensure a secure seal, make sure that the inner seal is positioned in the area of the unfinished floor or screed or the Kabu-Seal outer seal. EAN: 4013960537291.
