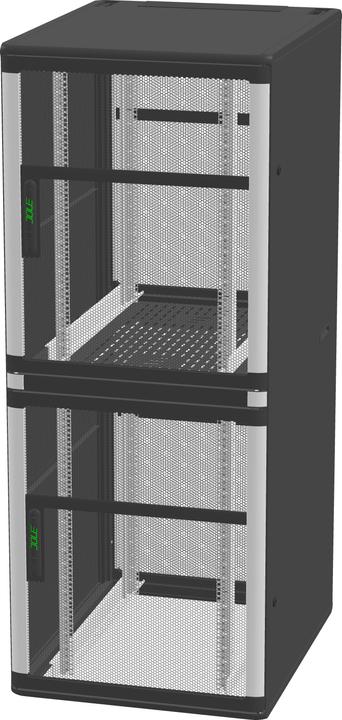

Enoc 19" server cabinet

S1 C2 81020-S PREMIUM aluminium hybrid colocation enclosure 2x20U WxDxH 800x1000x2000 - Plug-in and intelligently bolted aluminium frame construction with corner pieces made of injection-moulded zinc. - 2 vertical system grooves per aluminium profile for mounting accessories in the enclosure width and depth. - 2 ventilated sheet steel doors at the front and rear, approx. 85% perforated, enclosed in an aluminium profile frame. - Ergonomic swivelling lever handles with security locking cylinder and keys, can be converted to other locking systems with an adapter, e.g. for DIN profile half cylinders (30/10). - Easy removal of the door thanks to internal quick-release fastener. - Door opening angle 180° for single enclosure installation, door hinge optionally left or right. - Side panels made of sheet steel, easily removable and lockable from the inside with integrated recessed grips for better handling. - Separate 20 U sections with fixed base with ventilation slots and cut-outs for cable entry/passage. - Modular roof structure equipped with a cable entry module including rear brush strip and dummy modules. Easy replacement with ventilation, fan or other cable entry modules is possible. - Modular floor frame structure, open with front and rear system groove. Simple retrofitting of privacy screens, filter panels, base plate packages and plinth packages is possible. - 19 mounting level (482.6 mm) 2x 20 U with hole pattern to IEC 60297-1 and 2, mounted at the front and rear on 4 multifunctional depth struts in the enclosure. - Labelling of the height units ( U ) numbered consecutively from top to bottom starting with 1 and readable from the front. Infinitely adjustable in glide mode over the entire enclosure depth by loosening a TX T25/M5 quick-release fastener. - All depth struts with punched dimensional grid for quick and easy alignment of the 19 profile. - Central earth connection via M5 threaded bolt - Surface treatment: Enoc System textured paint black RAL 9005.
