Enoc 19" Basic

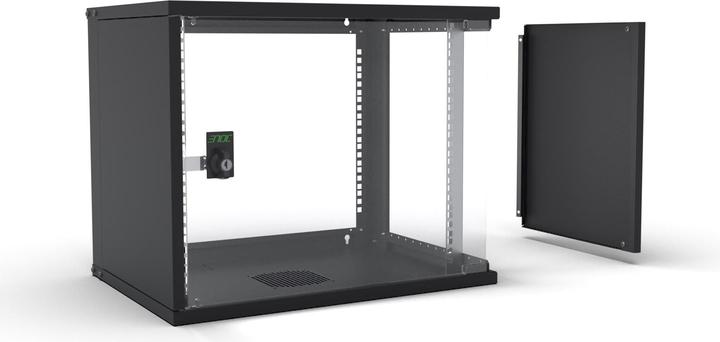

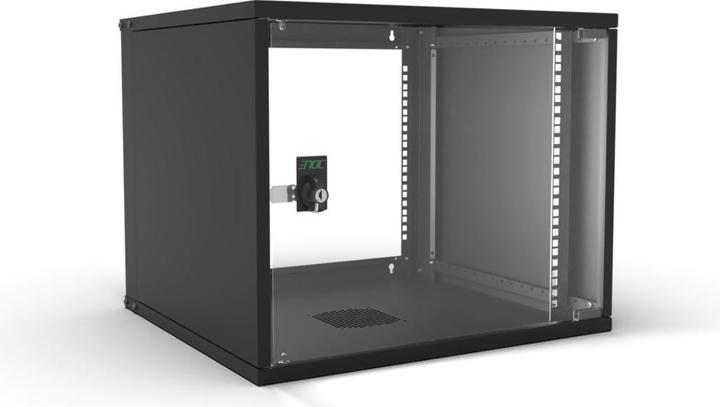

Enoc 19" Basic Wall Cabinet W3 9-4-S

Manufacturer: Enoc
Designation: 19" Basic Wall Cabinet 9U, 400mm Deep, bw
Type: W3 9-4-S
Mounting level: Front
Design of profile rail: L-shaped
Number of doors: 1
Type of ventilation: Passive
Width: 550 mm
Height: 448 mm
Depth: 400 mm
Number of height units (HE): 9
With roof plate: Yes
With earthing: No
With front door: Yes
With side panels: Yes
Can be dismantled: Yes
Material: Steel
Finish: Powder-coated
Colour: Black
RAL number: 9005
Protection class (IP): IP20

Further details:
W3 9-4-S Basic Wall Cabinet 9 U 550x400x448mm (WxDxH) enclosure manufactured from sheet steel. Glass door made of safety glass, door opening angle 110°, including rotary handle LS 15 with standard lock cylinder and keys, exchangeable for a rotary handle LS 46 to accept a DIN profile half cylinder. Removable side panels. Roof and base with cut-out for cable entry, including edge protection, brush strip BL-W3 optionally available as accessory. Passive ventilation in roof and base. 19" profile pair (482.6 mm) 9 U mounted in the front of the enclosure, can be adjusted in steps of 25 mm over the enclosure depth. Mounting of an additional 19" mounting level (482.6 mm) is possible (see accessories). 19" hole grid 9 U integrated in the rear area of the wall cabinet, for mounting e.g. cable clamp rails or other accessories. Mounting holes for wall mounting at the rear. Open at rear, rear panel available as accessory. Maximum static load up to 30 kg. Protection class IP 20. Surface finish: Textured lacquer ENOC System Black RAL 9005.
