Product details

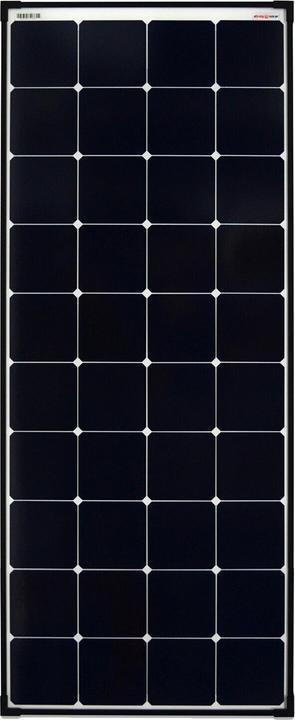

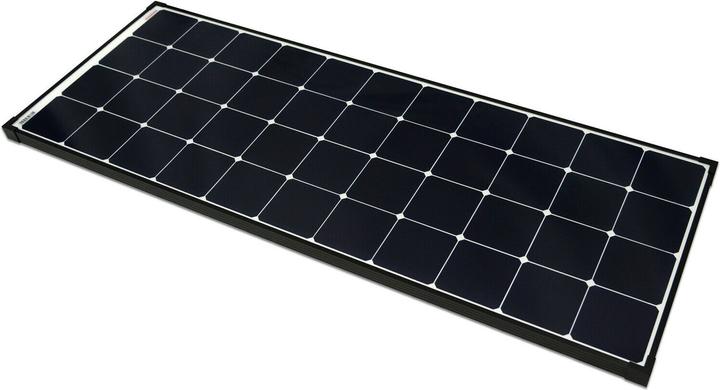

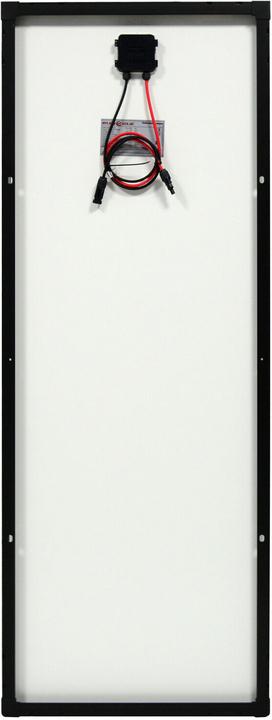

High-quality A-grade solar cells from SunPower. Very high module efficiency of up to nearly 24%. The surface is made of tempered ESG solar glass with a weather-resistant coating. It features a corrosion-resistant black aluminum frame for extended outdoor use, complete with pre-drilled mounting screws. The IP68 junction box contains a 90 cm long 4 mm² double-insulated solar cable and a solar connector. Two integrated bypass diodes minimize power loss in shaded conditions. A special anti-reflective coating allows for higher light absorption. The white back minimizes heat effects and energy losses. This product is lighter and smaller than conventional solar modules.
Solar panel type | Solar panel |
Cell type | Monocrystalline |
Solar panel design | Permanently installed, Rigid |
Nominal power | 150 W |
Rated current (MPP) | 6.10 A |

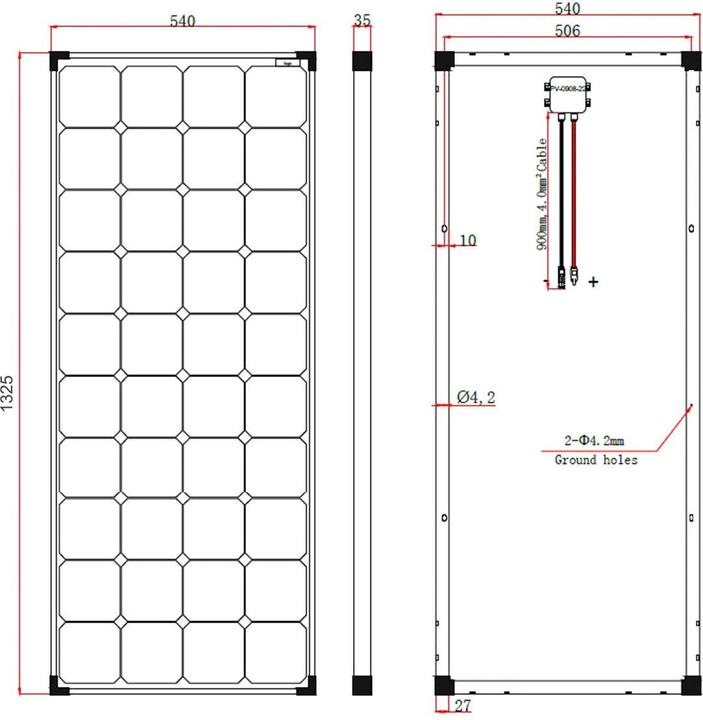

Length | 132.50 cm |
Width | 54 cm |
Documents |
Item number | 23539954 |
Manufacturer | Enjoy solar |
Category | Solar panels |
Release date | 20.12.2022 |
Frame colour | Black |
Material group | Glass, Metal |
Material | Aluminium, Solar glass |
Solar panel type | Solar panel |
Plug type | MC4 |
Protection type (IP code) | IP68 |
Cell type | Monocrystalline |
Solar panel design | Permanently installed, Rigid |
Nominal power | 150 W |
Voltage (MPP) | 24.80 V |
Rated current (MPP) | 6.10 A |
Short circuit current | 6.46 A |
Open circuit voltage (UMPP) | 29.30 V |
Number of cells | 40x |
Efficiency | 24% |
Cable length | 0.90 m |
Country of origin | China |
Length | 132.50 cm |
Width | 54 cm |
Height | 3.50 cm |
Weight | 7.95 kg |
Length | 135.60 cm |
Width | 58.60 cm |
Height | 10.10 cm |
Weight | 9.10 kg |
Specifications may include unverified machine translations.
