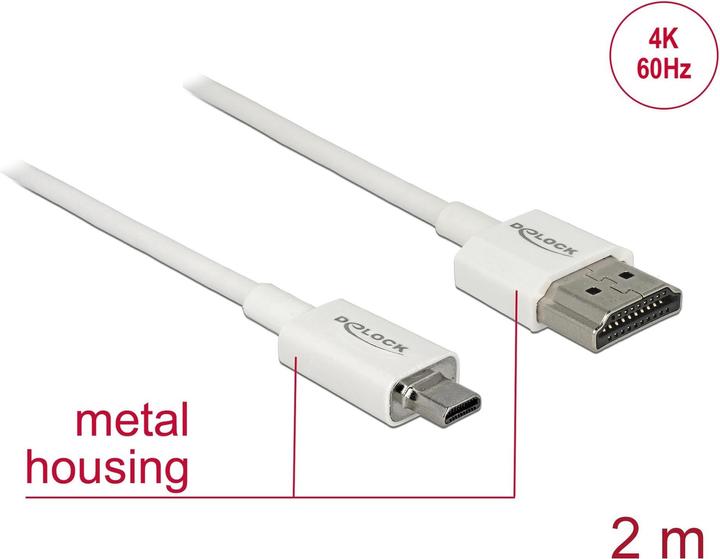

Delock HDMI (Typ A) — micro HDMI (Typ D)

The Delock High Quality High Speed HDMI with Ethernet Cable allows for connection between a camera or tablet with a Micro HDMI interface and a monitor or TV with an HDMI-A socket. It is particularly distinguished by its slim diameter and short connectors. The triple-shielded cable combines fast data transmission with audio, video, and Ethernet connectivity in one.

With support for a maximum bandwidth of 18 Gb/s, it can transmit content in 4K resolution (maximum frame rate of 60 Hz), 3D content in 4K resolution (maximum frame rate of 30 Hz), as well as content in the 21:9 cinema aspect ratio. The cable enables the simultaneous transmission of two video channels to display video streams for two users on one screen, as well as the simultaneous transmission of up to four audio channels. The quality of audio transmissions is significantly enhanced by a sampling rate of up to 1536 kHz.

Special features:

• Extra short connectors with full metal shielding
• Particularly slim cable diameter
• Connectors:
• 1 x High Speed HDMI-A 19 Pin plug
• 1 x High Speed HDMI Micro-D 19 Pin plug
• High Speed HDMI with Ethernet (HEC) specification
• Wire gauge: 36 AWG
• Cable diameter: approx. 3.2 mm
• Cable construction: twisted
• Copper wire
• Gold-plated contacts
• Triple-shielded cable
• Metal housing
• Transmission of audio and video signals
• Data transfer rate of up to 18 Gb/s
• Resolution up to 3840 x 2160 @ 60 Hz (depending on the system and connected hardware)
• 3D support: up to 1920 x 1080 @ 60 Hz; 3840 x 2160 @ 30 Hz (depending on the system and connected hardware)
• Supports 21:9 cinema aspect ratio
• Supports 1080p HFR (High Frame Rate) 3D
• Up to 120 Hz refresh rate
• Supports the simultaneous transmission of 2 video channels.
