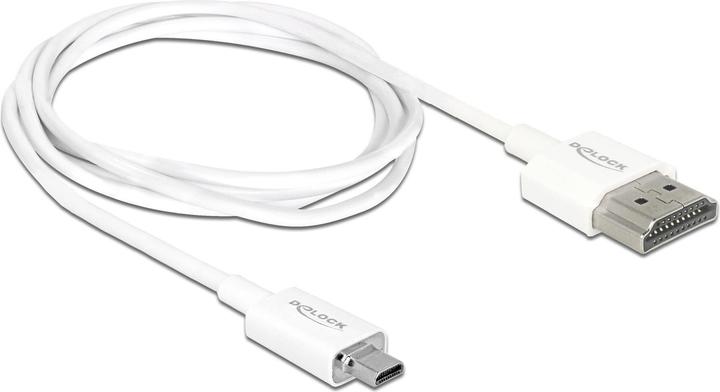

Delock HDMI (Typ A) — micro HDMI (Typ D)

The Delock High Quality High Speed HDMI with Ethernet Cable allows for the connection between a camera or tablet with a Micro HDMI interface and a monitor or TV with an HDMI-A port. It is particularly distinguished by its small diameter and short connectors. The triple-shielded cable combines fast data transmission with audio, video, and Ethernet connectivity in one. With support for a maximum bandwidth of 18 Gb/s, it can display content in 4K resolution (maximum frame rate of 60 Hz), 3D content in 4K resolution (maximum frame rate of 30 Hz), as well as content in the 21:9 cinema aspect ratio. The cable enables the simultaneous transmission of two video channels to present video streams for two users on one screen, as well as the simultaneous transmission of up to four audio channels. The quality of audio transmissions is significantly improved by a sampling rate of up to 1536 kHz.

Extra short connectors with full metal shielding
Especially small cable diameter

Connections: 1 x High Speed HDMI-A 19 Pin plug, 1 x High Speed HDMI Micro-D 19 Pin plug
High Speed HDMI with Ethernet (HEC) specification
Wire gauge: 36 AWG
Cable diameter: approx. 3.2 mm
Cable construction: twisted
Copper wire
Contacts with gold plating
Triple-shielded cable
Metal housing
Transmission of audio and video signals
Data transfer rate up to 18 Gb/s
Resolution up to 3840 x 2160 @ 60 Hz (depending on the system and connected hardware)
3D support: up to 1920 x 1080 @ 60 Hz; 3840 x 2160 @ 30 Hz (depending on the system and connected hardware)
Supports the 21:9 cinema aspect ratio
Supports 1080p HFR (High Frame Rate) 3D
Up to 120 Hz refresh rate
Supports the simultaneous transmission of 2 video channels to use one screen for two viewers
Supports color sampling in 4:2:0 format (original format of Blu-Ray, DVD, and more).
