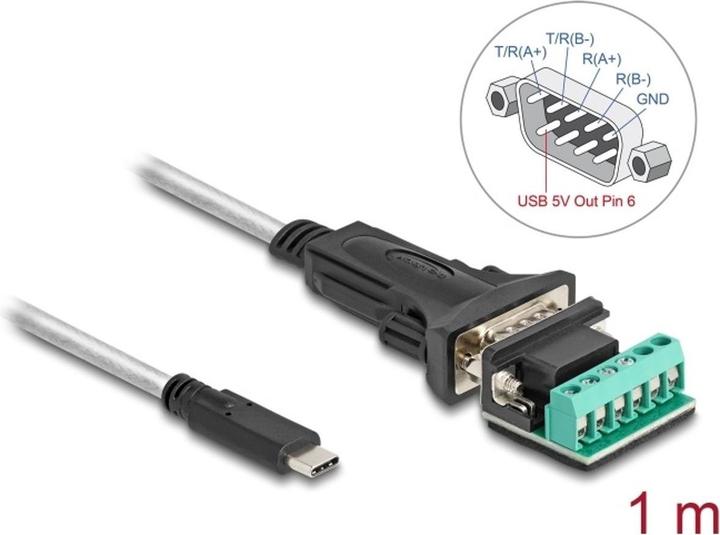

Delock Adapter USB Type-C to 1 x serial RS-422/485 plug

This USB Type-C 2.0 to serial adapter by Delock offers a standard RS-422 and RS-485 connection for measuring devices, POS systems, printers, modems, IoT devices, and more.

The terminal block is suitable for mounting in PC housings and for any solderless cable connection with RS-422 or RS-485 interface.

External devices can optionally be supplied with 5 V voltage via the terminal block.

Technical data:

• Connections:

Adapter:
1 x USB Type-C 2.0 plug
1 x serial RS-422/485 D-Sub 9 pin plug with screws

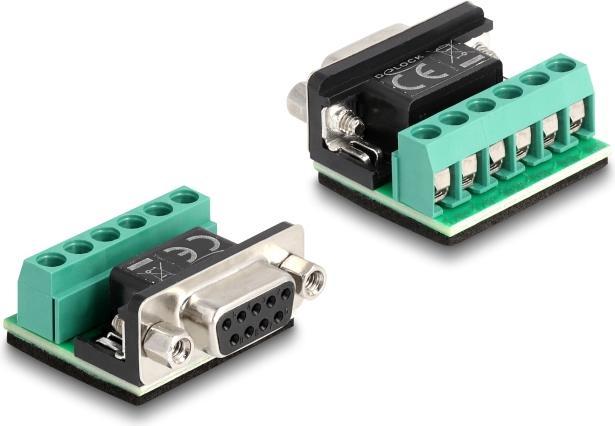

Terminal block:
1 x serial RS-422/485 D-Sub 9 pin socket with nuts
1 x 6 pin terminal block

• Terminal block: T/R+, T/R-, RXD+, RXD-, GND, VCC
• Chipset: FTDI FT232R
• Data transfer rate up to 921.6 Kbps
• RS-422/485 terminating resistor: 120 Ω
• Cable length including connections: approximately 1 m

System requirements:

• Linux Kernel 5.11 or higher
• Mac OS 11.6 or higher
• Windows 8.1/8.1-64/10/10-64/11
• Windows Server 2019
• PC or notebook with a free USB Type-C port

Package contents:

• USB 2.0 to 1 x serial RS-422/485 adapter
• Terminal block adapter
• Operating instructions.
