Delock Adapter USB 2.0 Type-C to 1 x serial RS-422/485 connector

This USB Type-C to serial adapter from Delock provides a standard RS-422 and RS-485 connection for measuring devices, POS systems, printers, modems, IoT devices, and more.

The terminal block is suitable for mounting in PC cases and for any solder-free cable connection with RS-422 or RS-485 interface.

External devices can optionally be powered through the terminal block with 5 V voltage.

Technical specifications:

• Connections:

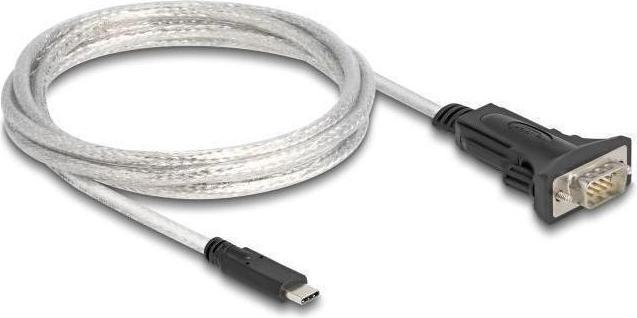

Adapter:
1 x USB 2.0 Type-C plug
1 x serial RS-422/485 D-Sub 9-pin plug with screws

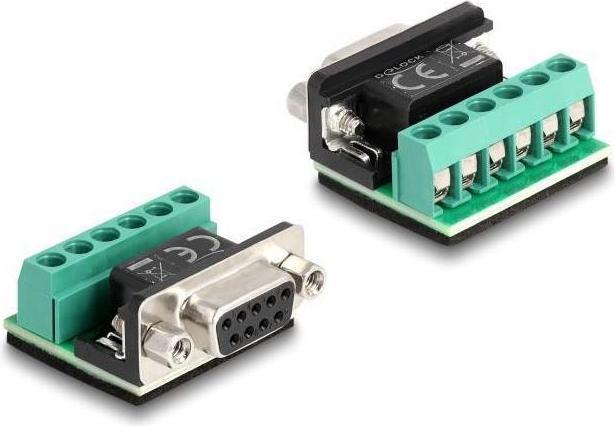

Terminal block:
1 x serial RS-422/485 D-Sub 9-pin socket with screws
1 x 6-pin terminal block

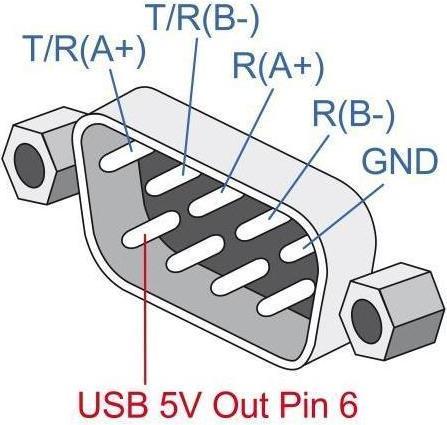

• Terminal block: T/R+, T/R-, RXD+, RXD-, GND, VCC
• Chipset: FTDI FT232R
• Data transfer rate up to 921.6 Kbps
• Cable length including connectors: approx. 2 m

System requirements:

• Linux Kernel 5.11 or higher
• Mac OS 11.6 or higher
• Windows 8.1/8.1-64/10/10-64/11
• Windows Server 2019
• PC or notebook with a free USB Type-C port

Delivery includes:

• USB 2.0 to 1 x serial RS-422/485 adapter
• Terminal block adapter
• User manual.
