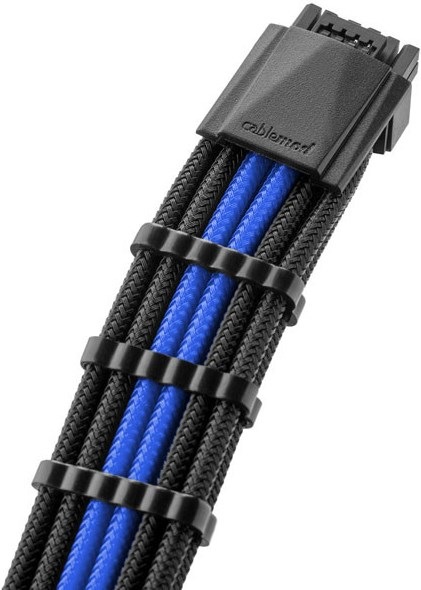

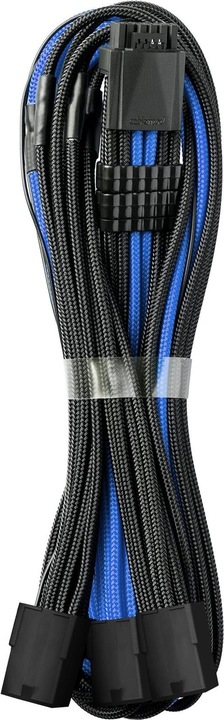

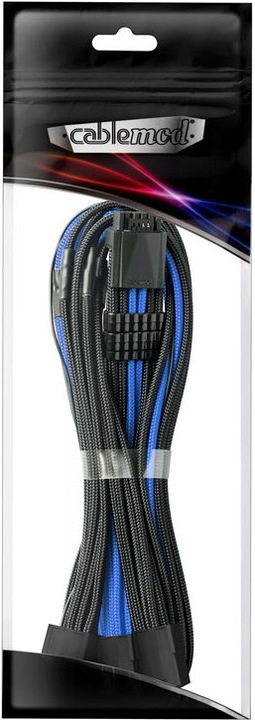

CableMod Pro ModMesh 12VHPWR to 3x PCI-e cable - 45cm, black/blue

NVIDIA's GeForce RTX 4000 series graphics cards utilize a new 16-pin connector (12+4-pin) with PCIe 5.0 standard for power supply. This connector is also known as the 12VHPWR connector. CableMod offers the Pro ModMesh 12VHPWR to 3x PCI-e cable, a 12VHPWR PCIe 5.0 adapter designed for power supplies without a native 12VHPWR connector.

The CableMod Pro ModMesh 12VHPWR to 3x PCI-e extension features high-quality ModMesh sleeving. This cable consists of 16AWG wires and is equipped with five pre-installed, closed cable combs.

Important Notes: For the 16-pin 12VHPWR to 3x 8-Pin PCIe cable to function correctly, all 8-pin connectors must be connected to the power supply. The distance between the graphics card connector and the side panel must be at least 4 to 4.5 cm. Additionally, the cable should only be bent at a distance of 35 mm from the connector on the GPU. Finally, ensure that the 12+4-pin connector is fully and securely inserted into the socket on the graphics card.

Technical Details:

• Length: 450 mm
• Color: Black / Blue
• Material: ModMesh
• Connectors:
• 1x 16-Pin 12VHPWR PCIe 5.0
• 3x PCIe-8-Pin.
