Bachmann Connection cable

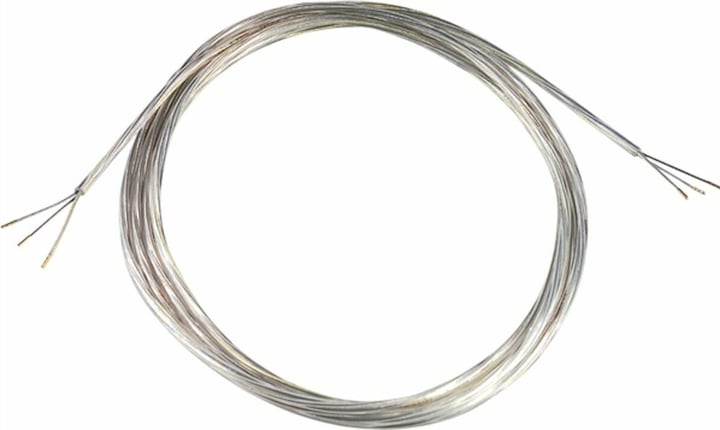

Bachmann connection cable transparent 133.080
Manufacturer: Bachmann
Designation: Connection cable transparent 5x1.5 qmm 1.5m
Type: 133.080
Connection 1: Wire end ferrule
Connection 2: Wire end ferrule
Plug-in connector system: No
System-bound: No
Number of cores: 5
Nominal conductor cross-section: 1.5 mm²
Length: 1.5 m
Sheath material: Polyvinyl chloride (PVC)
Temperature resistance: 105 to 180 °C
Rated voltage: 450 to 750 V
Frequency: 50 to 60 Hz
Sheath colour: Other
Coiled cable: No
With protective earth conductor: Yes
Protection class (IP): IP20
Oil-resistant according to EN 60811-404: No
With cord switch: No

Bachmann connection cable transparent 133.080: More details include double insulated cable FEP T180°C + PVC 105°C 450/750V transparent earth conductor thread, power cable 5x1.5 mm², length: 1.5 m, single in polybag, outer diameter: 8.2 +/- 0.2 mm. EAN: 4016514018215.
