APC Smart-UPS

3000 VA, 2700 W, Line-interactive UPS
6Ratings
BrandMore from APC
Delivered between Wed, 29.7. and Thu, 30.7.
More than 10 pieces in stock at supplier
free shipping

Product details

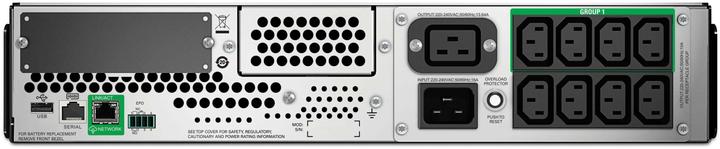

Schneider This APC Smart-UPS was designed for IT professionals and network administrators to ensure uptime and operational continuity. The network-interactive 3kVA, 2U, rack-mount UPS delivers pure sine wave power to support critical electronics during power outages. It features an IEC 320 C20 input, BS1363A British and protective contact CEE 7/EU1-16P input cable, 8 IEC 320 C13 and 1 IEC 320 C19 connectors, as well as 3 IEC bridging cables. It offers cloud-based remote monitoring of power supply, UPS firmware upgrades, remote diagnostics, and proactive email notifications with recommended actions. It includes a SmartSlot for an optional network management card that enables proper shutdown of physical servers, virtual machines, and HCI clusters via PowerChute Network Shutdown. The Smart-UPS comes with a 3-year warranty and the built-in lead-acid battery has a 2-year warranty. The UPS can be connected to EcoStruxure IT or centralized management platforms from third parties. It provides surge protection against lightning strikes, voltage sags, power outages, and overvoltages. It is compatible with a special, user-replaceable battery. The APC replacement battery cassette helps restore the UPS performance to its original specifications.

Electrical safety

Due to its high performance, this device requires a 16 Ampère socket (type 23). If no suitable wall socket is available, the conversion must be carried out by an authorised installer.

Key specifications

Model
19" rack
UPS protection functions
Overvoltage protection
Scope of application
Server room, Workplace + home use
Plug type
C13, C19
Operating time at full load
3.20 min
Operating time at half load
11.50 min
Battery type
Lead–acid battery

General information

Item number
9802398
Manufacturer
APC
Category
UPS
Manufacturer No.
SMT3000RMI2UC
Release date
26.9.2018
Sales rank in Category UPS
32 of 2803
May include power adapter
Yes

UPS properties

UPS type
Line-interactive UPS
Power output
2700 W
Output power capacity
3000 VA
Model
19" rack
Rack height units
2 U
shaft type
Sine wave

UPS functions

UPS protection functions
Overvoltage protection

Application range

Scope of application
Server room, Workplace + home use

Connections

USB ports
USB-A
Network connections
RJ45 (1x)
Data ports
RS-232 (1x)

Operating conditions

Maximum operating temperature
40 °C
Operating temperature
0 - 40 °C
Max. noise level
55 dB

Mains supply properties

Plug type
C13, C19
Input voltage
151 - 302 V
Min. input voltage
151 V
Max. input voltage
302 V
Output voltage
220 - 240 V
Min. output voltage
220 V
Max. output voltage
240 V
Input frequency
50 - 60 Hz
Output frequency
50 - 60 Hz
overvoltage protection
320 J
Efficiency full load
98.90%

Battery properties

Operating time at full load
3.20 min
Operating time at half load
11.50 min
Battery category
Industry battery
Battery
Rechargeable battery
Battery type
Lead–acid battery
Battery size
Device specific
Number of cells
1x
Power capacity
547 Wh
Charging time
3 h

Origin

Country of origin
China

Voluntary climate contribution

CO₂ emissions
250.21 kg
Climate contribution
CHF 5.95

Scope of delivery

Scope of delivery
Documentation CD Rack Assembly Hardware Rack Assembly, RS-232, RS-232. USB cable, USB cable
Items per sales unit
1x

Product dimensions

Height
86 mm
Weight
44.30 kg
Width
432 mm
Length
683 mm

Package dimensions

Length
97 cm
Width
60 cm
Height
26 cm
Weight
44.28 kg
