Best Alphacool products in the Water cooling reservoirs category

On this page you'll find a ranking of the best Alphacool products in this category. To give you a quick overview, we've already ranked the most important information about the products for you.

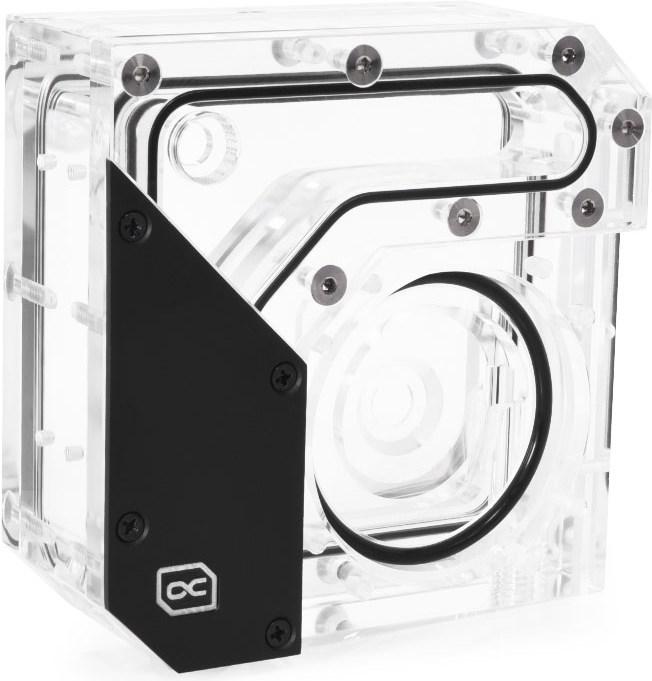

1. Alphacool AGB Core 120mm reservoir with VPP/D5 pump

The Alphacool Core 120mm Reservoir is a high-quality expansion tank for water cooling systems, impressing with both its functionality and appealing design. With a compact build and aRGB lighting, the reservoir integrates harmoniously into various PC cases while offering flexible installation options. The tank is made entirely of robust acrylic, which not only provides an attractive appearance but also supports the product's durability. The special G1/4" connections made of chrome-plated brass are designed to be embedded in the acrylic to minimize the risk of leaks. Installation is simple and tool-free with the included Core Push Mounting Kit, making it easier for users. The reservoir is compatible with D5 or VPP pumps and has a filling volume of 65 milliliters, making it an ideal choice for compact water cooling solutions.

- Compatible with D5 and VPP pumps for versatile applications
- Embedded G1/4" connections to prevent leaks
- Easy and tool-free installation with Core Push Mounting Kit
- Made from robust acrylic for durability and appealing design
- Compact design for use in small cases.

2. Alphacool Ice cream sundae Helix

The Alphacool Eisbecher Helix 250 is a visual highlight of the Eisbecher family. The helix inside the reservoir creates a special effect reminiscent of a DNA strand, making it a true eye-catcher. In the center of the reservoir, there is a UV cathode tube powered by a 3-pin connector. When UV-reactive water is used, it produces a strong glow from within the container, creating a truly impressive effect.

The bottom and the lid are made entirely of acetal but are covered by aluminum caps for an elegant look. The aluminum caps do not come into contact with the water. The connection options are extensive, with three G1/4" threads located in both the lid and the bottom. Additionally, there are two more G1/4" connection options on the side of the bottom. This allows for various mounting positions. Two different mounting sets are included: the aluminum brackets known from the Eisbecher series, which align flush with the top and bottom of the Eisbecher Helix and allow for mounting the reservoir on a radiator. This requires a 240 mm or 280 mm radiator or a larger counterpart, such as a 360 mm or 420 mm radiator. Alternatively, clip mounts are provided, which can be secured to the case with a screw. The Eisbecher Helix can simply be clipped in here, offering flexible options for mounting.

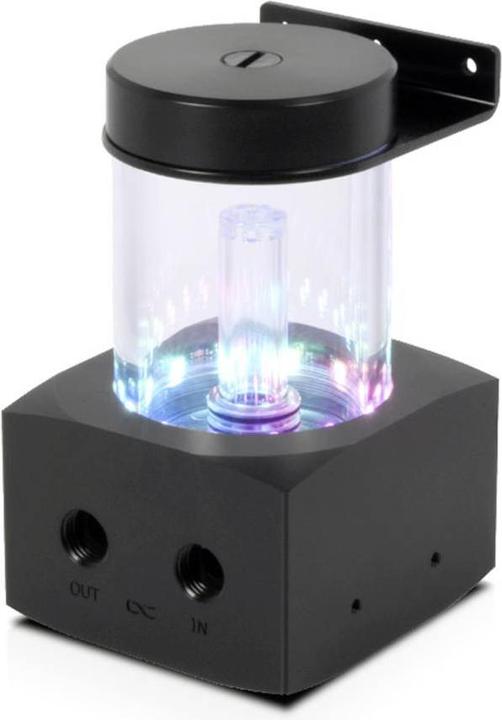

3. Alphacool Eisbecher Aurora D5 Acetal/Glas - 250mm inkl. VPP Apex D5

The Alphacool Eisbecher Aurora reservoir features an integrated pump top designed for powerful D5 pumps and comes with a VPP Apex pump. The reservoir tube is made of glass, while the D5/VPP pump top and the lid are made of acetal. This combination of materials gives the reservoir a distinctive and elegant appearance. The wow factor is provided by 12 digitally addressable RGB LEDs in the pump top, along with the Lighttower water effect inside the glass tube.

Extensive mounting options:
Mounting option 1: The package includes stand feet that allow for mounting the reservoir at the bottom of the case.
Mounting option 2: The package also includes 120mm/140mm mounting brackets, which enable the Eisbecher Aurora reservoir to be attached to available fan slots, radiators, or directly to the fans on radiators.

Digitally addressable RGB lighting: 12 digitally addressable RGB LEDs illuminate the glass tube.

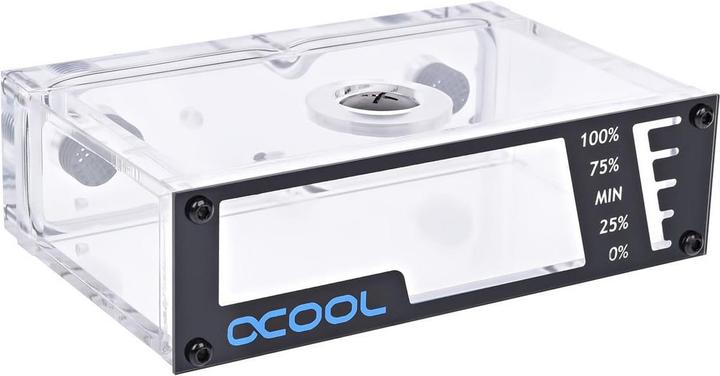

4. Alphacool Repack Single 5.25" Rev. 2

Alphacool Repack Rev.2 - Reservoir for Coolant

Product Description: The Alphacool Repack Rev.2 is a reservoir for coolant available in black, transparent, and copper colors.

Product Type: Reservoir for Coolant
Product Material: Plexiglass, Brass, Acetal
Dimensions (Width x Depth x Height): 14.8 cm x 9.9 cm x 4.3 cm
Features: G1/4 Thread
Compatible Slot: 13.3 cm (5.25)
Mounting Kit: Included
Certification: RoHS.

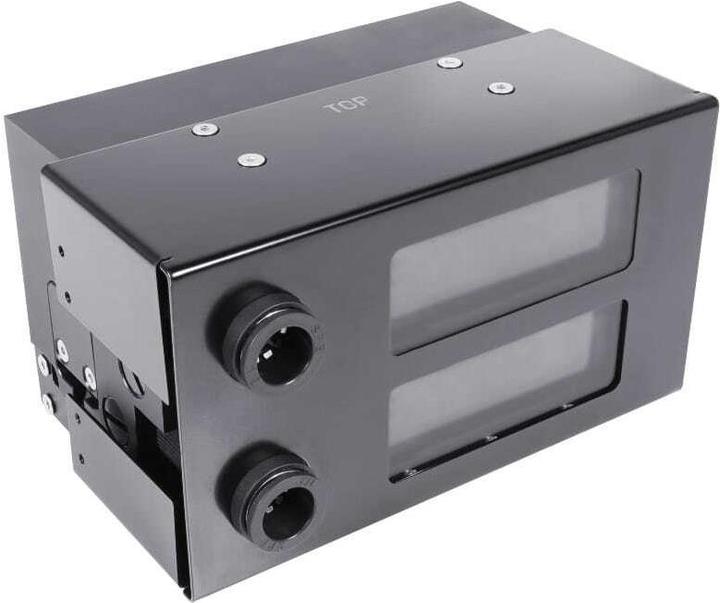

5. Alphacool AGB ES 2U Reservoir VPP with flow/temperature sensor

The Alphacool ES 2U Reservoir is a versatile expansion tank optimized for use in 2U server cases. The quick-release fittings on the front make maintenance fast and easy. With integrated flow and temperature sensors, the cooling system can be continuously monitored. The illuminated viewing window allows for easy reading of the fluid level at any time.

Optimized for servers, the Alphacool All-in-One expansion tank has been specifically designed for 2U server cases. The unit is compactly built to take up minimal space in the server case. Thanks to the quick-release fittings on the front, the cooling system can be filled and bled quickly and easily. The illuminated viewing window allows for constant monitoring of the fluid level in the system. The Alphacool ES 2U Reservoir is compatible with D5-format pumps, such as the Alphacool VPP Apex.

The reservoir features a temperature sensor that covers a measurement range of -40 to 125 °C and connects to the motherboard via a 2-pin connector. Additionally, a flow sensor, which connects via a 3-pin connector, enables continuous monitoring of the water flow in the cooling system.

Technical specifications:
Dimensions (L x W x H) (without pump): 146.00 x 99.66 x 83.90 mm
Material: Metal, Acetal
Weight: 1500 g
Connections (front): 2x quick-release G1/4"
Connections (back): 1x G1/4" In | 1x G1/4" Out
Flow sensor connection: 3-Pin
Temperature sensor connection: 2-Pin
aRGB connection: 3-Pin 5V
Pump compatibility: D5/VPP
Maximum operating temperature: 60 °C
Pressure tested: 0.8 bar
Color: black.

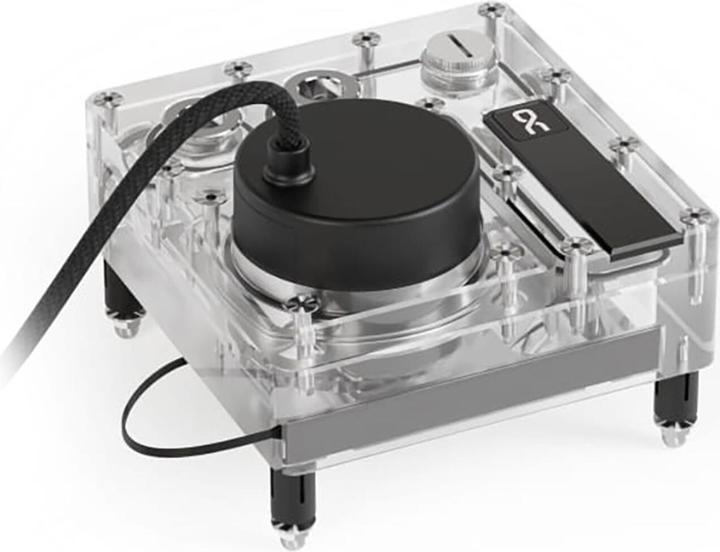

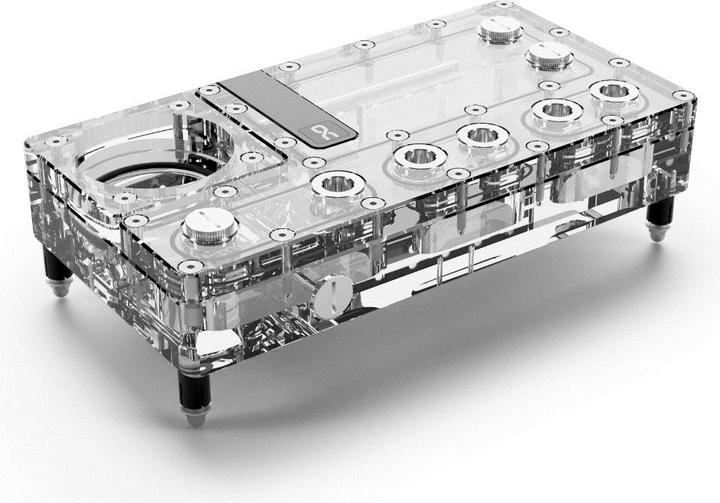

6. Alphacool Core Distro Plate 240 Right VPP/D5

The Core Distro Plate 240 from Alphacool is an innovative reservoir designed specifically for performance-oriented custom water cooling systems. It significantly simplifies the planning, construction, and maintenance of complex water circuits. The thoughtful design features chrome-plated G1/4" brass fittings that are not screwed into the acrylic, minimizing the risk of leaks. Instead, the fittings are two-part and equipped with O-rings, ensuring optimal sealing. The installation of the Distro Plate is straightforward and tool-free, using the included Core Push Mounting Kit, which allows for secure attachment to the case panel or on a radiator. These features make the Core Distro Plate an ideal choice for anyone who values reliable and aesthetically pleasing water cooling.

- Chrome-plated G1/4" brass fittings for high sealing performance
- Two-part fittings with O-rings to prevent leaks
- Easy and tool-free installation with Core Push Mounting Kit
- Optimal planning and maintenance of complex water circuits
- High-quality acrylic material for a clear and functional appearance.

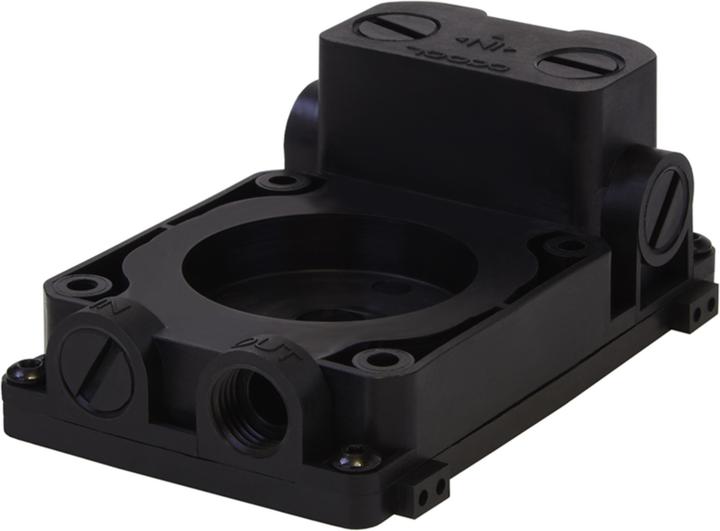

7. Alphacool ES Reservoir 1U

The Alphacool ES Reservoir 1U is a highly advanced expansion tank for water cooling systems, specifically designed for use in compact environments such as 1U server racks. With an extremely compact design, this reservoir offers an optimal solution for cooling hardware without taking up valuable space. It features an integrated pump top for DDC pumps, making installation and integration into existing cooling systems easier. The seven G1/4 inch connections allow for flexible arrangements and simple integration into the water cooling circuit. Additionally, radiators can be mounted directly on the reservoir, reducing the need for additional tubing and increasing system efficiency. The reservoir is made from high-quality materials, providing reliable performance for demanding applications.

- Integrated pump top for DDC pumps for space-saving
- Compatible with 1U server racks for optimal integration
- Seven G1/4 inch connections for flexible installation
- Direct mounting of radiators on the reservoir possible
- Easy attachment to 2.5 inch drive slots.

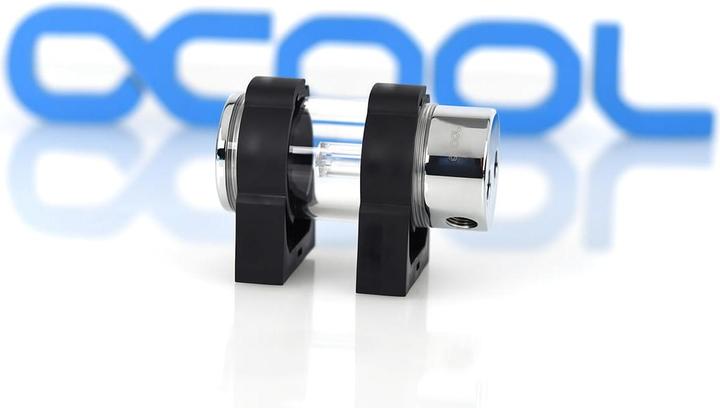

8. Alphacool Cape Corp Coolplex Pro 25 LT

The Alphacool Cape Coolplex expansion tanks have been a well-known quantity on the water cooling market for many years!

Even such solid products need an update to meet the latest requirements. Therefore we at Alphacool have discontinued our last series and are now launching our containers made of POM with the name "LT" and full metal "Copper Edition". Of course, the tubes are again made of first-class Plexiglas, which was already safely operated in your PC in the past.

The updates are very simple:
In addition to the new colours, an additional threaded opening has now been incorporated in the lid of the expansion tank. This facilitates filling with a Fillport. This container can now also be mounted flat! The riser tube, which is normally provided for venting the system, can now be unscrewed, as it is no longer needed when the inlet comes from above. As a nice side effect: we now have more space for lighting modules and can now show off our new container even better! To round off the whole concept even further, all screw plugs are supplied in shiny copper for both models!

Classically, all threads are cut on a size of ¼". Also again our well-known transparent brackets are included in the scope of delivery: Thus the container in the light of an LED is a wonderful eye-catcher for your PC!

Note: Additional screws are required for mounting.

9. Alphacool Ice Station DDC incl. Laing DDC310

The Alphacool Eisstation DDC is a compact expansion tank specifically designed for integration into water cooling systems. It offers an optimal solution for cooling PC components and is available in various versions to be compatible with common pumps such as DDC, D5, and DC-LT. The Eisstation is characterized by its thoughtful design, which allows for easy installation and quiet operation. The expansion tank is designed to fit into almost any case while providing an appealing look. With a filling volume of 250 milliliters and a sturdy design made from high-quality materials, including nylon and PMMA, the Eisstation is both functional and durable. The integrated lighting options and the ability to mount in various positions make it a versatile choice for PC enthusiasts.

- Highly stable nylon lid for increased durability
- Compatible with common pumps: DDC, D5, and DC-LT
- Versatile mounting options, including SSD holder and 5.25" bay
- Integrated lighting and special decoupling screws to minimize vibrations.

10. Alphacool ES 4U reservoir with D5 top

The Alphacool ES 4U reservoir with D5 top is a development for the Enterprise Solutions series. It features an integrated pump top for powerful D5 pumps. The combination of the pump top and reservoir is designed for direct mounting in the front of 4U servers. The positioning of the reservoir in the case and the use of an acrylic cover greatly facilitate maintenance and monitoring of the water circuit.

The ES 4U reservoir has a total of 3 inlets and one outlet. All connection options use a G1/4" thread. Two inlets are located on the acrylic cover at the front. These inlets allow for perfect filling or draining of the reservoir. The inlet and outlet for integrating the reservoir into the water circuit are located on the back of the reservoir.

The ES reservoir is mounted at the front of a 4U server rack. The acrylic cover allows for visual monitoring of the coolant level. The G1/4" inlets in the cover enable easy filling, draining, and bleeding of the water circuit.

The ES 4U reservoir features an integrated pump top and is compatible with all original D5 pumps as well as all Alphacool VPP pumps. The pump holder, a pump O-ring, and all screws are included in the delivery.

Technical specifications:
L x W x H: 121.6 x 101.2 x 70 mm
Pump compatibility: D5
Housing material: Acetal
Cover material: Acrylic
Connections: 4x G1/4" internal thread
Maximum operating temperature: 60 °C
Pressure tested: 0.8 Bar
Weight: 674 g
Color: black.
