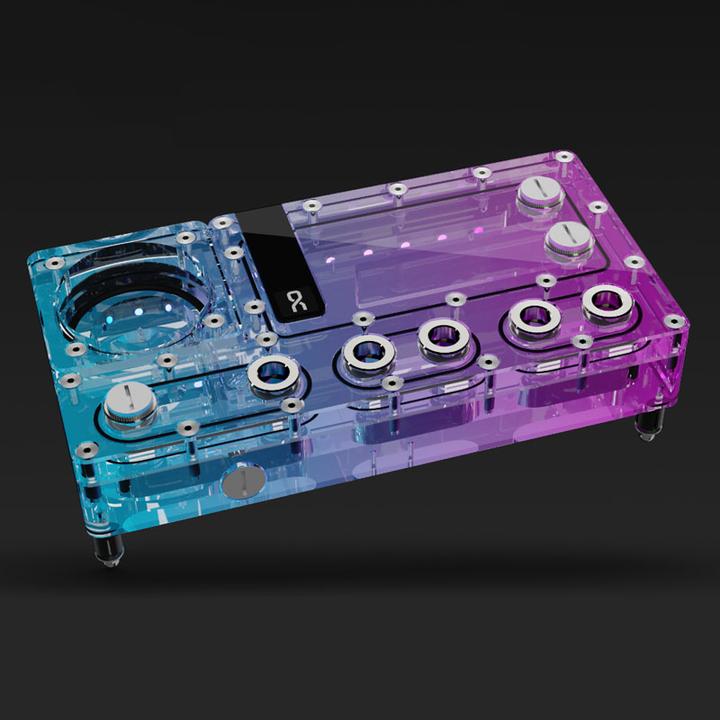

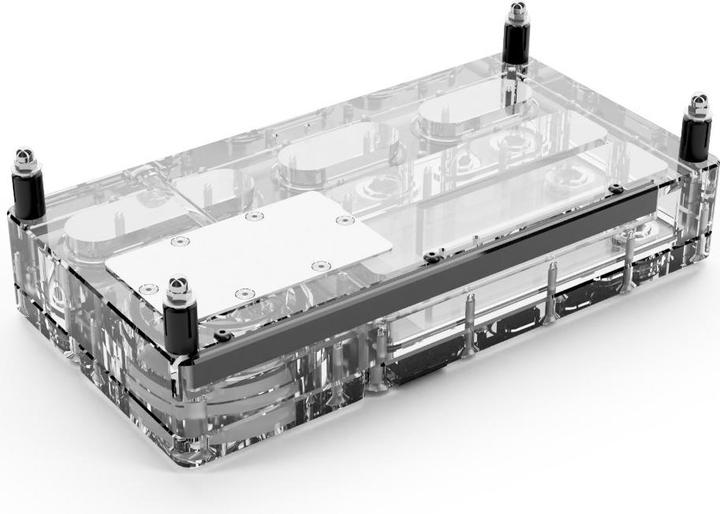

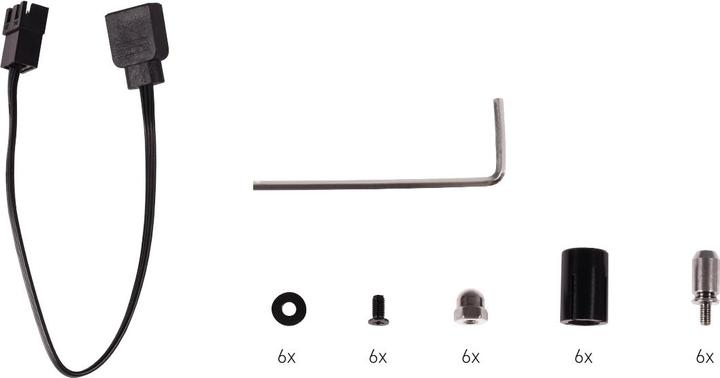

The Core Distro Plate 240 from Alphacool is an innovative reservoir designed specifically for performance-oriented custom water cooling systems. It significantly simplifies the planning, construction, and maintenance of complex water circuits. The thoughtful design features chrome-plated G1/4" brass fittings that are not screwed into the acrylic, minimizing the risk of leaks. Instead, the fittings are two-part and equipped with O-rings, ensuring optimal sealing. The installation of the Distro Plate is straightforward and tool-free, using the included Core Push Mounting Kit, which allows for secure attachment to the case panel or on a radiator. These features make the Core Distro Plate an ideal choice for anyone who values reliable and aesthetically pleasing water cooling.
container type | Other containers |
Filling volume | 164 ml |
fill port | G1/4" female thread |
connector | G1/4" male thread |
Item number | 24202762 |
Manufacturer | Alphacool |
Category | Water cooling reservoirs |
Manufacturer no. | 15474 |
Release date | 19.1.2023 |
container type | Other containers |
connector | G1/4" male thread |
Number of connections | 9 |
fill port | G1/4" female thread |

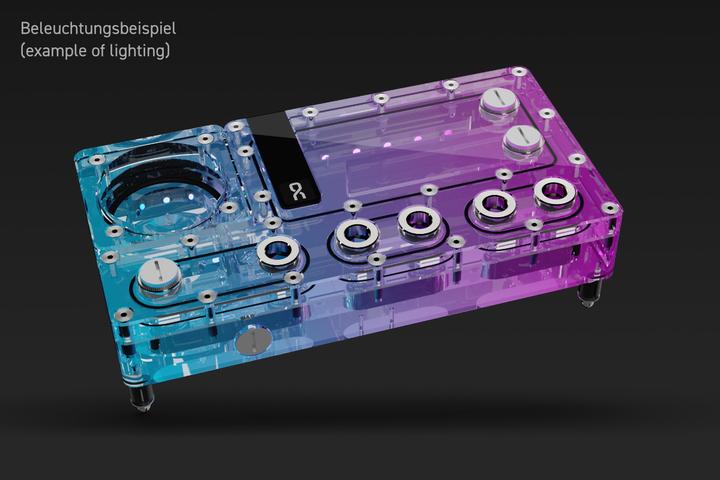

LED holes | available (for 5mm LEDs) |
Material | Acrylic |
Water cooling compatibility | for 1x or 2x D5 |
Filling volume | 164 ml |
Country of origin | China |
CO₂-Emission | |
Climate contribution |
Length | 240 mm |
Width | 125 mm |
Height | 42 mm |
Weight | 1260 g |
Length | 30.70 cm |
Width | 15 cm |
Height | 6.60 cm |
Weight | 1.47 kg |
