Best Panasonic products in the Relays category
On this page you'll find a ranking of the best Panasonic products in this category. To give you a quick overview, we've already ranked the most important information about the products for you.
1. Panasonic Industrial relay HE 2 NO contacts DC 24V 25A Quick-connect terminal
The HE 2 Normally Open Industrial Relay from Panasonic is a reliable and powerful component designed for various industrial applications. With a switching capacity of up to 6.92 kVA and a switching current of 25 A, this relay is ideal for controlling electrical loads in automated systems. The coil voltage of 24 V DC allows for easy integration into existing circuits. The quick connection terminal ensures a straightforward and time-saving installation, while the plug-in design offers flexible handling. The contact material made of silver-tin oxide guarantees high reliability and durability, even under demanding conditions. This relay is an excellent choice for professionals who value quality and efficiency.
- Switching capacity of up to 6.92 kVA
- Quick connection terminal for easy installation
- Contact material made of AgSnO₂ for high reliability
- Plug-in design for flexible handling.
2. Panasonic Signal relay AGN, 2 changeover contacts, DC, 24V, 1A, 2.5kOhm
The AGN signal relay from Panasonic is a versatile multipurpose relay designed for various applications in automation technology. With a coil voltage of 24 V DC and a maximum switching power of 37.5 VA, this relay offers reliable performance and flexibility. It features two changeover contacts that allow for precise control of electrical circuits. The coil resistance of 2.5 kΩ ensures efficient energy consumption, while the pin terminal connection type allows for easy integration into existing systems. This relay is ideal for applications requiring a high switching voltage of up to 125 V AC or 110 V DC, making it suitable for a wide range of industrial and commercial uses.
- Maximum switching power of 37.5 VA
- Two changeover contacts for flexible switching options
- Coil voltage of 24 V DC
- Easy integration through pin terminal connection type.

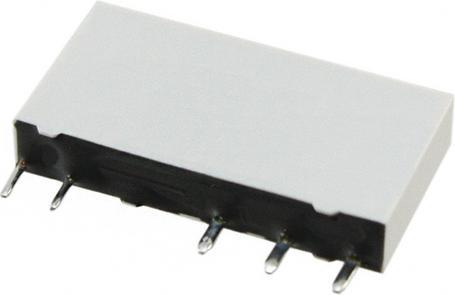

3. Panasonic Print power relay APF 1 NO contact 6A DC 24V 3.39kOhm
The Panasonic APF print performance relay is a versatile and reliable component designed for various applications in electrical engineering. With a switching capacity of up to 1.5 kVA and a maximum switching voltage of 250 V AC, this relay is ideal for use in control and automation systems. It features a contact configuration with one normally open contact and is designed for DC applications with a coil voltage of 24 V. The coil resistance is 3.39 kΩ, ensuring efficient performance. Installation is done through through-hole mounting, making it easy to integrate into different devices. The relay meets UL Listed and VDE standards, highlighting its safety and reliability.
- Switching capacity of up to 1.5 kVA
- Contact material made of AgNi for improved conductivity
- Suitable for DC applications with 24 V coil voltage
- Through-hole mounting for easy installation
- Compliance with UL Listed and VDE standards.

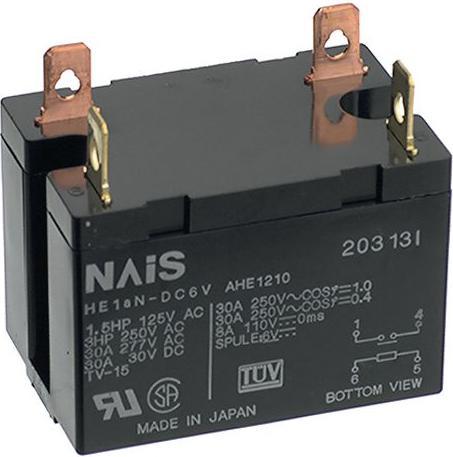

4. Panasonic Industrial relay HE 1 NO contact DC 24V 30A Quick-connect terminal
The Panasonic HE 1 Normally Open Relay DC 24V 30A is a reliable and powerful component designed for various industrial applications. With a switching capacity of up to 8.3 kVA and a switching voltage of 277 V AC as well as 30 V DC, this relay offers high flexibility and efficiency. It features a quick-connect terminal that allows for easy and fast installation. The contact material made of AgSnO₂ ensures a long lifespan and high reliability, while the plug-in design facilitates straightforward integration into existing systems. This relay is ideal for applications requiring precise control and high switching currents.
- Switching capacity of up to 8.3 kVA
- Contact material made of AgSnO₂ for high reliability
- Quick-connect terminal for easy installation
- Plug-in design for straightforward integration
- Suitable for applications with high switching currents up to 30 A.

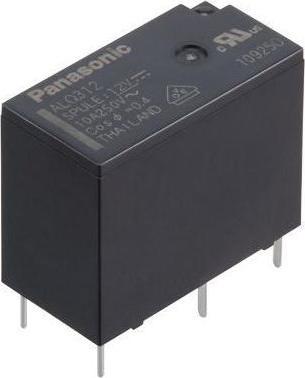

5. Panasonic Print power relay ALQ 1 changeover contact 10A DC 12V 360Ohm
The ALQ 1 changeover relay from Panasonic is a reliable and powerful relay designed for various applications in electrical engineering. With a switching capacity of up to 1.25 kVA and a switching current of 10 A, this relay is ideal for use in DC applications with a coil voltage of 12 V. Its monostable design and contact configuration with a changeover function allow for flexible use in different circuits. The relay is equipped with printed pins, enabling easy installation and integration into existing systems. Additionally, it meets the IEC 61810-1 standard, ensuring high quality and reliability. The use of silver-nickel contact material ensures a long lifespan and good conductivity. This product is an excellent choice for professionals who need a robust and efficient relay.
- Switching capacity of up to 1.25 kVA
- Monostable design for flexible applications
- Silver-nickel contact material for high conductivity
- Easy installation with printed pins
- Meets IEC 61810-1 standard for high quality.

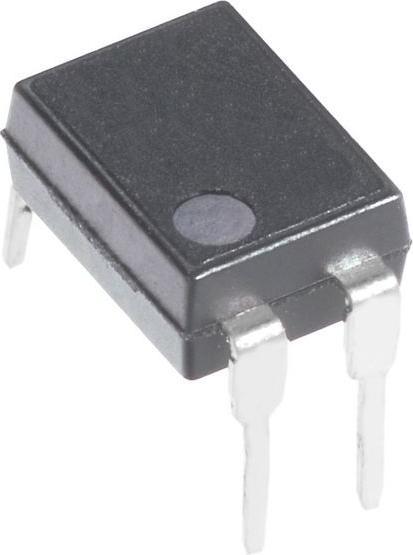

6. Panasonic Photo MOS relay PhotoMOS AQY, DIP-4, 1 NO contact, 350V, 130mA, printed circuit board
The PhotoMOS relay AQY from Panasonic is a highly advanced switching relay designed for use on printed circuit boards. With a compact DIP-4 package, it offers reliable switching functionality with a maximum load voltage of 350 V and a maximum load current of 130 mA. This relay is ideal for applications that require precise control and isolation. The use of pin terminals allows for easy integration into various circuits. The product meets BSI UL standards, ensuring high safety and reliability in application. Its low control voltage of 1.5 V makes it particularly energy-efficient and versatile.
- Maximum load voltage of 350 V for versatile applications
- Maximum load current of 130 mA, suitable for various switching tasks
- Compact DIP-4 package for easy mounting on printed circuit boards
- Meets BSI UL standards for increased safety and reliability.
Relays
CHF2.44
Panasonic Photo MOS relay PhotoMOS AQY, DIP-4, 1 NO contact, 350V, 130mA, printed circuit board
7. Panasonic Print power relay APF 1 changeover contact 6A DC 12V 847Ohm
The APF 1 changeover relay from Panasonic is a versatile and reliable component designed for various applications in electrical engineering. With a switching capacity of up to 1.5 kVA and a maximum switching voltage of 250 V AC, this relay is ideal for use in control and automation systems. It features a contact configuration with one changeover and is designed for DC applications with a coil voltage of 12 V. The coil resistance is 847 Ohms, allowing for precise control. Installation is achieved through through-hole mounting, making it easy to integrate into various devices. The relay meets UL Listed and VDE standards, underscoring its safety and reliability. It is also compatible with smart home systems, making it a flexible solution for modern applications.
- Switching capacity of up to 1.5 kVA
- Contact material made of AgNi for high reliability
- Through-hole mounting for easy installation
- Compatible with smart home systems
- Meets UL Listed and VDE standards.
8. Panasonic Industrial relay CB 1 NO contact DC 12V 40A PCB pins
The Panasonic CB 1 Normally Open Industrial Relay is a reliable and powerful component designed for various industrial applications. With a coil voltage of 12 V DC and a maximum switching current of 40 A, this relay offers high efficiency and stability. Its compact design allows for easy integration into existing systems, while the through-hole mounting ensures a secure and durable installation. The relay is equipped with printed pins that facilitate easy connection and handling. The use of silver alloys in the contact material enhances conductivity and longevity, making it an ideal choice for demanding applications.
- Maximum switching current of 40 A for high power requirements
- Through-hole mounting for easy installation and integration
- Contact material made of silver alloy for improved conductivity
- Suitable for DC applications with a coil voltage of 12 V.
9. Panasonic Signalrelais TQ SMD, 2 Wechsler, DC, 24V, 1A, 2.88kOhm
The TQ SMD signal relay from Panasonic is a highly advanced relay designed for a wide range of applications in automation technology and control systems. With a coil voltage of 24 V DC and a switching capacity of up to 62.5 VA, this relay delivers reliable performance in demanding environments. Its compact design, measuring 14 mm in length, 9 mm in width, and 5.6 mm in height, allows for easy integration into various circuits. The relay features two changeover contacts, enabling flexible control of electrical loads. The coil resistance of 2.88 kΩ ensures efficient energy consumption and contributes to the longevity of the device. This monostable relay is ideal for applications requiring precise and reliable switching.
- Two changeover contacts for flexible switching options
- Monostable design for precise control
- Gull-Wing connection type for easy mounting
- High switching voltage of up to 220 V DC.

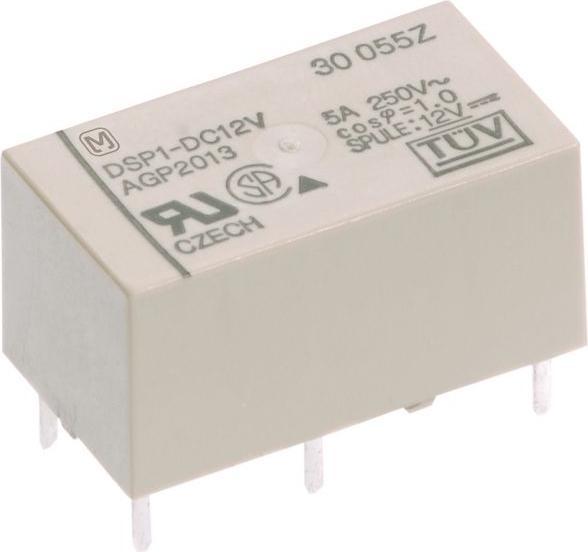

10. Panasonic Relay,Power,SPST-NO,8/5AC/DC,12DC,250AC
Coil voltage = 12V dc
contact arrangement = 1 pole normally open contact
Switching current = 5 A
Coil resistance = 480 Ω
Switching voltage AC max. = 250V
Switching voltage DC max. = 125V
Application type = Industrial devices
Length = 20.2mm
Depth = 11mm
Height = 10mm
Dimensions = 20.2 x 11 x 10mm
Operating temperature range = -40 → +60°C
UL, CSA, TÜV. Reverse polarity types have a part number with an "R" at the end. Relays, DSP Series. These miniature power relays for PCB mounting have high contact rating, high switching capacity, high sensitivity and high breakdown voltage. The encapsulated design allows automatic washing. Typical applications include electronic office and industrial equipment, measuring instruments, thermostats and PLCs. Monostable relay with high switching capacity in a DIL format High breakdown voltage High sensitivity Sealed construction allows automatic waterproofing Miniature size, H x W x D: 10 x 20.2 x 11 mm.
