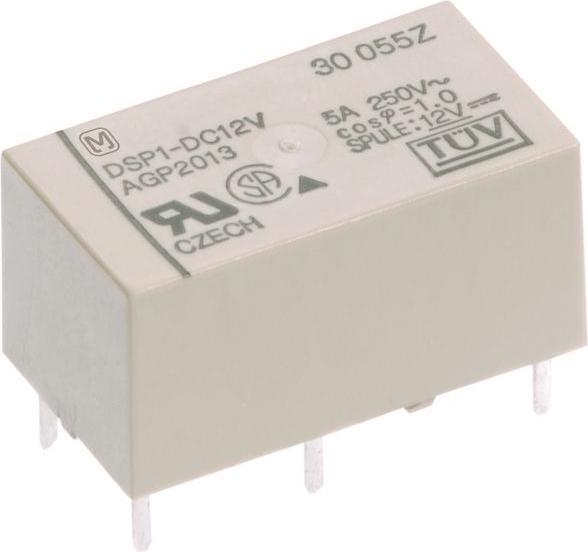

Panasonic Relay,Power,SPST-NO,8/5AC/DC,12DC,250AC

Minimum order 3
Ratings
BrandMore from Panasonic
Delivered between Thu, 31.7. and Mon, 18.8.
More than 10 pieces in stock at third-party supplier
Supplied by
Free shipping starting at 50.–

Product details

Coil voltage = 12V dc
contact arrangement = 1 pole normally open contact
Switching current = 5 A
Coil resistance = 480 Ω
Switching voltage AC max. = 250V
Switching voltage DC max. = 125V
Application type = Industrial devices
Length = 20.2mm
Depth = 11mm
Height = 10mm
Dimensions = 20.2 x 11 x 10mm
Operating temperature range = -40 → +60°C

UL, CSA, TÜV. Reverse polarity types have a part number with an "R" at the end. Relays, DSP Series. These miniature power relays for PCB mounting have high contact rating, high switching capacity, high sensitivity and high breakdown voltage. The encapsulated design allows automatic washing. Typical applications include electronic office and industrial equipment, measuring instruments, thermostats and PLCs. Monostable relay with high switching capacity in a DIL format High breakdown voltage High sensitivity Sealed construction allows automatic waterproofing Miniature size, H x W x D: 10 x 20.2 x 11 mm.

Key specifications

input voltage
12 V
Output voltage
12 V
Output current type
DC
Electric current output
8 A
Relay type
Power contactor
Item number
9963485

General information

Manufacturer
Panasonic
Category
Relays
Manufacturer no.
DSP1A-DC12V
Release date
22.10.2018
External links
Manufacturer's site (de)
Minimum order
3
Minimum order
3

Relay properties

Relay type
Power contactor
input voltage
12 V
Output voltage
12 V
Electric current output
8 A
Output current type
DC
Resistor
480 Ω (ohm)
Switching function
Normally open
Number of closers
1 x
Number of poles
1 x

Smart home features

Smart Home
Not compatible

Sustainability

Manufacturer commitment
RE100, SBTi

Voluntary climate contribution

Manufacturer compensation
According to RE100, the manufacturer Panasonic fully compensates for its energy consumption, leading to a reduction in emissions.
CO₂-Emission
Climate contribution

Product dimensions

Length
20 mm
Width
11 mm
Height
10 mm
