iFlight DJI O3 Vibration Dampers Silicone
Drone spare parts, iFlight Chimera7 Pro V2, iFlight Nazgul5 V3, iFlight Nazgul Evoque F5 / F6 V2, iFlight BOB57 O3
On this page you'll find a ranking of the best iFlight products in this category. To give you a quick overview, we've already ranked the most important information about the products for you.

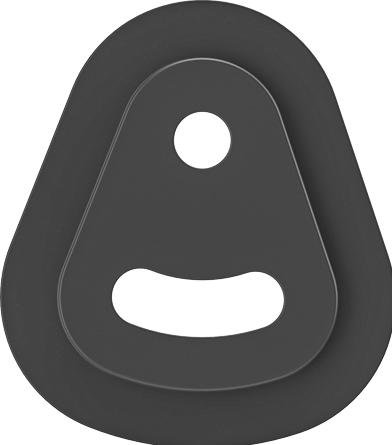

Compatibility Chimera7 Pro V2 Nazgul5 V3 Nazgul Evoque F5 / F6 V2 BOB57 O3 Since the DJI O3 gyro logger is far more sensitive than expected and likely won't be fixed with a software update, we decided to be proactive. New silicone vibration damping inserts have been designed to replace the commonly used TPU ones, which hold the O3 camera in the side panels. These silicone dampers help reduce vibrations and improve performance. Packing List 3 pairs x DJI O3 Vibration Dampers (Silicone).
iFlight DJI O3 Vibration Dampers Silicone
Drone spare parts, iFlight Chimera7 Pro V2, iFlight Nazgul5 V3, iFlight Nazgul Evoque F5 / F6 V2, iFlight BOB57 O3
The BLITZ F745 Flight Controller from iFlight is a highly advanced accessory for drones that offers improved circuit technology and high-quality components. With an optimized design, this flight controller reduces electrical interference, enhancing the drone's performance and stability. It supports various firmware options such as Betaflight, INAV, and Ardupilot, allowing for flexible adaptation to different flight needs. The controller features a DJI HD VTX connector, enabling easy plug-and-play installation without soldering. Additionally, it provides visual error diagnostics through integrated LED indicators. With a variety of UART ports and support for Smartaudio as well as IRC Tramp VTX protocols, the BLITZ F745 is an excellent choice for demanding drone pilots who prioritize performance and user-friendliness.
- Improved circuit technology for reduced electrical noise
- Supports multiple firmware options: Betaflight, INAV, Ardupilot
- Easy installation with DJI HD VTX connector (plug-and-play)
- Integrated LED indicators for visual error diagnostics
- Variety of UART ports for flexible sensor integration.
The BLITZ F7 Pro Flight Controller from iFlight is a highly advanced accessory for drones, offering improved circuitry technology and high-quality components. With an optimized design, this flight controller reduces electrical noise, enhancing performance and stability during flight. The controller features a DJI HD VTX connector that allows for easy plug-and-play installation without the need for soldering. Integrated LED indicators facilitate visual troubleshooting, while the 512 MB BlackBox with LC filter enables precise data collection. The BLITZ F7 Pro supports various VTX protocols and provides multiple connection options to ensure flexible integration into existing systems. Weighing only 17 g, it is lightweight and compact, making it ideal for use in various drone models.
- Improved circuitry technology for reduced electrical noise
- Plug-and-play DJI HD VTX connector without soldering
- 512 MB BlackBox with LC filter for precise data collection
- Supports multiple VTX protocols for flexible integration
- Integrated LED indicators for visual troubleshooting.
The next generation of ESCs from iFlight has arrived, currently being used in their BNF quads such as the Nazgul F5/F6 Series BNF. These new 55 Amp BLHeli 32 BLITZ Mini 4-in-1 ESCs can handle even the most amp-hungry motors.
Changelog:
- Jan. 28, 2023: BLITZ Mini E55 4-in-1 ESC V1.3 - Metal Mosfets.
- June 27, 2024: Since BLHeli32 configuration is closed due to regulatory issues, if you need to adjust the parameters of this ESC, please download BLHeliSuite32Test.
Specifications:
- Product Name: BLITZ Mini E55 4-in-1 ESC
- Input Voltage: 2-6S
- Max. Continuous Current: 55A
- Max. Burst Current: 65A
- MCU: G071
- BEC: No
- Firmware: BLHeli32
- Current Sensor: Yes
- Telemetry: Supported
- Target: IFLIGHT_BLITZ_G071_01 32.9
- Mounting Dimensions: 20 x 20 mm / 4 mm
- Dimensions: 35 x 42 mm
- Weight: 11.3 g
- Protocol: Supports DShot DShot150/300/600/MultiShot/OneShot, etc.
Packing List:
- 1 x BLITZ Mini E55 4-in-1 2-6S ESC
- 1 x Power cables & ESC signal wires.
The YR50B_S Buzzer is an essential accessory for gaming controllers, providing added safety and user-friendliness. It offers a loud acoustic warning and is compatible with all common flight controllers.
Highlights:
- Volume up to 100 dB
- Powered by flight controller
- Dual LED for better visibility.
With the RaceCam Mini Night version, the night vision capability has been improved to enhance your flying experience. Upgrade now for an unrivalled adventure in the air! Features Horizontal resolution of up to 1500TVL Supports Wide Dynamic Range Night vision sensitivity: 12400mV/Lux-sec Built-in OSD with menu-driven camera basic functions PAL/NTSC adjustable Easily switch between 16:9 and 4:3 screen ratios Specifications Image sensor: 1/2.8? CMOS sensor Horizontal resolution: 1500TVL TV system: PAL/NTSC Viewing angle: FOV D: 125°, H: 105°, V: 55° Min. illumination (black and white): 0.000001Lux (F1.6, 50IRE, AGC ON) Lens: M12 Signal-to-noise ratio: > 50dB Wide dynamic range: support White balance: auto Colour: colour/black and white optional Built-in OSD: support Video output: CVBS Wide Power input: DC 5V-30V Operating temperature: -10? to 50? Operating humidity: < 90% Dimensions: 19 x 19mm Packing list 1 × RaceCam Mini night camera 1 × SH1.25 3P cable 1 × SH1.0 4P to SH1.25 3P cable 3 × M2*4mm screws 3 × M2*5mm screws.
Small size but big power! The iFlight BLITZ Micro Force is the VTX you need for your next micro build. Small enough to fit into the smallest frames, but powerful enough to get a signal through dense trees. Switchable from 25mW up to 600mW with excellent power output stability. PIT mode also allows you to power up your quad with pilots nearby without interfering with their frequency. The VTX is set to 25mW by default. Power levels above 25mW require a HAM license or must be approved by local authorities. Please ensure you're flying on legal frequencies and use our prepared Betaflight VTX tables according to your region.
Specifications:
Power: PIT/25/200/400mW/600mW
Antenna interface: MMCX
VTX protocol: IRC Tramp
Output: 40 channels
Size: 29x29mm
Mounting pattern: 20x20mm or 25x25mm
Weight: 4g
Packing list:
1 x BLITZ Force Mini VTX
1 set of wires
1 x whip antenna.
Introducing the iFlight Drone Landing Pad, your solution for effortless takeoffs and landings on any terrain. This versatile landing pad accommodates most RC drones and helicopters, ensuring a smooth and secure landing experience. The package includes four sturdy ground spikes, guaranteeing a stable base for your landing pad even in challenging conditions.
Specifications:
Dimensions: 650 x 650 mm
Main materials: PU leather, PE board
Packing List:
1 x Landing Pad
4 x Sturdy ground spikes.
This LC filter reduces image interference that can occur when the A/V transmitter and FPV camera are powered by the same battery as the ESCs.
3A LC Filter Specs:
- Max. 30V input
- Maximal current: 3A
- Built-in reverse polarity protection
- Very low voltage drop
- Dimension: 16 x 6 x 3 mm
- Weight: only 0.6 g.
The iFlight ExpressLRS ELRS True Diversity Receiver 2.4GHz is a highly advanced receiver specifically designed for use in drones and FPV applications. It features true dual-antenna diversity, developed in close collaboration with the ExpressLRS team. This receiver is known for its outstanding range, low latency, and powerful telemetry feedback capabilities. With its well-placed, shielded antennas, it enhances resistance to interference and provides a more stable connection compared to traditional receiver systems with a single antenna. The receiver is equipped with a temperature-compensated quartz oscillator that prevents frequency shifts due to temperature fluctuations, thereby increasing reliability during long-range flights and demanding FPV maneuvers. Support for Gemini mode and the True Diversity function ensures improved reception quality and higher signal stability.
- True dual-antenna diversity for enhanced signal stability
- Temperature-compensated quartz oscillator to minimize frequency shifts
- High telemetry transmission power of up to 250 mW at 2.4 GHz
- Integrated shielding to protect electronic components
- Compatible with Gemini mode for optimized reception effects.
iFlight ExpressLRS ELRS True Diversity Receiver 2.4GHz
Drone spare parts
