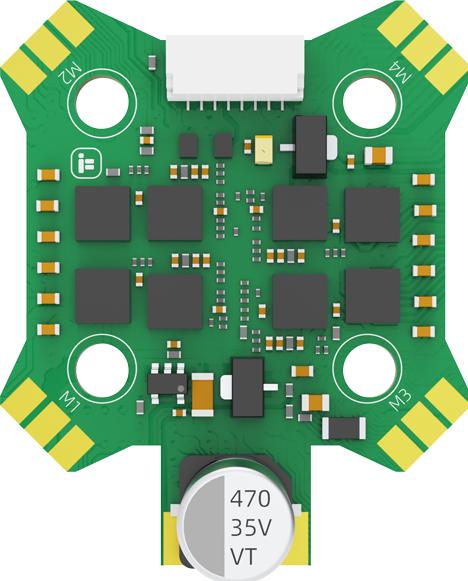

iFlight BLITZ Mini E55 4-IN-1 ESC

The next generation of ESCs from iFlight has arrived, currently being used in their BNF quads such as the Nazgul F5/F6 Series BNF. These new 55 Amp BLHeli 32 BLITZ Mini 4-in-1 ESCs can handle even the most amp-hungry motors.

Changelog:

• Jan. 28, 2023: BLITZ Mini E55 4-in-1 ESC V1.3 - Metal Mosfets.
• June 27, 2024: Since BLHeli32 configuration is closed due to regulatory issues, if you need to adjust the parameters of this ESC, please download BLHeliSuite32Test.

Specifications:

• Product Name: BLITZ Mini E55 4-in-1 ESC
• Input Voltage: 2-6S
• Max. Continuous Current: 55A
• Max. Burst Current: 65A
• MCU: G071
• BEC: No
• Firmware: BLHeli32
• Current Sensor: Yes
• Telemetry: Supported
• Target: IFLIGHT_BLITZ_G071_01 32.9
• Mounting Dimensions: 20 x 20 mm / 4 mm
• Dimensions: 35 x 42 mm
• Weight: 11.3 g
• Protocol: Supports DShot DShot150/300/600/MultiShot/OneShot, etc.

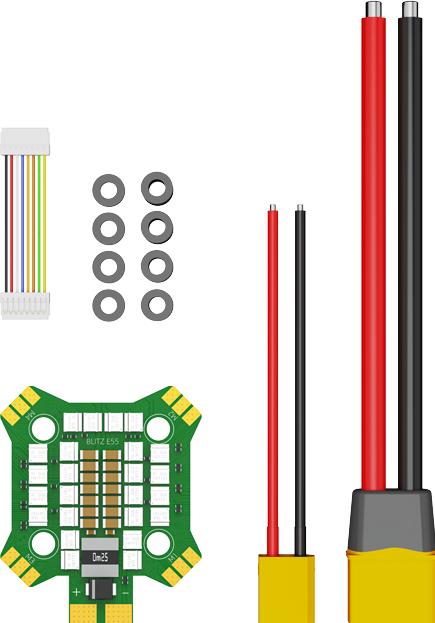

Packing List:

• 1 x BLITZ Mini E55 4-in-1 2-6S ESC
• 1 x Power cables & ESC signal wires.
