Best Quwireless products in the Network antenna category
On this page you'll find a ranking of the best Quwireless products in this category. To give you a quick overview, we've already ranked the most important information about the products for you.

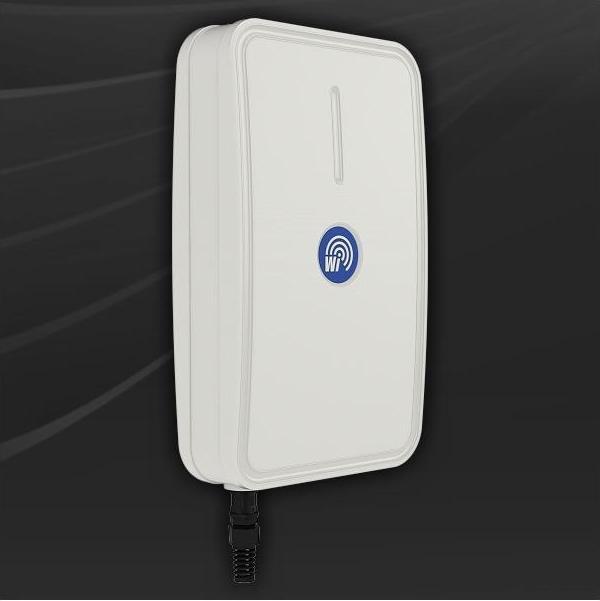

1. Quwireless WIBOX SA M25-90-12HV - 2.4 GHz, 12 dBi Sector Antenna
WiBOX SA M25-90-12HV - 2.4 GHz, 12 dBi Sector Antenna
The WiBOX SA M25-90-12HV is a dual-polarized sector antenna that operates at a frequency of 2.3 - 2.7 GHz and achieves a gain of 12 dBi. It is designed to set up base stations with short to medium range. The antenna is integrated into the high-quality WiBOX Medium Box system, with installation dimensions of 26 x 26 x 5.5 cm. The box is waterproof according to IP67 and has enough space to install nearly any of the most common radio modules.
The WiBOX Medium also offers the possibility to integrate the antenna system into other systems. For this purpose, there are additional connection holes on the underside of the WiBOX. The waterproof RJ45 connector allows for standard PoE usage without the need for crimping. The sleeves around the connectors prevent moisture ingress. The WiBOX Medium is made of durable plastic that is resistant to UV radiation and harsh weather conditions.
The specially reinforced WiMount bracket is made of fiberglass and ensures stability even in strong winds. The WiBOX SA M25-90-12HV is horizontally and vertically polarized and equipped with two SMA connectors.
Applications:
- 2.4 GHz ISM band applications
- IEEE 802.11b/g WLAN systems
- Base station antennas
- Point-to-Multipoint applications
- Wireless broadband systems
- System integration
- Nstreme protocol
- 802.11n/MIMO standard
- WiMax
- LTE bands: 7, 38, 40, 41
Frequency: 2300 - 2650 MHz
Gain: 2x 12 dBi
Polarization: Dual
Horizontal beamwidth: 90°
Vertical beamwidth: 30°
VSWR: Impedance: 50 Ohm
Connector: RJ45
Pole mounting system: 60 mm
WiBOX protection class: IP67
Operating temperature: -40 °C to +70 °C
Weight: 1.6 kg
Dimensions: 270 x 270 x 110 mm.

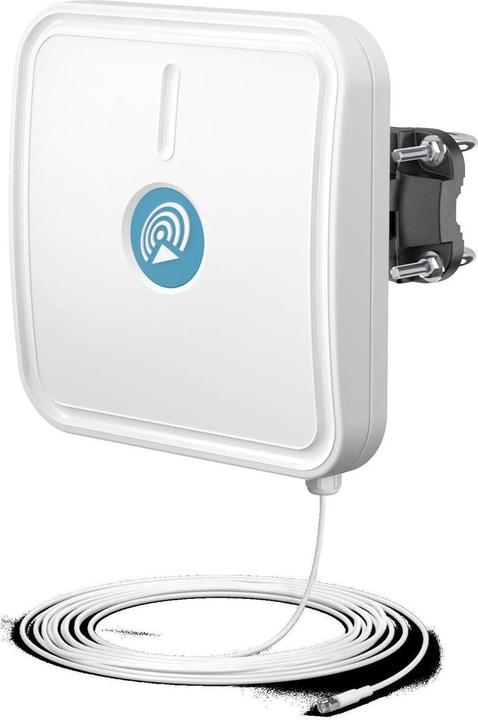

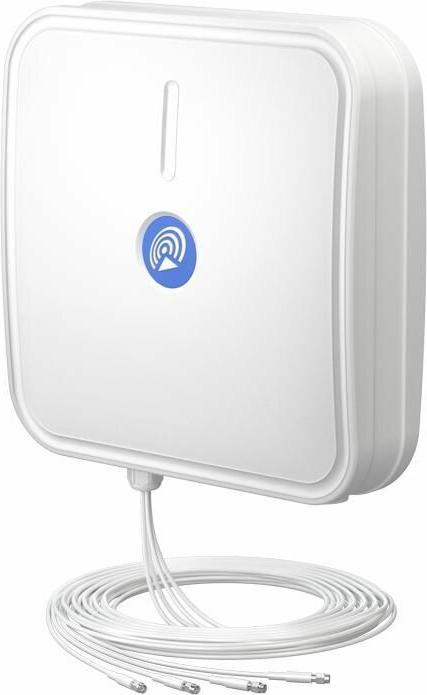

2. Quwireless AP5G4-1 - QuPanel 5G/LTE MIMO 4x4, 10 m Cable
AP5G4-1 - QuPanel 5G/LTE MIMO 4x4, 10 m Cable
The QuPanel 5G/LTE directional MIMO 4x4 high gain antenna is designed primarily for 5G and 4G LTE, but it is also compatible with 3G and 2G networks. This antenna enhances signal strength in rural and suburban areas, as well as locations with weak mobile signals. It is intended for installation on buildings, either on a pole or a wall. With a very wide working frequency range, the antenna serves as a universal client for the 5G bands n77, n78 and LTE bands including LTE 700/800/1800/1900/2100/2300/2600/3400/3800. It is compatible with Teltonika and other MIMO 4x4 5G/LTE/3G/2G modems and routers.
5G/LTE Antenna Specifications
- Frequency: 0.694 - 0.96 GHz; 1.7 - 2.2 GHz; 2.2 - 2.7 GHz; 3.3 - 3.8 GHz
- Supported LTE/5G bands: 1, 2, 3, 4, 5, 6, 7, 8, 9, 10, 12, 13, 14, 17, 18, 19, 20, 22, 23, 25, 26, 27, 28, 29, 30, 33, 34, 35, 36, 37, 38, 39, 40, 41, 42, 43, 44, 48, 49, 52, 53, 59, 62, 65, 66, 67, 68, 69, 85, n78, n80, n81, n82, n83, n84, n86, n89, n90, n95
- Gain: 0.694 - 0.96 GHz: 7 dBi; 1.7 - 2.2 GHz: 7 dBi; 2.2 - 2.7 GHz: 7.5 dBi; 3.3 - 3.8 GHz: 5.5 dBi
- Front-to-back: 0.694 - 0.96 GHz: > 10 dB; 1.7 - 2.2 GHz: > 12 dB; 2.2 - 2.7 GHz: > 14 dB; 3.3 - 3.8 GHz: > 17 dB
- VSWR: < 1.70, max. < 2.00
- Beam width: 70°/70° +/-15°
- Polarization: Dual polarized X-pol
- Impedance: 50 ohms
Mechanical Specification
- Materials: ABS, aluminum, PTFE, fiberglass
- Ingress protection: IP67
- Dimensions: 392 x 392 x 99 mm (15.43 x 15.43 x 3.90 inch)
- Weight: 3.7 kg (8.16 lbs.)
- Operating temperature: From -40°C to 75°C (from -40°F to 167°F)
- Cable length: 10 m
- Cable type: LMR195 white
- Connector type: 4x SMA plug.

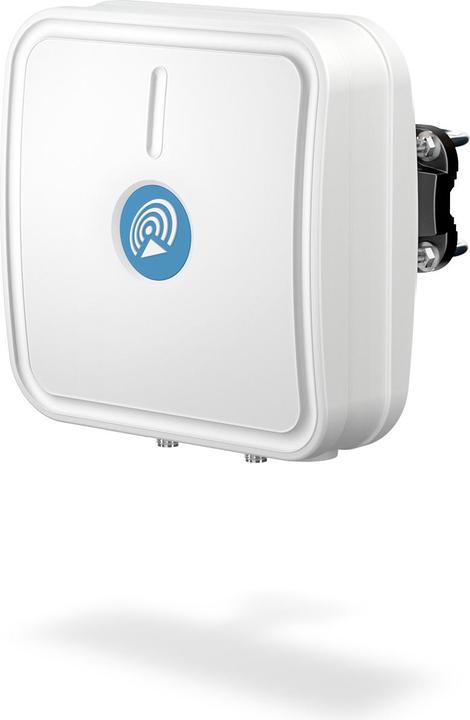

3. Quwireless AS868-1 - QuPanel LoRa 868MHz, 10m
Directional 868MHz LoRa Outdoor Antenna
The QuPanel LoRa EU operates at 868MHz (EU868, IN865, RU864) with a gain of 8.5dBi, making it the perfect choice for extending the range and reliability of your wireless Long Range (LoRa) communication networks. The outdoor sector antenna is compatible with Helium Network devices such as SenseCAP M1 and other IoT gateways. Compared to an omnidirectional antenna, the sector antenna transmits the signal over a greater distance due to the directional gain of the antenna.
The advanced mounting system offers the significant advantage of being adjustable within a range of +/-35 degrees in two planes, even in the case of wall mounting. Unlock the full potential of your LoRa-based IoT applications with our directional LoRa outdoor antenna. Experience extended range, reduced interference, and improved connectivity for your LoRa networks. Rely on its durability, precision, and easy installation to enhance the performance of your IoT solutions.
ANTENNA SPECIFICATIONS
FREQUENCY
- 868 MHz (EU868, IN865, RU864)
GAIN
- 8.5 dBi
VSWR
- 17 dB
MECHANICAL SPECIFICATIONS
MATERIALS
- ABS, Aluminum, PTFE, Fiberglass
CONNECTOR TYPE
- RPSMA
RECEIVER PROTECTION
- IP67
DIMENSIONS
- 270x270x77 mm
WEIGHT
- 1.5 kg
OPERATING TEMPERATURE
- From -40°C to 75°C
MAST DIAMETER
- 25-60mm.
4. Quwireless QuSpot for RUTX50
Integrated outdoor multi-band high-performance LTE omni antenna GPS antenna for installation with Teltonika RUTX50 (all-in-one) up to 4 dBi LTE antenna gain IP67 passive PoE support. The integrated multi-band LTE and 5G omni antenna, Wi-Fi omni antenna, and GPS installation for Teltonika RUTX50 (all-in-one) QuSpot for RUTX50 is an outdoor antenna that provides a reliable wireless connection in a variety of environments. This product is an all-in-one solution that combines a high-gain omnidirectional 5G and Wi-Fi antenna with the RUTX50 in a single IP67 enclosure. This integration enables the implementation of new RUTX50 solutions for outdoor use. QuSpot for RUTX50 is an ideal solution for outdoor wireless connectivity in mobile applications such as transportation, yachting, boats, and camping, as well as in urban centers with high signal density.

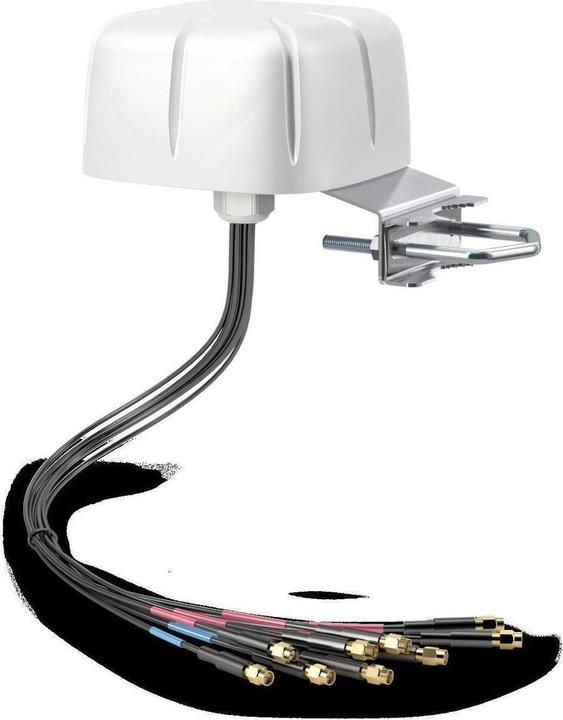

5. Quwireless ASL26G - QuShell 26G
QuShell 5G/LTE 2x2 MIMO, 6x6 MIMO WiFi 6e is a powerful mobility antenna that provides comprehensive connectivity across various frequencies and applications for 5G/4G/LTE. It supports optional GPS/GNSS and up to 6x6 MIMO/Diversity configurations at 2.4/5.0/7.2 GHz for Wi-Fi. The optional high-performance GPS/GNSS antenna features an integrated LNA with 18 dB gain.
The product comes with 2x 5G/LTE, 1x GPS/GNSS, and 6x Wi-Fi antennas. It covers a wide frequency range from 617 to 6000 MHz for 5G/LTE bands and additionally offers dual-band Wi-Fi 6e antennas for 2.4 GHz and 5 to 7.2 GHz.
The QuShell 5G/LTE is used in the public sector (buses, fire trucks, ambulances), in maritime applications, tourism, and various IoT systems. The set includes mounts for maritime use as well as surface and mast/wall mounting options, allowing the QuShell to be installed on a roof, mast, pole, wall, or other flat surfaces.
The standard cable length is 50 cm. For other variants, please contact your local dealer or customer service representative.
Wi-Fi Specification:
Frequency:
- 2.4 - 2.5 GHz
- 5 - 7.2 GHz
Gain:
- 2.4 - 2.5 GHz: 2 dBi
- 5 - 7.2 GHz: 5 dBi
VSWR:
- < 2.50
Radiation Pattern:
- 360°/25°
Polarization:
- Vertical
Impedance:
- 50 Ω
Max Input Power:
- 50 W
DC Grounding:
- Yes
5G/LTE Specification:
Frequency:
- 617 - 960 MHz
- 1.7 - 2.7 GHz
- 3.3 - 3.8 GHz
- 4.2 - 6.0 GHz
Gain:
- 617 - 960 MHz: 2 dBi
- 1.7 - 2.7 GHz: 4 dBi
- 3.3 - 3.8 GHz: 5 dBi
- 4.2 - 6.0 GHz: 6 dBi
Supported LTE Bands:
- 1, 2, 3, 4, 5, 7, 8, 9, 10, 12, 13, 14, 17, 18, 19, 20, 22, 25, 26, 27, 28, 29, 30, 33, 34, 35, 36, 37, 38, 39, 40, 41, 42, 43, 44, 47, 48, 49.
6. Quwireless QuMax Omni for TCR100, 2x Antenna LTE (AT100MO) network antenna Omni-directional antenna
The QuMax Omni for Teltonika TCR100 is a powerful, omnidirectional network antenna specifically designed for use with the Teltonika TCR100. This antenna provides reliable signal transmission and reception in all directions, making it ideal for applications requiring comprehensive coverage. With its robust construction and high-quality materials, the QuMax Omni ensures long-term use under various conditions. The antenna is easy to install and is suitable for both indoor and outdoor use. It is an excellent choice for users who need a stable and efficient network connection, whether for industrial applications, IoT projects, or mobile communication. The QuMax Omni is designed to optimize the performance of the Teltonika TCR100 and provide improved network stability.
Network antenna
CHF156.–
Quwireless QuMax Omni for TCR100, 2x Antenna LTE (AT100MO) network antenna Omni-directional antenna

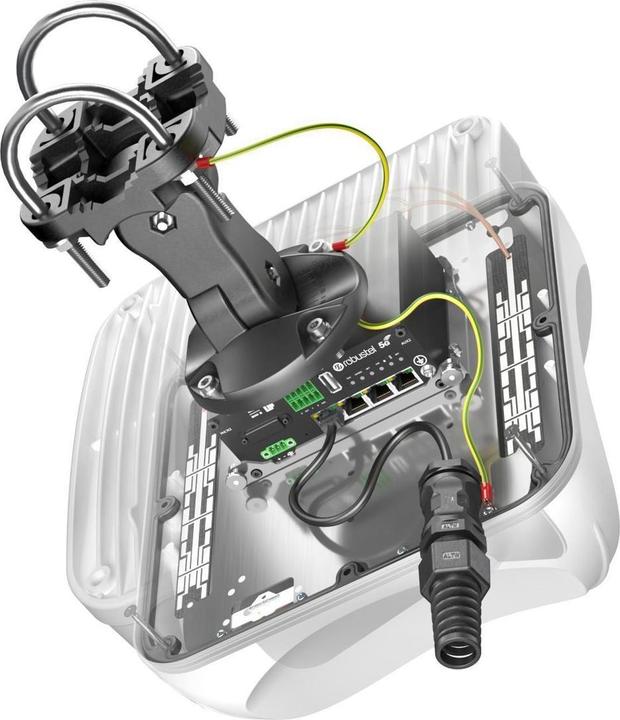

7. Quwireless AR2110M - QuMax for Robustel R2110
Integrated Multi-Band LTE Directional Antenna, WiFi Omni Antenna, Bluetooth Antenna, GPS Antenna, Installation for Robustel R2110 (All-in-One)
The QuMax All-in-One antenna for the Robustel R2110 router is a perfect outdoor device to enhance signal strength in rural and suburban areas, as well as in locations where mobile signals are weak. It features an integrated directional antenna for 5G, an omni Wi-Fi 6E antenna, Bluetooth, and GPS. When using the R2110 with the QuMax antenna, you receive an integrated complete solution with a router and multi-band antennas in one housing.
Note: This antenna is available in two different versions, depending on your router's configuration. If you are using the R2110 with Power over Ethernet (PoE), please select the version "without PoE splitter." For the R2110 without PoE support, please choose the version "PoE splitter." Compatible Robustel part numbers can be found in the specifications.
LTE Specification
Frequency:
- 0.694-0.96 GHz
- 1.7 - 2.2 GHz
- 2.5 - 2.7 GHz
Supported LTE/5G Bands:
- 1, 2, 3, 4, 5, 6, 7, 8, 9, 10, 12, 13, 14, 17, 18, 19, 20, 23, 25, 26, 27, 28, 29, 33, 34, 35, 36, 37, 38, 39, 44, 59, 62, 65, 66, 67, 68, 69, 85, n80, n81, n82, n83, n84, n86, n89, n95
Gain:
- 0.694 - 0.96 GHz: 4 dBi
- 1.7 - 2.2 GHz: 5 dBi
- 2.5 - 2.7 GHz: 6 dBi
VSWR:
- < 1.50, max < 2.50
Beamwidth:
- 360°/25° +/- 5°
Polarization:
- Vertical
Impedance:
- 50 Ω
WiFi Specification
Frequency:
- 2.4 - 2.5 GHz
- 4.7 - 6.0 GHz
Gain:
- 2.4 - 2.5 GHz: 6 dBi
- 4.7 - 6.0 GHz: 7 dBi
VSWR:
- < 1.70, max < 2.00
Beamwidth:
- 360°/25° +/- 5°
Polarization:
- Vertical
Impedance:
- 50 Ω
Mechanical Specification
Material:
- BS, Aluminum, PTFE, Fiberglass
Connector Protection:
- IP67
Connector Type:
- RJ45
Dimensions:
- 272 x 276 x 96 mm
- 10.71 x 10.87 x 3.78 inch
Weight:
- 1.8 kg
- 3.97 lbs
Operating Temperature:
- From -40°C to 75°C.
8. Quwireless QuMax for Teltonika RUTX12/14
AX12M - QuMax for Teltonika RUTX12/14
The QuMax MIMO 4x4 directional LTE antenna (4x SMA connector for 2x embedded LTE modems) for Teltonika RUTX12/14 routers is a perfect outdoor device for mobile and fixed installations such as industrial, CCTV, hotspots, etc. It also features embedded Wi-Fi dual band 2.4 & 5 GHz omni antennas, a GPS antenna, and a Bluetooth antenna. It is designed to have the Teltonika RUTX12/14 router installed inside an IP67 enclosure. Using the RUTX12/14 with a QuMax antenna provides an integrated complete solution with an embedded router and multi-band antennas in one enclosure.
LTE Antenna Specifications
- Frequency: 0.694 - 0.96 GHz; 1.7 - 2.2 GHz; 2.2 - 2.7 GHz
- Supported LTE/5G bands: 1, 2, 3, 4, 5, 6, 7, 8, 9, 10, 12, 13, 14, 17, 18, 19, 20, 23, 25, 26, 27, 28, 29, 30, 33, 34, 35, 36, 37, 38, 39, 40, 41, 44, 53, 59, 62, 65, 66, 67, 68, 69, 85, n80, n81, n82, n83, n84, n86, n89, n90, n95
- Gain: 0.694 - 0.96 GHz: 4 dBi; 1.7 - 2.2 GHz: 5 dBi; 2.2 - 2.7 GHz: 6 dBi
- Front-to-back: >8 dB
- VSWR:
- Beam width: 90°/90° +/-30°
- Polarization: Vertical
- Impedance: 50 ohms
Wi-Fi Antenna Specification
- Frequency: 2.40 - 2.50 GHz; 4.70 - 6.00 GHz
- Gain: 2.40 - 2.50 GHz: 6 dBi; 4.70 - 6.00 GHz: 7 dBi
- VSWR:
- Beam width: 360°/25° +/-5°
- Polarization: Vertical
- Impedance: 50 ohms
Bluetooth Antenna Specifications
- Frequency: 2.30 - 2.60 GHz
- Gain: 3 dBi
- VSWR:
- Beam width: 360°/25° +/-5°
- Polarization: Vertical
- Impedance: 50 ohms
Mechanical Specification
- Materials: ABS, aluminum, PTFE, fiberglass
- Connector type: RJ45
- Ingress protection: IP67
- Dimensions: 392 x 392 x 99 mm (15.43 x 15.43 x 3.90 inch)
- Weight: 3.7 kg (8.16 lbs.)
- Operating temperature: From -40°C to 75°C (from -40°F to 167°F).
9. Quwireless QuPanel 5G/LTE MIMO 2x2, N-female
The QuPanel 5G/LTE directional MIMO 2x2 high gain antenna is designed primarily for 5G and 4G LTE, but it is also compatible with 3G and 2G networks. This antenna enhances signal strength in rural and suburban areas where mobile signals are weak. It is intended for installation on buildings, either on a pole or wall. With a very wide working frequency range, the antenna is a universal solution for 5G bands n77 and n78, as well as various LTE bands including LTE700, 800, 1800, 1900, 2100, 2300, 2600, 3400, and 3800. It is compatible with Teltonika models such as RUT240, RUT900, RUT950, RUT955, RUTX09, RUTX11, and other MIMO 2x2 5G/LTE/3G/2G modems and routers.
LTE Specifications:
- Frequency:
- 0.694-0.96 GHz
- 1.7-2.2 GHz
- 2.2-2.7 GHz
- 3.3-3.8 GHz
- Supported LTE bands: 1, 2, 3, 4, 5, 6, 7, 8, 9, 10, 12, 13, 14, 17, 18, 19, 20, 22, 23, 25, 26, 27, 28, 29, 30, 33, 34, 35, 36, 37, 38, 39, 40, 41, 42, 43, 44, 48, 49, 52, 53, 59, 62, 65, 66, 67, 68, 69, 85, n78, n80, n81, n82, n83, n84, n86, n89, n90, n95
- Gain:
- 0.694-0.96 GHz: 7 dBi
- 1.7-2.2 GHz: 7 dBi
- 2.2-2.7 GHz: 7.5 dBi
- 3.3-3.8 GHz: 5.5 dBi
- VSWR: <1.70, max <2.00
- Beamwidth: 70°/70° ±15°
- Polarization: Dual polarized X-Pol
- Impedance: 50 Ω
Mechanical Specifications:
- Materials: ABS, aluminum, fiberglass, galvanized steel
- Cable type: LMR195, white, length 5m
- Connector type: 2x SMA plug
- Ingress protection: IP67
- Dimensions: 272 x 276 x 96 mm
- Weight: 1.8 kg
- Operating temperature: From -40°C to 75°C.
10. Quwireless WIBOX PA DM5-20HV - MIMO 2x2 Directional Panel Antenna, 5 GHz
WiBOX PA DM5-20HV - MIMO 2x2 Panel Directional Antenna 20 dBi, 5 GHz
The WiBOX PA M5-20HV is a dual-polarized (MIMO 2x2) directional antenna operating in the frequency range of 5.1 - 5.85 GHz, providing 20 dBi antenna gain for both polarizations. It is designed for point-to-point as well as point-to-multipoint connections as a client antenna. This antenna is housed in the WiBOX Extra Large enclosure. The installation space measures 24 x 46 x 5 cm. The enclosure is IP67 rated, offering ample space for the installation of popular WLAN equipment. The WiBOX Extra Large allows for the connection of the antenna with other systems through the connection holes located at the bottom. The waterproof RJ45 connector enables power supply via PoE without the need to crimp an RJ45 connector on the mast or roof during installation. The collar around the connector ensures that the connector remains dry. The enclosure is made from durable plastic that withstands UV radiation and harsh weather conditions. The specially reinforced mount, made from fiberglass, ensures stability even in strong winds. The antenna comes with an SMA connector.
Features:
- 2x 20 dBi directional antenna
- Waterproof WiBOX Extra Large enclosure
- Spacious and convenient WiBOX Extra Large for device installation
- Waterproof RJ45 system
- Adjustable mast mount
- Horizontal and vertical polarization, dual-polarized, 2x2 MIMO
- High-quality construction
- 2x SMA sockets
- Ground connection for lightning protection
- Stable WiMount fastening elements
- Designed for use in all weather conditions
Applications:
- 5 GHz WLAN applications
- IEEE 802.11a WLAN systems
- Point-to-point applications
- Client applications
- System integration
- Nstreme protocol 802.11n/ MIMO standard
Frequency range: 5100 - 5850 MHz
Antenna gain: 2x 20 dBi
Polarization: dual
Horizontal beamwidth: ...
Network antenna
CHF129.–
Quwireless WIBOX PA DM5-20HV - MIMO 2x2 Directional Panel Antenna, 5 GHz
