Quwireless ASL26G - QuShell 26G

QuShell 5G/LTE 2x2 MIMO, 6x6 MIMO WiFi 6e is a powerful mobility antenna that provides comprehensive connectivity across various frequencies and applications for 5G/4G/LTE. It supports optional GPS/GNSS and up to 6x6 MIMO/Diversity configurations at 2.4/5.0/7.2 GHz for Wi-Fi. The optional high-performance GPS/GNSS antenna features an integrated LNA with 18 dB gain.

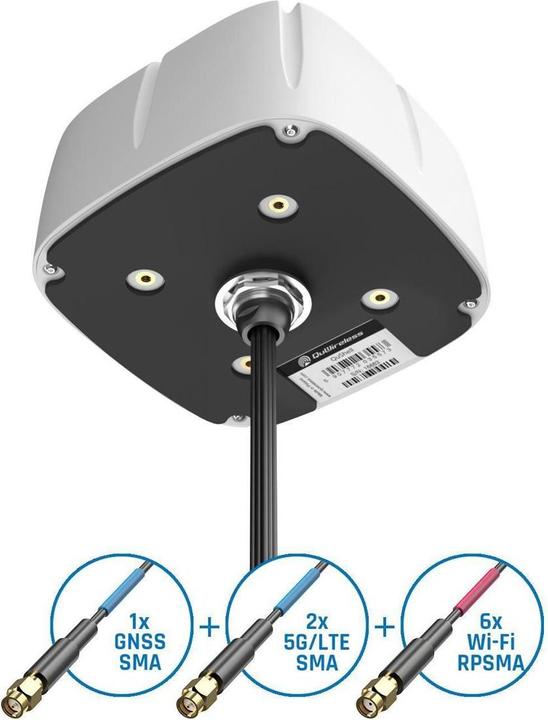

The product comes with 2x 5G/LTE, 1x GPS/GNSS, and 6x Wi-Fi antennas. It covers a wide frequency range from 617 to 6000 MHz for 5G/LTE bands and additionally offers dual-band Wi-Fi 6e antennas for 2.4 GHz and 5 to 7.2 GHz.

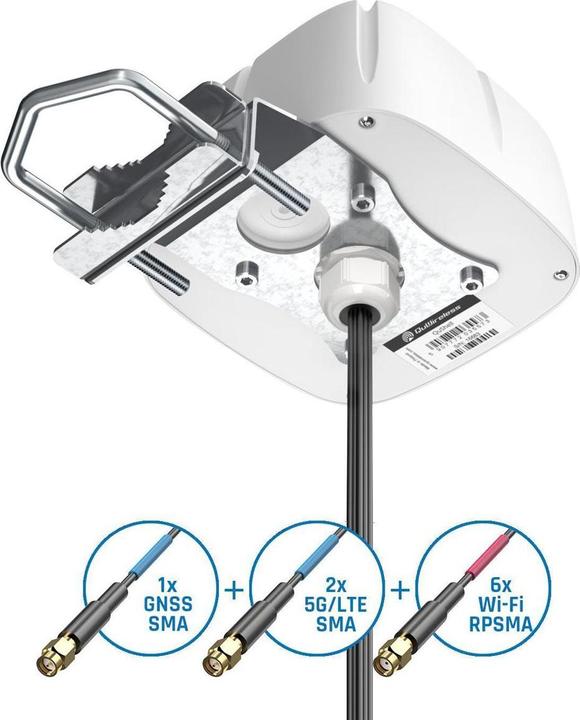

The QuShell 5G/LTE is used in the public sector (buses, fire trucks, ambulances), in maritime applications, tourism, and various IoT systems. The set includes mounts for maritime use as well as surface and mast/wall mounting options, allowing the QuShell to be installed on a roof, mast, pole, wall, or other flat surfaces.

The standard cable length is 50 cm. For other variants, please contact your local dealer or customer service representative.

Wi-Fi Specification:
Frequency:

• 2.4 - 2.5 GHz
• 5 - 7.2 GHz

Gain:

• 2.4 - 2.5 GHz: 2 dBi
• 5 - 7.2 GHz: 5 dBi

VSWR:

• < 2.50

Radiation Pattern:

• 360°/25°

Polarization:

• Vertical

Impedance:

• 50 Ω

Max Input Power:

• 50 W

DC Grounding:

• Yes

5G/LTE Specification:
Frequency:

• 617 - 960 MHz
• 1.7 - 2.7 GHz
• 3.3 - 3.8 GHz
• 4.2 - 6.0 GHz

Gain:

• 617 - 960 MHz: 2 dBi
• 1.7 - 2.7 GHz: 4 dBi
• 3.3 - 3.8 GHz: 5 dBi
• 4.2 - 6.0 GHz: 6 dBi

Supported LTE Bands:

• 1, 2, 3, 4, 5, 7, 8, 9, 10, 12, 13, 14, 17, 18, 19, 20, 22, 25, 26, 27, 28, 29, 30, 33, 34, 35, 36, 37, 38, 39, 40, 41, 42, 43, 44, 47, 48, 49.
