Quwireless QuMax XR2 Bi-Directional Kit for RUTX12

AXR12 - QuMax XR2 Bi-Directional Kit for RUTX12

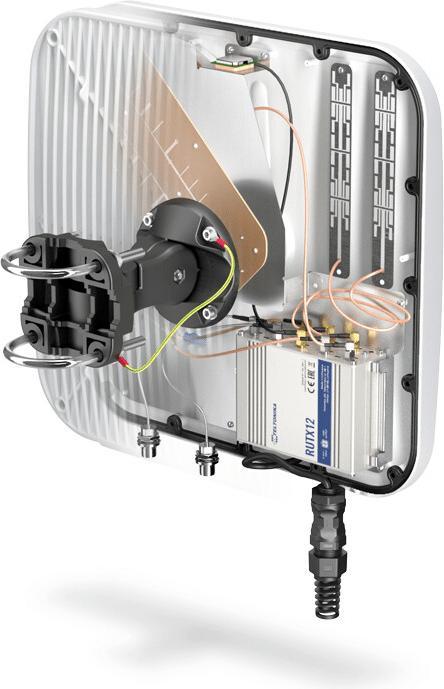

The QuMax XR2 is a bi-directional LTE eXtra Range antenna set, consisting of two separate antennas, designed to connect to two different LTE base stations. It can also be connected to one base station to maximize data transfer from that station. The main antenna features built-in dual band Wi-Fi, GPS, and Bluetooth antennas, along with 2x N(f) connectors for the second LTE antenna and space to install the RUTX12 router inside the antenna enclosure. The second antenna is a directional LTE eXtra Range antenna and comes in a smaller enclosure. The QuMax XR2 set is intended for long-range connections from the LTE base station, allowing for optimal use of functions such as load balancing and carrier aggregation.

LTE Antenna Specification (Master and Slave)

Frequency: 0.694 - 0.96 GHz; 1.7 - 2.2 GHz; 2.2 - 2.7 GHz
Supported LTE/5G bands: 1, 2, 3, 4, 5, 6, 7, 8, 9, 10, 12, 13, 14, 17, 18, 19, 20, 23, 25, 26, 27, 28, 29, 30, 33, 34, 35, 36, 37, 38, 39, 40, 41, 44, 53, 59, 62, 65, 66, 67, 68, 69, 85, n80, n81, n82, n83, n84, n86, n89, n90, n95
Gain: 0.694 - 0.96 GHz: 7 dBi; 1.7 - 2.2 GHz: 7 dBi; 2.2 - 2.7 GHz: 7 dBi
Front-to-back: >10 dB
VSWR: <1.70, max <2.00
Beamwidth: 70°/70° ± 15°
Polarization: Dual polarized X-pol
Impedance: 50 Ω

Wi-Fi Antenna Specification

Frequency: 2.40 - 2.50 GHz; 4.70 - 6.00 GHz
Gain: 2.40 - 2.50 GHz: 6 dBi; 5.00 - 6.00 GHz: 4 dBi
VSWR: <1.70, max <2.00
Beamwidth: 360°/25° ± 5°
Polarization: Vertical
Impedance: 50 Ω

Bluetooth Antenna Specification

Frequency: 2.40 - 2.50 GHz
Gain: 2.40 - 2.50 GHz: 3 dBi
VSWR: <1.70, max <2.00
Beamwidth: 360°/25° ± 5°
Polarization: Vertical
Impedance: 50 Ω

Mechanical Specification (Master)

Materials: ABS, aluminum, PTFE, fiberglass
Connector type: RJ45 + 2x N(f)
Ingress protection: IP67
Dimensions: 392 x 392 x 99 mm.
