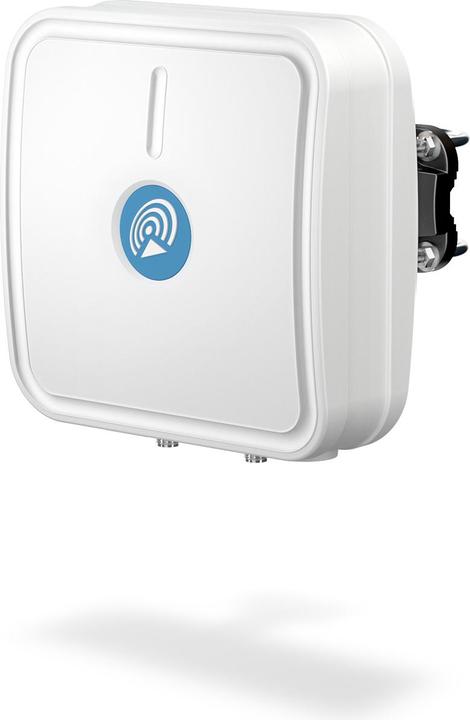

Quwireless QuPanel 5G/LTE MIMO 2x2, N-female

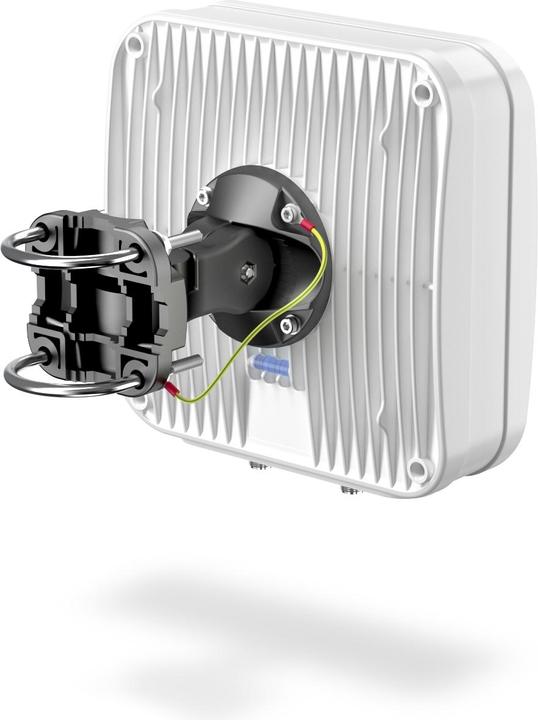

The QuPanel 5G/LTE directional MIMO 2x2 high gain antenna is designed primarily for 5G and 4G LTE, but it is also compatible with 3G and 2G networks. This antenna enhances signal strength in rural and suburban areas where mobile signals are weak. It is intended for installation on buildings, either on a pole or wall. With a very wide working frequency range, the antenna is a universal solution for 5G bands n77 and n78, as well as various LTE bands including LTE700, 800, 1800, 1900, 2100, 2300, 2600, 3400, and 3800. It is compatible with Teltonika models such as RUT240, RUT900, RUT950, RUT955, RUTX09, RUTX11, and other MIMO 2x2 5G/LTE/3G/2G modems and routers.

LTE Specifications:

• Frequency:
• 0.694-0.96 GHz
• 1.7-2.2 GHz
• 2.2-2.7 GHz
• 3.3-3.8 GHz

• Supported LTE bands: 1, 2, 3, 4, 5, 6, 7, 8, 9, 10, 12, 13, 14, 17, 18, 19, 20, 22, 23, 25, 26, 27, 28, 29, 30, 33, 34, 35, 36, 37, 38, 39, 40, 41, 42, 43, 44, 48, 49, 52, 53, 59, 62, 65, 66, 67, 68, 69, 85, n78, n80, n81, n82, n83, n84, n86, n89, n90, n95

• Gain:
• 0.694-0.96 GHz: 7 dBi
• 1.7-2.2 GHz: 7 dBi
• 2.2-2.7 GHz: 7.5 dBi
• 3.3-3.8 GHz: 5.5 dBi

• VSWR: <1.70, max <2.00
• Beamwidth: 70°/70° ±15°
• Polarization: Dual polarized X-Pol
• Impedance: 50 Ω

Mechanical Specifications:

• Materials: ABS, aluminum, fiberglass, galvanized steel
• Cable type: LMR195, white, length 5m
• Connector type: 2x SMA plug
• Ingress protection: IP67
• Dimensions: 272 x 276 x 96 mm
• Weight: 1.8 kg
• Operating temperature: From -40°C to 75°C.
