Quwireless AR2110M - QuMax for Robustel R2110

Integrated Multi-Band LTE Directional Antenna, WiFi Omni Antenna, Bluetooth Antenna, GPS Antenna, Installation for Robustel R2110 (All-in-One)

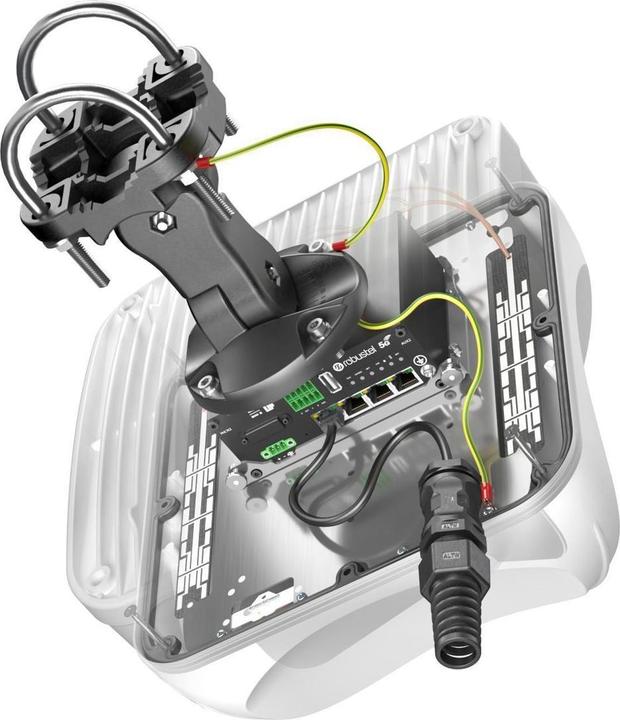

The QuMax All-in-One antenna for the Robustel R2110 router is a perfect outdoor device to enhance signal strength in rural and suburban areas, as well as in locations where mobile signals are weak. It features an integrated directional antenna for 5G, an omni Wi-Fi 6E antenna, Bluetooth, and GPS. When using the R2110 with the QuMax antenna, you receive an integrated complete solution with a router and multi-band antennas in one housing.

Note: This antenna is available in two different versions, depending on your router's configuration. If you are using the R2110 with Power over Ethernet (PoE), please select the version "without PoE splitter." For the R2110 without PoE support, please choose the version "PoE splitter." Compatible Robustel part numbers can be found in the specifications.

LTE Specification
Frequency:

• 0.694-0.96 GHz
• 1.7 - 2.2 GHz
• 2.5 - 2.7 GHz

Supported LTE/5G Bands:

• 1, 2, 3, 4, 5, 6, 7, 8, 9, 10, 12, 13, 14, 17, 18, 19, 20, 23, 25, 26, 27, 28, 29, 33, 34, 35, 36, 37, 38, 39, 44, 59, 62, 65, 66, 67, 68, 69, 85, n80, n81, n82, n83, n84, n86, n89, n95

Gain:

• 0.694 - 0.96 GHz: 4 dBi
• 1.7 - 2.2 GHz: 5 dBi
• 2.5 - 2.7 GHz: 6 dBi

VSWR:

• < 1.50, max < 2.50

Beamwidth:

• 360°/25° +/- 5°

Polarization:

• Vertical

Impedance:

• 50 Ω

WiFi Specification
Frequency:

• 2.4 - 2.5 GHz
• 4.7 - 6.0 GHz

Gain:

• 2.4 - 2.5 GHz: 6 dBi
• 4.7 - 6.0 GHz: 7 dBi

VSWR:

• < 1.70, max < 2.00

Beamwidth:

• 360°/25° +/- 5°

Polarization:

• Vertical

Impedance:

• 50 Ω

Mechanical Specification
Material:

• BS, Aluminum, PTFE, Fiberglass

Connector Protection:

• IP67

Connector Type:

• RJ45

Dimensions:

• 272 x 276 x 96 mm
• 10.71 x 10.87 x 3.78 inch

Weight:

• 1.8 kg
• 3.97 lbs

Operating Temperature:

• From -40°C to 75°C.
