Best selling Energy monitors from Schneider Electric
On this page you’ll find a ranking of the best Energy monitors from Schneider Electric. To give you a quick overview, we’ve added the most important product details. This page always stays fresh and updates automatically.

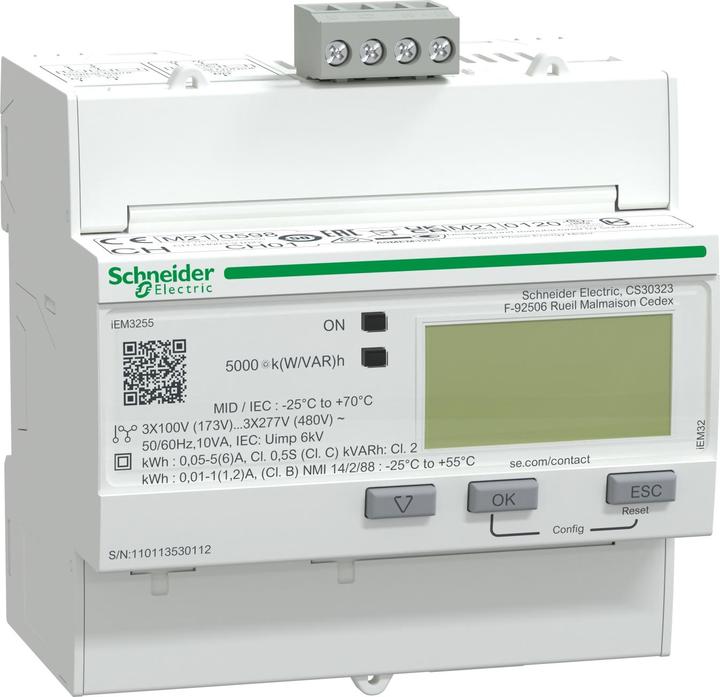

1. Schneider Electric Acti9 iEM3200 Energy Meter Modbus MID
Display type: LCD
Number of digits: 10
Number of phases: 1, 3
Pulse output: Yes
Depth: 69 mm
Minimum temperature: -20 °C
Type of measuring device: Digital
Energy meters Acti9 iEM3200. The Acti 9 iEM3000 series energy meters offer a range of energy meters for DIN rail mounting, ideal for separate billing and cost allocation. In combination with communication systems like Smart Link, the Acti 9 iEM3000 series facilitates the integration of electrical distribution measurements into the customer's facility management systems. Two versions are available: 63 A direct measurement (models iEM3100) and meters connected with current transformers (iEM3200). iEM3200: kWh meter with sub-meter. iEM3210: kWh meter with sub-meter and pulse output, MID approved. iEM3215: Multi-rate meter, controlled via digital input or internal clock, MID approved. iEM3250: kWh meter with sub-meter and current, voltage, and power measurement, Modbus communication. iEM3255: Energy meter, four quadrants, multiple rates with sub-meter and current, voltage, and power measurement, Modbus communication, digital I/O, MID approved.
2. Schneider Electric iEM3110 Energy Meter 63A Pulse MID
Advertisement Type: LCD
Number of Digits: 10
Pulse Output: Yes
Depth: 69 mm
Minimum Temperature: -25 °C
Series: Acti 9 iEM3000
Model types and technical specifications can be found in the product information guide. The Schneider Electric iEM3000 series power meter is a cost-effective energy measurement solution packed with features for DIN rail and modular enclosures. The Acti 9 iEM3000 series power meters are more than just kWh meters; they provide a comprehensive overview of on-site energy consumption and generation with complete four-quadrant measurement of delivered and received active and reactive power. Additionally, extensive real-time measurements (V, I, P, PF) give customers more insight into their energy usage, and the ability to handle multiple tariffs allows for flexible adaptation to the utility provider's billing structure. The meters are fully compatible with the Acti 9 communication system.
Accuracy class 1.0 (models iEM3100 and iEM3300) and 0.5S (model iEM3200) for active power measurement, accuracy class 2 for reactive energy measurement. Graphical display for good visibility. Compact design, easily mounted on DIN rails with two clips. Internal clock stores the date and time of the last reset and retains data for 48 hours during a power outage. Selection of multiple tariffs through digital inputs or internal clock.
Applications: Billing verification to ensure that only the energy you actually consumed is charged. Partial billing for the energy consumption of individual tenants, including WAGES. Summation of energy consumption including WAGES and allocation of costs by area, usage, shift, or per within the same facility.

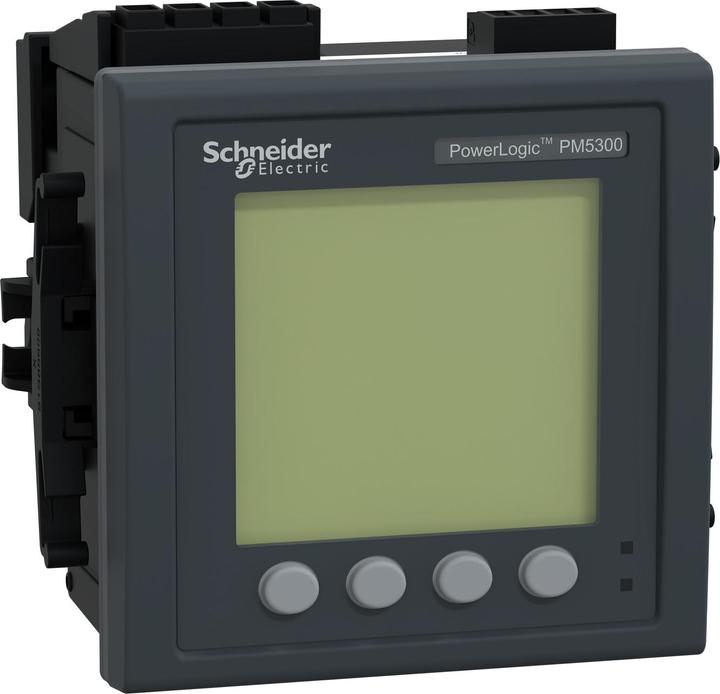

3. Schneider Electric PM5340 meter ethernet 2DI/2DO 35 alarms
Display type: LCD
Number of phases: 3
Depth: 72 mm
Minimum temperature: -25 °C
Maximum temperature: 70 °C
Type of measuring device: Electromechanical
Model types and technical specifications can be found in the product information guide. The PowerLogic TM PM5000 power meter is the ideal choice for cost management. It provides the measurement capabilities needed to allocate energy consumption, create tenant billing and sub-billing, identify energy-saving opportunities, optimize the efficiency and usage of equipment, and assess the power supply quality of the electrical grid at a high level. Three phases, neutral, and ground can be monitored simultaneously. Measurement of power supply quality, data collection, graphical display, large characters, and powerful backlighting, easy-to-understand menus, text in 8 selectable languages. Very accurate devices with global billing certifications, IP52 protection rating on the front. Single device in 96 x 96 mm. Applications: Cost management – sub-billing/tenant billing – cost allocation, network management – basic monitoring of power supply quality – min/max monitoring with timestamp – alarms – WAGES monitoring.

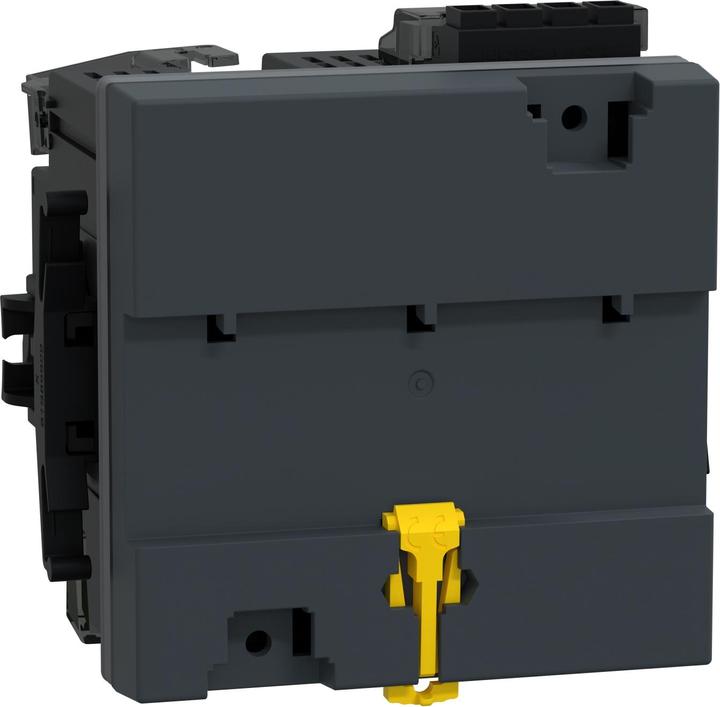

4. Schneider Electric PM5500 Power Meter, ETH, 4DI-2DO Out,MID
Cutout height: 92 mm
Cutout width: 92 mm
Display type: LCD
Number of phases: 3
Pulse output: Yes
Depth: 90 mm
Accuracy: ±0.2 %
Minimum temperature: -25 °C
Series: PM5000
Model types and technical specifications can be found in the product information guide. The PowerLogic TM PM5000 power meter is the ideal choice for cost management. It provides the measurement capabilities needed to allocate energy consumption, create tenant billing and sub-billing, identify energy-saving opportunities, optimize the efficiency and utilization of equipment, and assess the power quality of the grid at a high level. Three phases, neutral, and ground can be monitored simultaneously. It measures power quality, collects data, offers graphical display, large characters, and powerful backlighting. Easy-to-understand menus, text available in 8 selectable languages. Highly accurate devices with global billing certifications. IP52 protection rating on the front. Single device in 96 x 96 mm. Applications: Cost management – sub-billing/tenant billing – cost allocation, network management – basic monitoring of power quality – min/max monitoring with timestamp – alarms – WAGES monitoring.

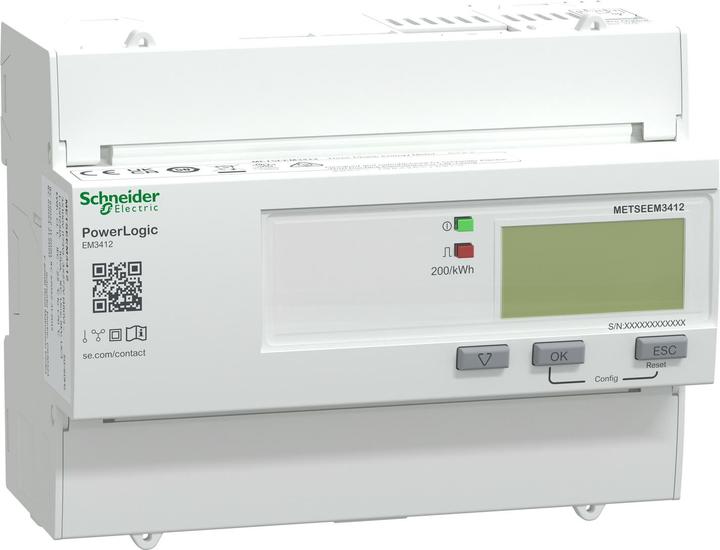

5. Schneider Electric Energiezähler EM3412, 3
The PowerLogic EM3000 series includes a range of three-phase, DIN rail-mounted energy meters with a backlit LCD display. It measures active energy and active power. The supply voltage can range between 100 and 277 VAC or between 173 and 480 VAC in networks with 50 Hz or 60 Hz. The rated current for this measuring device is up to 125 A. The meter offers the following accuracy: active energy class 1 according to IEC62053-21 and IEC61557-12. Communication is ensured through a digital pulse output for energy measurement. This device can be used for partial billing and partial counting applications. The product dimensions are as follows: width 126 mm, depth 69 mm, height 103 mm, and product weight 590.2 g. Additional local signaling includes a green LED operational indicator, a flashing yellow LED for accuracy testing, and communication indicators. Certifications include CE and UL. The meter can be installed in single-phase and neutral (1P+N), three-phase (3P), and three-phase and neutral (3P+N) networks.

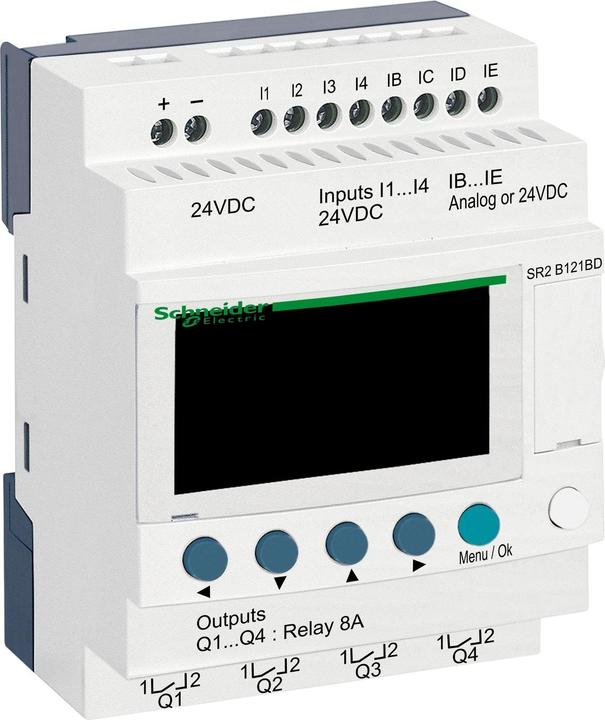

6. Schneider Electric Zelio process module
Series: Zelio Logic
Supply Voltage: 24 VAC
Output Type: Relay
Number of Outputs: 4
Input Type: Analog, Discrete
Number of Inputs: 8
Mounting Type: DIN Rail
Width: 107.6 mm
Length: 71.2 mm
Connection Type: Screw
Programmable Interface: Computer, Operator Device
Module Type: Logic Control Module
Output Current: 8 A
Zelio Logic Smart Relay – Compact. Zelio Logic Smart Relays are designed for use in small automated systems and are utilized in industrial and commercial applications. The relays come with 10 or 26 I/O depending on the model and can have up to 40 extended I/O. Programming and Software: Simple programming can be done independently using the buttons on the front of the relay or on a PC using Zelio Soft software. PC programming can be done either using LADDER language or Function Block Diagram (FBD) language. Memory: The Zelio Logic Smart Relays feature memory buffering that allows programs to be copied to other Smart Relays. The memory enables the storage of a backup copy of the program before product replacement, and for relays without a display or buttons, the copy program is automatically transferred upon power-up. LCD display with backlight, DIN rail or panel mounting, includes real-time clock, 4 analog output channels, 10 ms cycle time, 10 years buffering (EEPROM memory), screw connection terminals, protection class IP20.
7. Schneider Electric PM3200 Power Meter, Serial Out
PowerLogic PM3250 universal measuring device for DIN mounting with a backlit LCD display (128 x 96 pixels). The measuring device offers an accuracy class of 0.5s according to the IEC 62053-22 standard and 32 samples per cycle. It measures energy, active and reactive power, voltage, current, frequency, power factor, apparent power, total harmonic distortion, and up to the 15th harmonic. With 4 quadrant energy measurement, the device operates in a 50Hz or 60Hz network and accepts a supply voltage of 100 to 277VAC, 173 to 480VAC, and 100 to 300VDC. The rated current is 1 A or 5 A and supports single-phase, single-phase with neutral, or three-phase configurations. The direct measurement range is from 50 to 570VAC, with an external voltage transformer from 570 to 999000VAC. The measurement voltage range between phases is 80 to 570 VAC at 45 to 65 Hz. The measurement range between phase and neutral is from 50 to 330VAC at 45 to 65 Hz. The communication protocol is Modbus RTU and ASCII 2 wires with RS485 connection. The device offers event recording with up to 5 alarms. The product dimensions are as follows: width 90 mm, depth 70 mm, height 95 mm, and product weight 260 g.
8. Schneider Electric PM5561 MID meter modbus ethernet 4DI/2DO
Display Type: LCD
Number of Phases: 3
Depth: 72 mm
Minimum Temperature: -25 °C
Maximum Temperature: 70 °C
Meter Type: Electromechanical
Model types and technical specifications can be found in the product information guide. The PowerLogic TM PM5000 power meter is the ideal choice for cost management. It provides the measurement capabilities needed to allocate energy consumption, create tenant billing and sub-billing, identify energy-saving opportunities, optimize the efficiency and usage of equipment, and assess the power quality of the electrical grid at a high level. Three phases, neutral, and ground can be monitored simultaneously. It measures power quality, collects data, displays graphics, features large characters, and has powerful backlighting. The menus are easy to understand, and text is available in 8 selectable languages. Highly accurate devices with global billing certifications. IP52 protection rating on the front. Single device in 96 x 96 mm. Applications: Cost management, sub-billing/tenant billing, cost allocation, network management, basic monitoring of power quality, min/max monitoring with timestamp, alarms, WAGES monitoring.
9. Schneider Electric TM5SE2IC01024
This product is part of the Modicon TM5 series, a range of modules for modular IP20 I/O systems. The counting module offers 2 inputs, 16/32-bit counting resolution with sinking (positive) discrete logic. It is a counting module with a discrete input voltage of 24 V DC and a maximum power dissipation of 1.51 W. Additionally, it has an input/output current consumption of 63 mA at 24 V DC, a auxiliary input of 2 x 24 V DC, and an encoder power supply of 24 V DC. This product is part of a flexible and scalable I/O configuration for automation solutions. The maximum cycle time is 2 ms, and the resolution of the counting inputs is 16bit/32bit. The product complies with protection class IP20 and weighs 0.025 kg. The Modicon TM5 meets the typical requirements of production and packaging machines, as well as material handling and assembly systems. This product is certified by CE, C-Tick, CSA, GOST-R, and CULus. It complies with the standards IEC 61131-2, UL 508, CSA C22.2 No 213, and CSA C22.2 No 142. This product is compatible with the Modicon LMC058 motion controller and the Modicon M258 logic controller. This modular IP20 I/O system offers a flexible and scalable configuration of extensions and distributed I/O islands. This is made possible by connecting to Modicon controllers (TM5 bus) or via CANopen bus/Sercos bus for Modicon and PacDrive 3 controllers. Flexible and scalable, designed for complex machines.

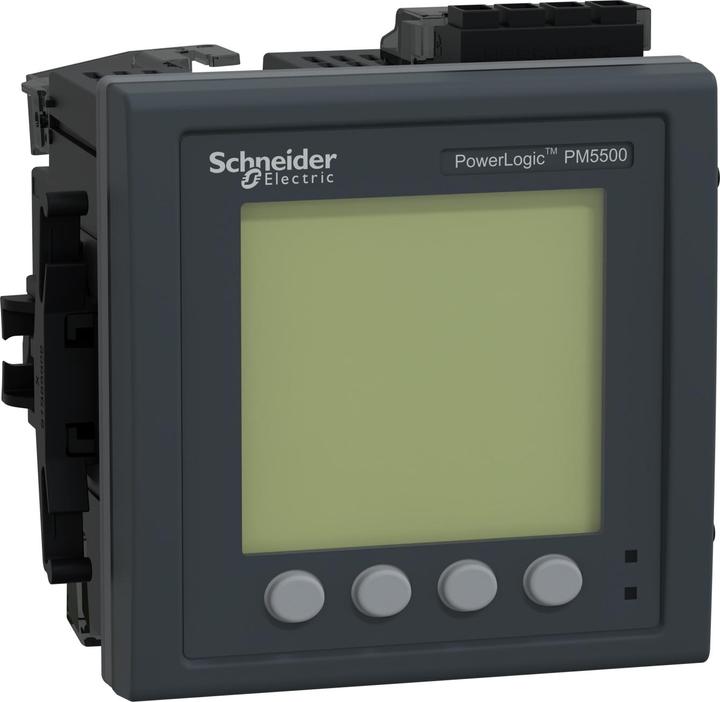

10. Schneider Electric PM5560 meter modbus ethernet 4DI/2DO
Display type: LCD
Number of phases: 3
Depth: 72 mm
Minimum temperature: -25 °C
Maximum temperature: 70 °C
Series: PM5000
You can find model types and technical specifications in the product information guide. The PowerLogic TM PM5000 power meter is the ideal choice for cost management. It provides the measurement capabilities needed to allocate energy consumption, create tenant billing and sub-billing, identify energy-saving opportunities, optimize the efficiency and usage of devices, and assess the power quality of the electrical grid at a high level. Three phases, neutral, and ground can be monitored simultaneously. It measures power quality, collects data, offers graphical display, large characters, and powerful backlighting. Easy-to-understand menus, text available in 8 selectable languages. Highly accurate devices with global billing certifications, IP52 protection rating on the front. Single device in 96 x 96 mm. Applications: cost management, sub-billing/tenant billing, cost allocation, network management, basic monitoring of power quality, min/max monitoring with timestamp, alarms, WAGES monitoring.
