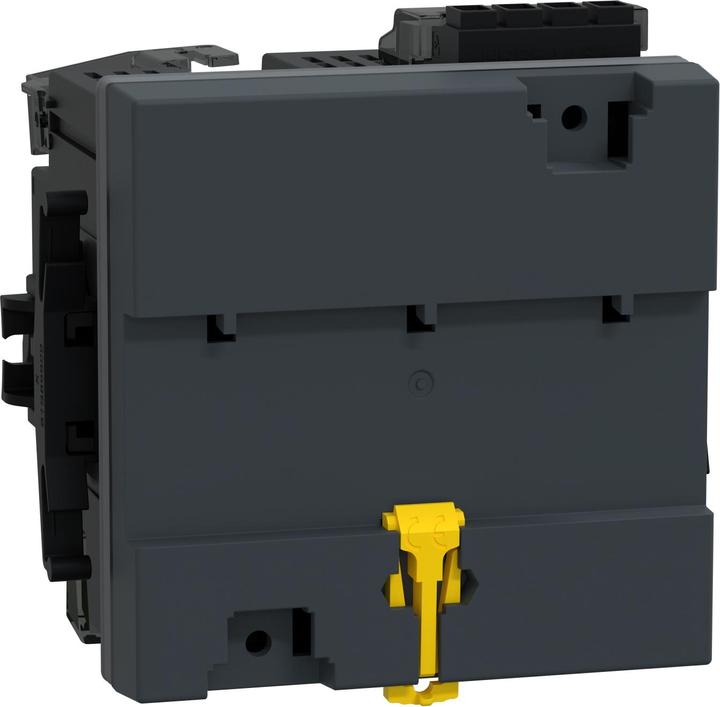

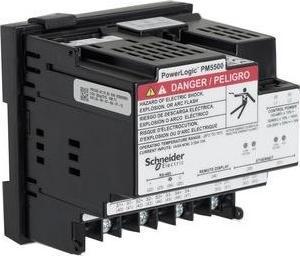

Schneider Electric PM5500 Power Meter, ETH, 4DI-2DO Out,MID

Cutout height: 92 mm
Cutout width: 92 mm
Display type: LCD
Number of phases: 3
Pulse output: Yes
Depth: 90 mm
Accuracy: ±0.2%
Minimum temperature: -25 °C
Series: PM5000

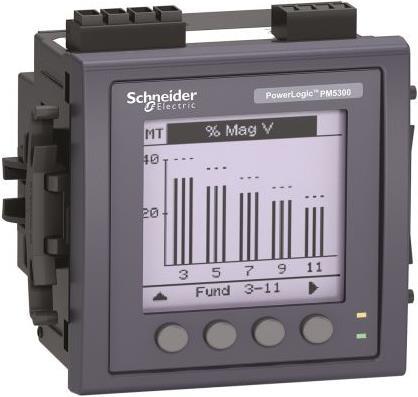

Model types and technical specifications can be found in the product information guide. The PowerLogic TM PM5000 power meter is the ideal choice for cost management. It provides the measurement capabilities needed to allocate energy consumption, create tenant billing and sub-billing, identify energy-saving opportunities, optimize the efficiency and usage of equipment, and assess the power supply quality of the grid at a high level. Three phases, neutral, and ground can be monitored simultaneously. It measures power quality, collects data, provides graphical displays, features large characters, and has powerful backlighting. The menus are easy to understand, and text is available in 8 selectable languages. Very accurate devices with global billing certifications. Protection class IP52 on the front. Single device in 96 x 96 mm. Applications: Cost management – Sub-billing/Tenant billing – Cost allocation, Network management – Basic monitoring of power supply quality – Min/Max monitoring with timestamp – Alarms – WAGES monitoring.
