Best selling Electronics supplies + Casings from Camdenboss

This page always stays fresh and updates automatically.

1. Camdenboss ABS moulded box, 200x250x65mm, grey

Housing material: ABS
External dimensions: 250 x 200 x 64 mm
External length: 250 mm
External width: 200 mm
External height: 64 mm
IP protection class: IP54
Color: Gray
Cover color: Gray
Series: 2000
Shielded: No

Bottom and deep profile cover, 4 x M3 machine screws, PCB adapter. Universal ABS housing, Series 2000. A series of multipurpose electronic enclosures with a sturdy ABS cover, suitable for a variety of applications. Ideal when high electrical components require a housing. Protection class IP54.

Features and benefits:
- Cover and base plate molded from ABS
- Cover secured with four M3 machine screws
- Brass inserts in the base plate for repeated removal of the cover
- Low pull angle for mounting controls on the side walls
- Polished surface for easy cleaning
- Excellent machining properties
- Integrated mounting guides for accommodating 1.6 mm PCBs
- PCB adapter (included) for horizontal PCB mounting
- Withstands temperatures up to 85 °C
- Flammability class UL94-HB

The IP protection class classifies the degree of protection against the ingress of solid objects (including body parts such as hands and fingers), dust, accidental contact, and water in electrical enclosures.

Frequently asked questions:
Can the box be used outdoors? This enclosure has an IP54 protection class and is therefore only protected against splashing water, which is why this product is not recommended for outdoor use. Does this product have EMI shielding? No, this product does not offer EMI shielding.

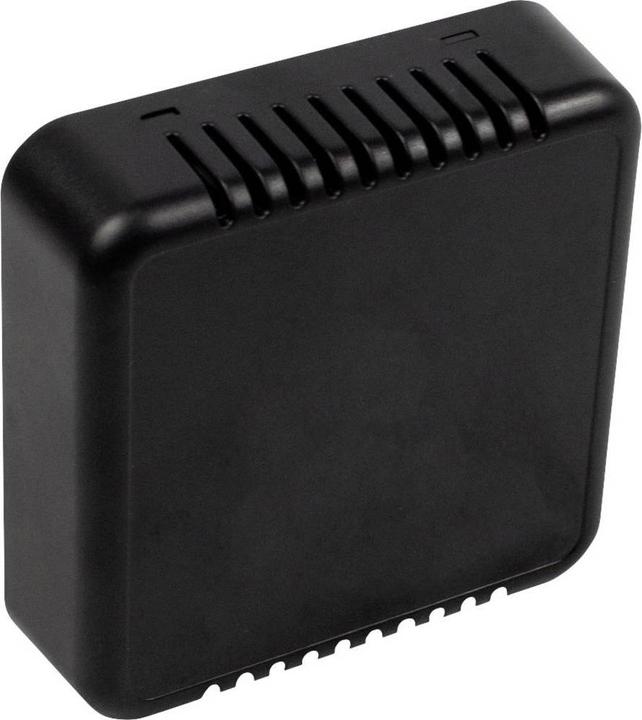

2. Camdenboss Room sensor housing CBRS01 with ventilation slots

Space care housing specifically designed for wall-mounted applications. The housing features ventilation slots. Unauthorized access to the housing electronics is prevented by the intelligent mounting technology (vandalism protection). The housing includes both mounting domes and mounting clips for easy installation of circuit boards. The recessed front allows for easy labeling of the housing. Cutouts for cable exits are available on the back of the housing.

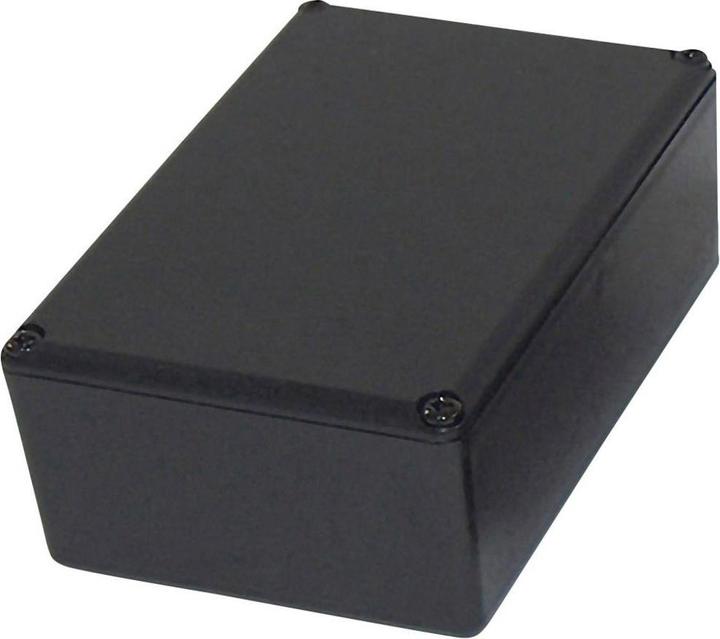

3. Camdenboss Universal small housing RX

The Camdenboss RX Universal Small Enclosure is a practical solution for housing electronic modules. Made from durable ABS material, this enclosure not only provides protection but also features an attractive black finish. With compact internal dimensions of 32 mm width, 20 mm height, and 46 mm depth, it is ideal for various applications in electrical engineering. The enclosure is RoHS compliant, meaning it adheres to European regulations regarding the restriction of hazardous substances. It is excellent for use in development and prototyping, where secure and reliable housing of electronic components is essential. The modular design allows for easy handling and adaptation to specific requirements.

- Made from durable ABS material for longevity
- RoHS compliant, meets European safety standards
- Modular design for versatile applications in electrical engineering.

4. Camdenboss Small housing BIM200

The compact BIM200 enclosure from Camdenboss is a versatile solution for housing electronic components. Made from durable ABS material, this universal enclosure not only features an appealing black finish but also offers high resilience. With compact dimensions of 55 x 55 x 42 mm, it is ideal for various applications in electrical engineering. The IP54 protection rating ensures that the enclosure is protected against dust and splashes, making it a reliable choice for use in different environments. The enclosure is RoHS compliant, meaning it adheres to strict regulations regarding the restriction of hazardous substances. It is compatible with a wide range of hardware components, enhancing flexibility in usage.

- Made from durable ABS material for longevity
- IP54 protection rating for dust and splash resistance
- RoHS compliant, meets environmentally friendly standards.

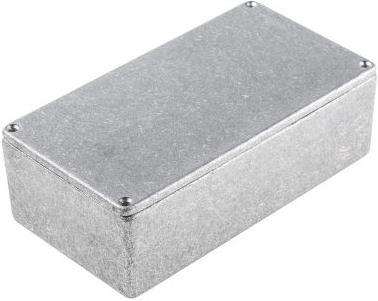

5. Camdenboss Diecast aluminium box, 152x82x50mm

Housing material: Die-cast aluminum
Dimensions (outside): 152 x 82 x 50 mm
Length (outside): 152 mm
Width (outside): 82 mm
Height (outside): 50 mm
IP protection class: IP65
Color: Gray
Cover color: Gray
Series: 5000
Shielded: Yes

Aluminum enclosure IP65, up to 260 °C. Gray die-cast aluminum enclosures with tight fitting lids. Gasket kit allows sealing to IP65. Mounting accessories for optional wall mounting. Temperature protection up to 260 °C. Internal 1.5 mm slot to accept PCBs. Wall thickness: 1.8 mm (nominal).

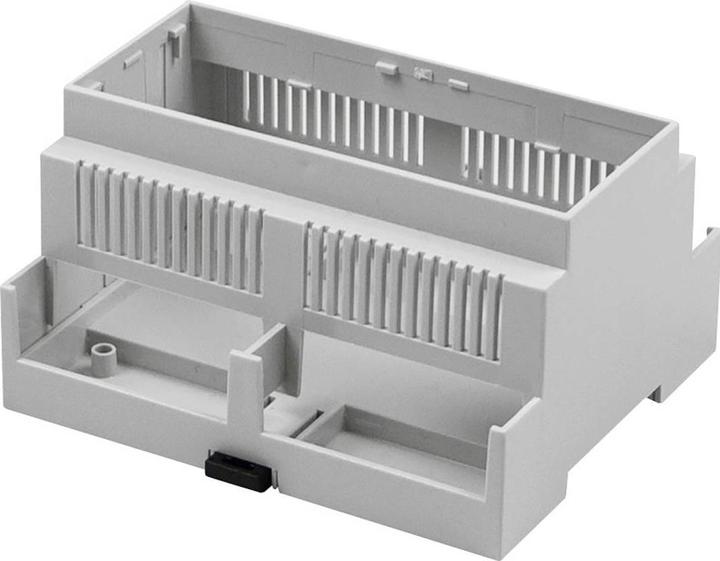

6. Camdenboss CNMB-6V-2-CON Top-hat rail housing 106 x 90 x 58 1 pc.

Modular DIN rail enclosures of the CNMB series with ventilation slots for optimal air circulation, optionally available with a cover and terminal covers. The enclosure offers various options for integrating printed circuit boards: Up to 3 PCBs can be mounted horizontally and up to 2 PCBs vertically using guide rails. Additionally, the PCBs can be secured using mounting domes in the base plate of the enclosure.

7. Camdenboss CNMB-2V-2-CON Top-hat rail housing 36 x 90 x 58 1 pc.

Modular DIN rail enclosures of the CNMB series with ventilation slots for optimal air circulation, optionally available with a cover and clamp covers. The enclosure offers various options for integrating printed circuit boards: Using guide rails, up to 3 PCBs can be mounted horizontally and up to 2 PCBs vertically. Additionally, the PCBs can be secured using mounting domes in the base plate of the enclosure.

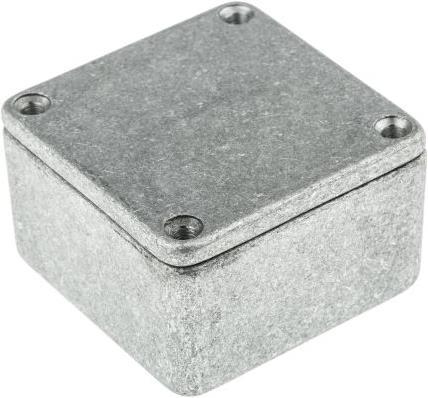

8. Camdenboss Diecast aluminium box, 50x50x31mm

Housing material: Die-cast aluminum
Dimensions (outside): 50 x 50 x 31 mm
Length (outside): 50 mm
Width (outside): 50 mm
Height (outside): 31 mm
IP protection class: IP54
Color: Gray
Cover color: Gray
Series: 5000
Shielded: Yes

Aluminum enclosure IP65, suitable for temperatures up to 260 °C. Gray die-cast aluminum enclosures feature tight-fitting lids. A gasket kit allows sealing to IP65. Mounting accessories are available for optional wall mounting. Temperature protection is rated up to 260 °C. Internal 1.5 mm slot accommodates PCBs. Wall thickness is 1.8 mm (nominal).

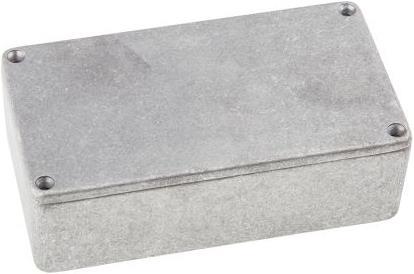

9. Camdenboss Diecast aluminium box, 120x66x40mm

Housing material: Die-cast aluminum
Dimensions (outside): 120 x 66 x 40 mm
Length (outside): 120 mm
Width (outside): 66 mm
Height (outside): 40 mm
IP protection class: IP65
Color: Gray
Cover color: Gray
Series: 5000
Shielded: Yes

This aluminum enclosure is rated IP65 and can withstand temperatures up to 260 °C. It features gray die-cast aluminum with tight-fitting lids. A gasket kit is included for sealing to IP65 standards. Mounting accessories are available for optional wall mounting. The enclosure has internal 1.5 mm slots to accept PCBs and a nominal wall thickness of 1.8 mm.

10. Camdenboss Mehrzweck-Elektronikgehäuse mit Aussparung der Baureihe 1100, massiver Deckel, 75x125x50mm

The multipurpose electronic enclosure of the 1100 series offers a robust and versatile solution for housing electronic components. With a solid lid and a practical cutout, it is ideal for various applications in electrical engineering. The external dimensions are 75 mm in width, 125 mm in length, and 50 mm in height, while the internal dimensions feature a width of 70 mm, a height of 42.5 mm, and a depth of 120 mm. Made from high-quality ABS material, the enclosure ensures high stability and durability. Additionally, it has an IP54 protection rating, meaning it is protected against dust and splashes. The fire protection class UL 94 HB provides extra safety. This enclosure is therefore a reliable choice for anyone who values quality and functionality.

- Robust construction from high-quality ABS material
- IP54 protection rating for dust and splash protection
- Solid lid for added security
- Fire protection class UL 94 HB for increased safety.

Camdenboss Mehrzweck-Elektronikgehäuse mit Aussparung der Baureihe 1100, massiver Deckel, 75x125x50mm (Housing)
Electronics supplies + Casing
CHF22.90

Camdenboss Mehrzweck-Elektronikgehäuse mit Aussparung der Baureihe 1100, massiver Deckel, 75x125x50mm

Housing
