Best WaveShare products in the Development boards + Kits category

On this page you'll find a ranking of the best WaveShare products in this category. To give you a quick overview, we've already ranked the most important information about the products for you.

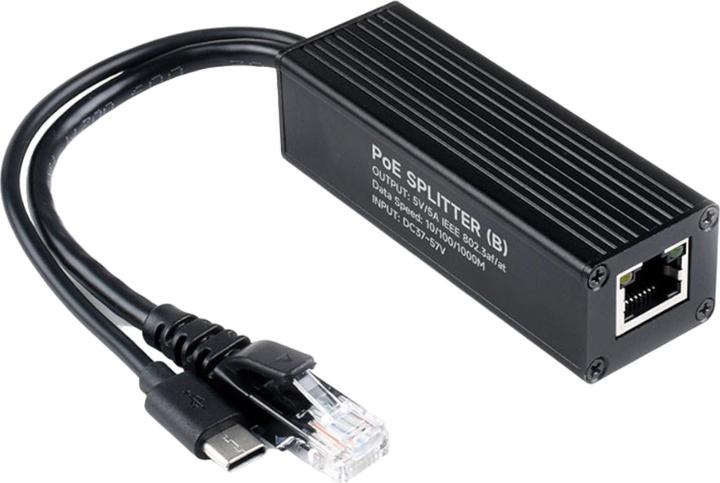

1. WaveShare POE USB-C splitter 5V/5A 25W IEEE 802.3af

The WaveShare POE USB-C Splitter 5V/5A 25W is a reliable solution for powering network-enabled devices such as the Raspberry Pi. Designed for industrial use, this splitter ensures stable performance through its integrated MPS control chip. It supports IEEE 802.3af/at-compliant Gigabit Ethernet connections, allowing for safe and efficient power transmission over the network cable. The robust aluminum housing not only provides excellent heat dissipation but also protects the device from external influences. With an output voltage of 5V, the splitter is ideal for devices that require a constant and reliable power source. Additionally, the isolated switching power supply protects connected devices from surges and other disturbances, enhancing the safety and longevity of the devices.

- MPS control chip for high efficiency and stable performance
- Supports Gigabit Ethernet with speeds up to 1 Gbit/s
- Compatible with IEEE 802.3af/at PoE standard for reliable power supply
- Isolated switching power supply protects against surges
- Robust metal housing for improved protection and heat dissipation.

2. WaveShare SIM7670G 4G LTE/GPS HAT for Raspberry Pi

The SIM7670G 4G LTE/GPS HAT for Raspberry Pi is a versatile development board specifically designed for IoT and GPS applications. It enables reliable 4G LTE connectivity and precise GNSS positioning, making it an ideal choice for projects that require a stable internet connection and accurate location data. The module is compatible with various Raspberry Pi models and supports a wide range of network protocols, including TCP/IP, HTTP(s), and FTP(s). With multiple USB ports for easy expansion and an integrated SIM card slot, this HAT provides a user-friendly solution for developers and hobbyists. Extensive documentation and tutorials facilitate getting started and implementing it in various projects, from vehicle tracking to remote monitoring systems.

- Compatible with Raspberry Pi 4 and 5 via the standard 40PIN GPIO header
- Supports comprehensive network protocols such as TCP/IP, HTTP(s), and SSL
- Precise GNSS positioning through satellite signals
- Three USB ports for easy connection of additional devices
- Extensive online resources and tutorials for various platforms.

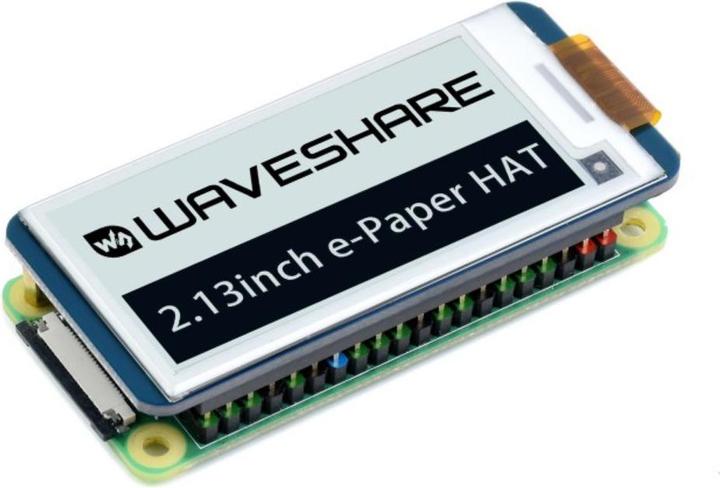

3. WaveShare 250x122 2.13inch Black White E-Ink Display Raspberry Pi HAT

This is a 2.13-inch E-Ink / ePaper display module with a resolution of 250 × 122 pixels, featuring an integrated controller that communicates via the SPI interface. This inexpensive display is perfect for the Raspberry Pi Zero W as it has the same dimensions, but it can also be used with the Raspberry Pi 2B or 3B. The extremely low power consumption makes it highly suitable for battery-powered applications. These displays are commonly used in retail as price tags, where they can operate on a battery for several years. The display offers a very good viewing angle and can be easily read even in sunlight. This black and white display supports partial updates, allowing individual areas to be updated quickly within 0.3 seconds, while updating the entire display takes only 2 seconds.

Features:
- Onboard voltage converter, compatible with 3.3V/5V MCUs
- Supports partial refresh in only 0.3 seconds
- Display images remain on the screen even without a power supply
- Ultra low power consumption, requiring power only for refreshing
- SPI interface for connection to controller boards such as Raspberry Pi, Arduino, ESP8266, or ESP32
- Compatible with Raspberry Pi 2B/3B/Zero/Zero W
- Good documentation and sample code available

Technical details:
- Manufacturer: Waveshare
- Operating voltage: 3.3V / 5V
- Interface: 3-wire SPI, 4-wire SPI
- Outer dimension: 65mm × 30.2mm
- Display dimension: 23.71mm × 48.55mm
- Pixel size: 0.194mm × 0.194mm
- Resolution: 250 x 122
- Display color: Black, White
- Grey level: 2
- Partial refresh time: 0.3s
- Full refresh time: 2s
- Refresh power: 26.4mW (typ.)
- Standby power: 170
- Weight: 17g

Included in delivery:
- 1x 250x122 2.13-inch Black / White E-Ink Display Raspberry Pi HAT
- 1x Mounting material for Raspberry Pi
- 1x PH2.0 8-pin 20cm cable for STM32 or alternative microcontroller.

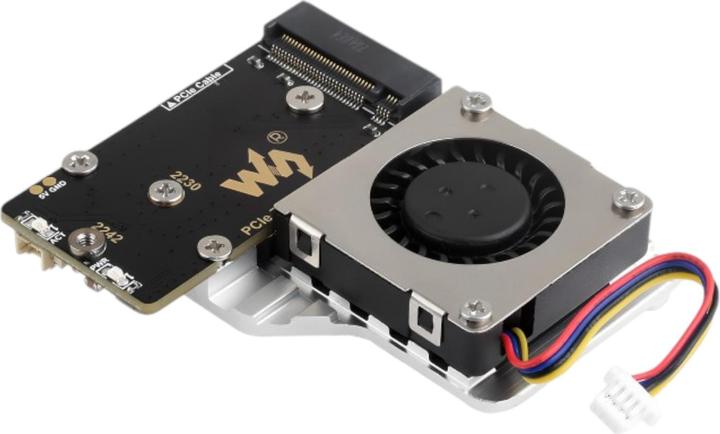

4. WaveShare PCIe to M.2 SSD adapter with cooler (E) for Raspberry Pi 5

The PCIe to M.2 SSD Adapter with Cooler (E) for Raspberry Pi 5 from WaveShare is an innovative solution for expanding storage and enhancing the performance of the Raspberry Pi 5. This adapter allows for seamless integration of M.2 NVMe SSDs in sizes 2230 and 2242 and supports both PCIe Gen2 and Gen3, resulting in high data rates. The integrated heatsink with an active fan ensures effective temperature control, thereby increasing the longevity of the components. Installing the adapter is straightforward, and it provides a stable connection via the 16-pin interface. The onboard LED indicators make it easy to monitor the operational status, which is particularly beneficial for intensive applications. The adapter is ideal for various projects, whether for storage expansion or as a system drive, offering a cost-effective solution for demanding applications. The ability to boot directly from the SSD makes it a valuable addition to any setup.

- Supports M.2 NVMe SSDs in sizes 2230 and 2242
- Integrated heatsink with active fan for optimal temperature control
- Easy installation and stable connection via 16-pin interface
- Onboard LED indicators for monitoring operational status
- Allows booting directly from the SSD through firmware adjustments.

5. WaveShare Industrieller USB zu RS485 Konverter

This is an industrial USB to RS485 converter from Waveshare with an original FT232RL chip. The USB to RS485 converter is very easy to use, allowing automatic sending and receiving of data via RS485. With this RS485 adapter, you can control Arduinos via a PC that are connected via RS485. The installation is very simple; first, install the drivers for the FT232R, and then you can select the serial USB port and send data to the RS485 via a serial console.

Features:
- USB to RS485 communication
- Original FT232RL
- Onboard TVS (Transient Voltage Suppressor) for voltage pulse protection
- Self-resetting fuse and protection diodes
- 3 LEDs to indicate operating states such as transmit, receive, and operating voltage

Technical details:
- Built-in RS485 chip: FT232RL
- Baud rate: 300-921600bps
- Host port: USB
- Device port: RS485
- USB:
- Operating voltage: 5V
- Connector: USB-A
- Protection: 200mA self-resetting fuse, ESD protection
- Transmission range: about 5m
- RS485:
- Connection: Screw terminal
- Pins: A+, B-, GND
- Transmit/receive: automatic hardware control
- Protection: 600W against lightning and overvoltage, 15KV ESD protection (integrated 120R balancing resistor)
- Transmission distance: about 1200m (low baud rate)
- Transmission mode: point-to-multipoint (up to 32 nodes, use of repeaters is recommended for 16 nodes or more)
- LED indicators:
- PWR: Red power indicator, lights up when USB connection is established and voltage is detected.
- TXD: TX indicator LED, lights up when the USB port is sending data.
- RXD: RX indicator LED, lights up when the device ports are sending data back.
- Ambient conditions:
- Temperature: -15°C to +70°C
- Humidity: 5%RH to 95%RH
- Operating system: Mac, Linux, Android, WinCE, Windows 10/8.1/8/7/XP
- Dimension: 75 x 24 x 15mm
- Weight: 88.3g

Scope of delivery:
- 1x Industrial USB to RS485 converter
- 1x 1.2m USB extension cable.

6. WaveShare ESP32-S3 development board

The ESP32-S3-DEV-KIT-N8R8 is a compact microcontroller development board with a variety of interfaces. It features the powerful ESP32-S3-WROOM-1-N8R8 module, which includes a 240MHz Xtensa 32-bit LX7 dual-core processor, 512KB SRAM (TCM), and 8MB PSRAM. The board is also equipped with a CH343 serial port and a CH334 USB HUB dual-chip, allowing for simultaneous USB and UART usage. With its compatibility with the ESP32-S3-DevKitC-1 development board and the ability to connect a wide range of peripherals, it offers convenient development and application options. Additionally, it supports development environments such as ESP-IDF, Arduino, and MicroPython, enabling a quick start in development and customization for various products.

Features:
The ESP32-S3-DEV-KIT-N8R8 is compatible with the pin layout of the ESP32-S3-DevKitC-1 development board.

Technical Details:
Manufacturer: Waveshare
Manufacturer SKU: 24363
Onboard Module: ESP32-S3-WROOM-1-N8R8
Processor: Xtensa 32-bit LX7 Dual-Core
Processor Clock Speed: 240MHz
SRAM: 512KB
ROM: 384KB
PSRAM: 8MB
Flash Memory: 8MB
Connectivity: 2.4GHz Wifi, Bluetooth 5 LE, Bluetooth Mesh
Connections: 1x USB Type-C
USB/UART Chips: CH343, CH334
Supported Software: ESP-IDF, Arduino, MicroPython
Dimensions: 63.30 x 25.40 x 4.8mm
Weight: 14.3g

Included in the package:
1x ESP32-S3-DEV-KIT-N8R8
2x 40PIN male header strips.

7. WaveShare Micro Servo MG90S with metal gearbox

The small, affordable micro servo is excellent for many applications. The servo features a robust metal gearbox. It can be easily operated with the Arduino Servo Library. If you want to operate multiple servos, there is also a motor shield or a servo driver with 16 channels available.

Connections for MG90S Servo:
Orange: PWM/control signal
Red: 5VDC
Brown: GND

Technical details:
Gearbox: Metal
Rotation angle: 180°
Operating voltage: 4.8 to 6V
Torque: 2.0kg/cm at 4.8V or 2.8kg/cm at 6V
Speed at 4.8V: 0.11sec/60 degrees
Speed at 6V: 0.09sec/60 degrees
Cable length: 250mm
Size: 22.8 x 12.2 x 28.5mm
Weight: 12.2g

Delivery includes:
1x TowerPro Micro Servo MG90S with metal gearbox
3x Servo arms
1x Screw for servo arm
2x Mounting screws.

8. WaveShare ESP32-C6 Zero Mini development board

Discover the ESP32-C6 Zero Mini development board, your perfect companion for a wide range of IoT projects. Equipped with a powerful ESP32-C6-MINI-1 chip, this board offers impressive performance with minimal power consumption. With a 160 MHz RISC-V 32-bit single-core CPU, 320KB ROM, 512KB HP SRAM, 16KB LP SRAM, and 4MB Flash, it is ideal for various applications. Thanks to the integrated 2.4GHz WiFi 6 and Bluetooth 5.0 support, you are always connected. The compact dimensions and Raspberry Pi Pico-compatible interfaces make it extremely versatile and easy to integrate. Start your projects immediately with ESP-IDF and Arduino support.

Recommended accessories:
- Male header 1 x 40 pin RM 2.54mm straight short pin
- USB-C magnetic charging data cable angled 1m

Features:
- Equipped with the ESP32-C6-MINI-1 chip and a 160 MHz RISC-V 32-bit single-core CPU.
- Built-in 320KB ROM, 512KB HP SRAM, 16KB LP SRAM, and 4MB Flash memory.
- Supports 2.4GHz WiFi 6 and Bluetooth 5.0 for superior wireless communication.
- Type-C connector for easy handling.
- Compatible with Raspberry Pi Pico interfaces for versatility.
- Multiple power-saving modes to adapt power consumption to the application.

Application examples:
- Smart home controls: Develop intelligent lighting systems or thermostats.
- IoT sensor networks: Monitor environmental conditions with networked sensors.
- Wearable devices: Build wearable health monitoring devices.

Technical specifications:
- Manufacturer: Waveshare
- Manufacturer SKU: 27035
- Processor: ESP32-C6 RISC-V 32-bit single-core, 160 MHz
- Memory: 320KB ROM, 512KB HP SRAM, 16KB LP SRAM, 4MB Flash
- Wireless communication: 2.4GHz WiFi 6, Bluetooth 5.0
- Interfaces: Raspberry Pi Pico-compatible headers, Type-C connector
- Power supply: 5V via USB Type-C
- Dimension: 18 x 23.5 x 5mm
- Weight: 3.5g

Scope of delivery:
1 x ESP32-C6 Zero Mini development board.

9. WaveShare ESP32-C6 Zero Mini development board with headers

Discover the ESP32-C6 Zero Mini development board - your perfect companion for a wide range of IoT projects. Equipped with a powerful ESP32-C6-MINI-1 chip, this board offers impressive performance with minimal power consumption. With a 160 MHz RISC-V 32-bit single-core CPU, 320KB ROM, 512KB HP SRAM, 16KB LP SRAM and 4MB Flash, it is ideal for a variety of applications. Thanks to the integrated 2.4GHz WiFi 6 and Bluetooth 5.0 support, you are always connected. The compact dimensions and Raspberry Pi Pico-compatible interfaces make it extremely versatile and easy to integrate. Start your projects immediately with ESP-IDF and Arduino support.

Recommended accessories:
USB-C magnetic charging data cable angled 1m

Features:
Equipped with the ESP32-C6-MINI-1 chip and a 160 MHz RISC-V 32-bit single-core CPU.
Built-in 320KB ROM, 512KB HP SRAM, 16KB LP SRAM and 4MB Flash memory.
Supports 2.4GHz WiFi 6 and Bluetooth 5.0 for superior wireless communication.
Type-C connector for easy handling.
Compatible with Raspberry Pi Pico interfaces for versatility.
Multiple power saving modes to adapt power consumption to the application.

Application examples:
Smart home controls: Develop intelligent lighting systems or thermostats.
IoT sensor networks: Monitor environmental conditions with networked sensors.
Wearable devices: Build wearable health monitoring devices.

Documentation:
Waveshare Wiki

Technical specifications:
Manufacturer: Waveshare
Manufacturer SKU: 26976
Processor: ESP32-C6 RISC-V 32-Bit Single-Core, 160 MHz
Memory: 320KB ROM, 512KB HP SRAM, 16KB LP SRAM, 4MB Flash
Wireless communication: 2.4GHz WiFi 6, Bluetooth 5.0
Interfaces: Raspberry Pi Pico-compatible headers, Type-C connector
Power supply: 5V via USB Type-C
Dimension: 18 x 23.5 x 5mm
Weight: 3.2g

Scope of delivery:
1 x ESP32-C6 Zero Mini development board with headers.

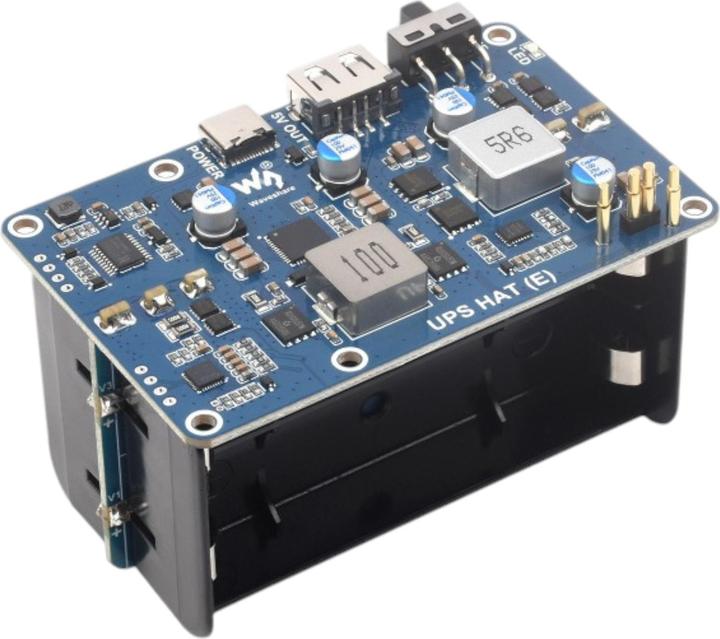

10. WaveShare UPS HAT (E) 6A 4x21700 battery board for Raspberry Pi 5/ 4B/ 3B+

The WaveShare UPS HAT (E) 6A 4x21700 battery board provides a reliable uninterruptible power supply for Raspberry Pi 5, 4B, and 3B+. This compact development board allows the use of up to four 21700 lithium batteries to continuously power the Raspberry Pi even during power outages. With a Type-C connector, the board supports bidirectional fast charging with a power output of up to 40 watts. The stable output voltage of 5V and 6A ensures that even more demanding applications are reliably powered. The board is compatible with the I2C bus, enabling real-time monitoring of the battery and power connection status. Power is supplied through pogo pins, keeping the GPIO port free for other applications. This product is ideal for projects that rely on a continuous power supply and minimizes the risk of data loss due to power interruptions.

- Bidirectional fast charging via USB-C with up to 40 watts
- Compatible with up to four 21700 lithium batteries
- Real-time monitoring of operational status via I2C bus
- Stable 5V/6A output for demanding applications
- Power supply via pogo pins to keep GPIO port free.
