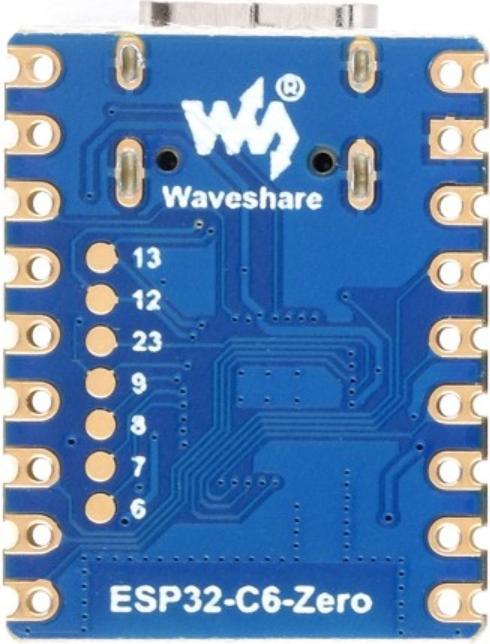

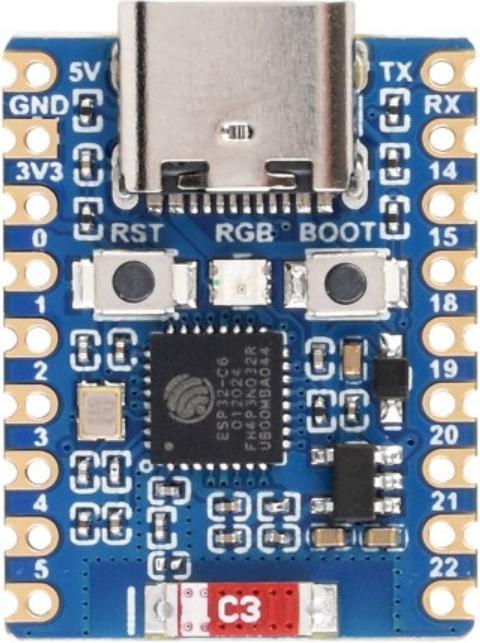

Discover the ESP32-C6 Zero Mini development board, your perfect companion for a wide range of IoT projects. Equipped with a powerful ESP32-C6-MINI-1 chip, this board offers impressive performance with minimal power consumption. With a 160 MHz RISC-V 32-bit single-core CPU, 320KB ROM, 512KB HP SRAM, 16KB LP SRAM, and 4MB Flash, it is ideal for various applications. Thanks to the integrated 2.4GHz WiFi 6 and Bluetooth 5.0 support, you are always connected. The compact dimensions and Raspberry Pi Pico-compatible interfaces make it extremely versatile and easy to integrate. Start your projects immediately with ESP-IDF and Arduino support.
Recommended accessories:
Features:
Application examples:
Technical specifications:
Scope of delivery:
1 x ESP32-C6 Zero Mini development board.
Development board type | Board |
Memory | 0.51 MB |
Processor family | Tensilica |
Processor type | ESP32 |
Clock speed | 160 MHz |
Number of cores | 1 |
Item number | 45989973 |
Manufacturer | WaveShare |
Category | Development boards + Kits |
Release date | 21.5.2024 |
Sales rank in Category Development boards + Kits | 379 of 2814 |
Development board type | Board |
Processor family | Tensilica |
Processor type | ESP32 |
Clock speed | 160 MHz |
Memory | 0.51 MB |
Number of cores | 1 |
Flash memory | 4000 kB |
Power supply | USB power delivery |
Operating voltage | 5 V |
Wireless transmission | Bluetooth, Wi-Fi |
Wi-Fi standard | Wi-Fi 6 / 802.11ax |
Bluetooth version | 5.0 |
USB ports | USB-C |
Country of origin | China |
CO₂-Emission | |
Climate contribution |
Scope of delivery | 1 x ESP32-C6 Zero Mini development board |
Additionally required (not included) | Male connector Male 1 X 40 pin RM 2.54mm straight short pin, USB-C magnetic charging data cable angled 1m |
Length | 23.50 mm |
Width | 18 mm |
Height | 5 mm |
Weight | 3.50 g |
