Best selling Controller cards from Exsys
On this page you'll find a ranking of the best Exsys products in this category. To give you a quick overview, we've already ranked the most important information about the products for you.
1. Exsys GmbH USB 3.2 Gen2 PCIe (x2) card with 5 ports (3A+2C connections)
The EX-12006 USB 3.2 Gen 2x1 with PCIe Slot (Gen3x4) card provides five external super-speed+ USB 3.2 Gen 2x1 ports, including three USB-A and two USB-C connectors. It is designed to connect two additional USB 1.1, 2.0, 3.0, and 3.2 Gen 2 end devices to your workstation, desktop, or server. It supports USB 1.1 low-speed (1.5 Mbps), full-speed (12 Mbps), USB 2.0 high-speed (480 Mbps), USB 3.0 super-speed (5 Gbps), and USB 3.2 Gen 2x1 super-speed+ (10 Gbps). This technology is ideal for external storage, digital cameras, webcams, scanners, and more. The EX-12006 supports 3.0A power to the external USB 3.2 Gen 2x1 ports with USB-C connectors.
- USB 3.2 Gen 2x1 PCIe x4 card with three USB-A and two USB-C female connectors
- Compliant with USB 3.2 Rev. 1.0 and Intel xHCI Rev. 1.0 specifications
- Fully PCI Express Gen3 Specification compliant
- Compatible with USB Attached SCSI Protocol Rev. 1.0
- Supports hot swapping and plug-and-play
- Support at USB-A female port: 0.9 Amper / 5 Volt / 4.5 Watt
- Support at USB-C female port: 3.0 Amper / 5 Volt / 15.0 Watt
- Supports up to 127 USB devices (USB 1.1, USB 2.0, USB 3.0, and USB 3.2 Gen 2x1)
- Chipset: Asmedia ASM3142
Packaging contents:
EX-12006, Driver CD, Manual.
2. Exsys PCI-E card 4x USB 3.2 Gen 1
The EX-11194 USB 3.2 Gen 1 PCIe card provides four external Super-Speed USB 3.2 Gen 1 ports. It is designed to connect multiple USB 1.1, 2.0, or 3.2 Gen 1 devices to your workstation, desktop, or server. It supports USB 1.1 Low-Speed (1.5 Mbps), Full-Speed (12 Mbps), USB 2.0 High-Speed (480 Mbps), and USB 3.2 Gen 1 Super-Speed (5 Gbps). This card is the perfect technology for external storage enclosures, digital cameras, webcams, scanners, and more. It is self-powered and supports 3.0 A of power at each port. The EX-11194 comes with a low-profile bracket that allows installation in slim PC cases with a maximum height of 8 cm.
USB 3.2 Gen 1 PCIe card with four external ports
Supports 3.0 A at each port
Compatible with Microsoft Windows Standard Open HCD drivers
Supports up to 123 devices
Fully compliant with PCI Express Gen 2 specifications
Backward compatible with USB 1.1 and 2.0
Hot swapping and plug-and-play
Chipset: Renesas D720201
Package contents:
EX-11194, low-profile bracket, CD, manual.

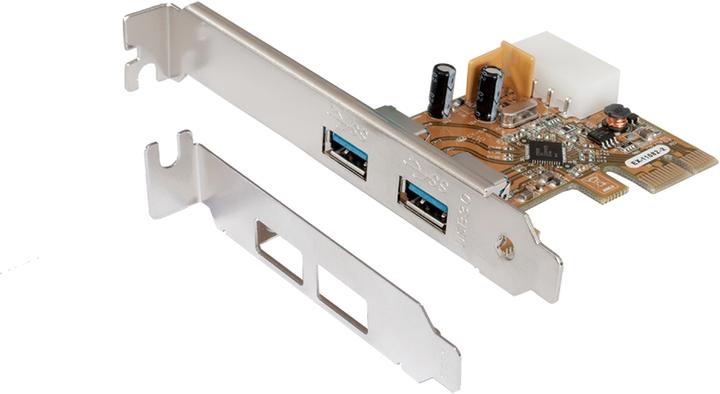

3. Exsys Ex-11092-2
The EX-11092-2 USB 3.0 PCI-Express card provides two screwable USB 3.0 ports. It is designed to connect two additional USB 1.1, 2.0, or 3.0 devices to your workstation, desktop, or server. It supports USB 1.1 Low-Speed (1.5 Mbps), Full-Speed (12 Mbps), USB 2.0 High-Speed (480 Mbps), and USB 3.0 Super-Speed (5 Gbps). It is ideal for external storage enclosures, digital cameras, webcams, scanners, and more. To support the power of 900 mA at the external USB 3.0 ports, no additional power connection from the PC power supply is required.
4. Exsys PCI-E to 4x PCI Expansion Box
The EX-1012 is an external expansion box with four PCI slots for expanding or supplementing PCI connections via a PCI Express slot. No jumpers are required for setting the I/O addresses and interrupts, as these are automatically assigned by the motherboard. The EX-1012 can be operated in addition to the motherboard PCI connections and supports all standard PCI I/O cards (e.g., serial, parallel, USB, FireWire, etc.) with 5 and 3.3 volts. Included in the package are a PCIe host adapter card, a USB-C extension cable, and the expansion box itself. The EX-1012 provides immediate PCI bus expansion through the PCI Express slot of any computer system. No drivers or software installation is required. An external 12V/3A power supply is included with the EX-1012.
Note: The USB-C cable is only for connecting the box to the PCIe host adapter card. The box cannot be directly connected to the USB-C port of a laptop or PC.
- 4x PCI slots expandable via a PCIe slot from the computer, connected with a C cable (not suitable for direct connection to the USB-C port of a laptop or PC)
- Supports both 5V and 3.3V add-on cards
- Fully compliant with PCI Express Base, PCI slots comply with PCI Bus Rev. 2.3, Specifications, Revision 1.0a
- PCI Express Advanced Error Reporting Capability including ECRC
- Sturdy metal housing, suitable for industrial applications
- Supports Extended Virtual Channel (VC) and Active State Link Power Management
- Low profile bracket with a maximum height of 8 cm included
- Requires a 12V/3A power supply (included)
- LED indicators for power and cable.

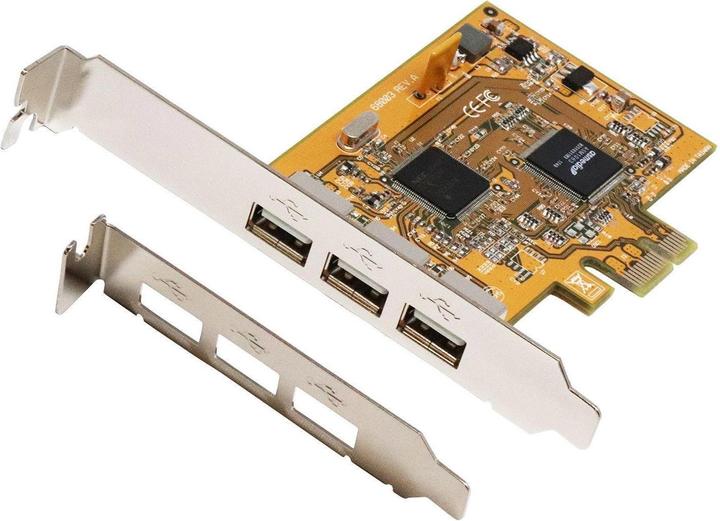

5. Exsys PCIe EX-11053, 3 port USB 2.0
The EX-11053 USB 2.0 PCIe bus card provides three external ports that are fully compatible with OHCI specifications 1.1 and USB 2.0 ECHI standards. It is designed to expand a total of three additional USB high-speed ports for PCs, workstations, or servers via the PCIe bus. It also supports older USB 1.1 peripherals and is the optimal expansion card for external hard drive enclosures, digital cameras, webcams, scanners, and many other peripherals. The EX-11053 comes with a low-profile bracket for slim computer cases up to 8 cm in height.
USB 2.0 PCIe card with three external connections
Compatible with Microsoft Windows Standard Open HCD drivers
Supports up to 127 devices
Fully compliant with PCI Express Base Specifications, Revision 1.0a/1.1
USB 1.1 backward compatible
Hot swapping
Plug-and-play
Low-profile bracket included
Package contents:
EX-11053, low-profile bracket, manual.
6. Exsys GmbH 2 Port USB 3.2 Gen2 PCIe (x4) Card with 2x C™ Connector (Asmedia)
The EX-12000 USB 3.2 Gen 2x1 PCIe Slot (Gen3x4) card provides two external Super-Speed+ USB 3.2 Gen 2x1 ports with 2x USB-C connectors. It is designed to connect two additional USB 1.1, 2.0, 3.0, and 3.2 Gen 2 devices to your workstation, desktop, or server. It supports USB 1.1 Low-Speed (1.5 Mbps), Full-Speed (12 Mbps), USB 2.0 High-Speed (480 Mbps), USB 3.0 Super-Speed (5 Gbps), and USB 3.2 Gen 2x1 Super-Speed+ (10 Gbps). This technology is perfect for external storage, digital cameras, webcams, scanners, and more. The EX-12000 supports 3.0 A power at the external USB 3.2 Gen 2x1 ports. A low-profile bracket is included for narrow cases with a maximum height of 8 cm.
USB 3.2 Gen 2x1 PCIe x4 card with two USB-C connectors
Compatible with USB 3.2 Rev. 1.0 and Intel xHCI Rev. 1.0 specifications
Compatible with PCI-Express Gen3 specifications
Compatible with USB Attached SCSI Protocol Rev. 1.0
Supports "Hot Swapping" and "Plug-and-Play"
Supports at the output USB-C connector: 3.0 Amperes / 5 Volts / 15.0 Watts
Supports up to 127 USB devices (USB 2.0, USB 3.0, and USB 3.2 Gen 2)
Low-profile bracket included
Chipset: Asmedia ASM3142
Package contents:
EX-12000, low-profile bracket, driver CD, manual.
Controller cards
CHF49.90
Exsys GmbH 2 Port USB 3.2 Gen2 PCIe (x4) Card with 2x C™ Connector (Asmedia)
7. Exsys EX-1083, 3 port USB 2.0
The EX-1083 USB 2.0 PCI bus card provides three external ports that are fully compatible with OHCI specifications 1.1 and USB 2.0 ECHI standards. It is designed to expand a total of three additional USB high-speed ports for PCs, workstations, or servers via the PCI bus. It also supports older USB 1.1 peripherals. This is the optimal expansion card for external hard drive enclosures, digital cameras, webcams, scanners, and many other peripherals. The EX-1083 comes with a low-profile bracket for slim computer cases up to 8 cm in height.
USB Version 1.1 to 2.0
Compatible with Microsoft Windows Standard Open HCD drivers
Supports up to 127 devices
Supports 32-bit PCI bus and PCI-X bus with 5V and 3.3V (33MHz)
Supports "Hot Swapping" and "Plug-and-Play"
Chipset: NEC
Package contents:
EX-1083, low-profile bracket, manual.

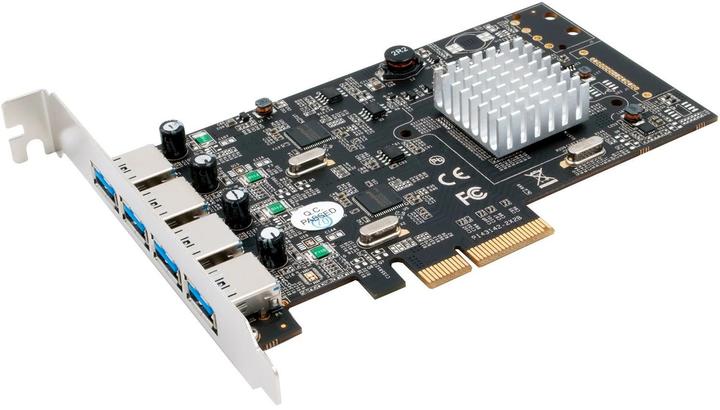

8. Exsys GmbH PCIe USB 3.2 Gen 1 card with 4 ports (VIA chip set)
The EX-11044 USB 3.2 Gen 1 PCIe card provides four external Super-Speed USB 3.2 Gen 1 ports. It is designed to connect multiple USB 1.1, 2.0, or 3.2 Gen 1 devices to your workstation, desktop, or server. It supports USB 1.1 Low-Speed (1.5 Mbps), Full-Speed (12 Mbps), USB 2.0 High-Speed (480 Mbps), and USB 3.2 Gen 1 Super-Speed (5 Gbps). It is the perfect technology for external storage, digital cameras, webcams, scanners, and more. The EX-11044 comes with a low-profile bracket for slim cases with a maximum height of 8 cm.
USB 3.2 Gen 1 PCIe card with four external ports
Compatible with Microsoft Windows Standard Open HCD drivers
Supports up to 123 devices
Fully compliant with PCI Express Gen 2 specifications
Backward compatible with USB 1.1 and 2.0
Hot swapping
Plug-and-play
Chipset: VIA VL805
Package contents:
EX-11044, low-profile bracket, driver CD, manual.

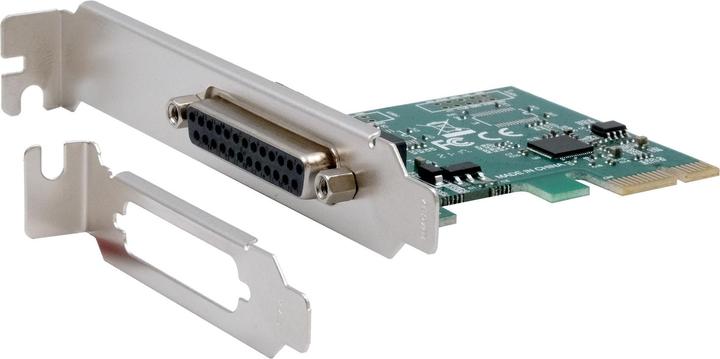

9. Exsys PCIe card 2P Parallel EPP/ECP incl.LowProfileB?gel,ASIX chipset
The EX-46001 PCI-Express parallel card provides a parallel SPP/EPP/ECP high-performance output. It expands your PC, workstation, or server with an additional parallel output via the PCI-Express bus. With the EX-46001, there are no conflicts with IRQ and I/O addresses, and it is PCIe Plug-and-Play compatible. The package includes a low-profile bracket for installation in slim PC cases.
PCI-Express x1 parallel card with one port
Interface: SPP (Standard Parallel Port), EPP (Enhanced Parallel Port), ECP (Enhanced Capacity Port)
I/O addresses and interrupts are assigned by the operating system, IRQ sharing
PCIe interface compatible with Rev. 1.0a to 3.0 specifications
Compatible with IEEE 1284-SPP/Byte/ECP mode
128 Byte FIFO Buffer
Package contents:
EX-46001, low-profile bracket, driver CD, manual.

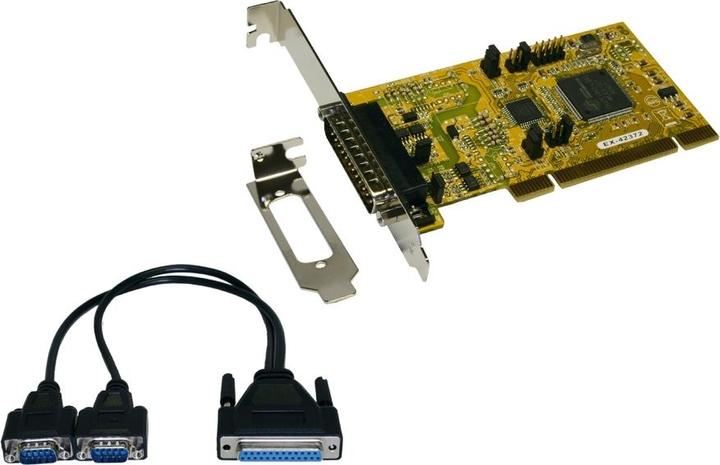

10. Exsys PCI 2S serial RS-422/485 card including Octopus cable and LowProfile bracket (Ox
Controller cards
CHF93.90
Exsys PCI 2S serial RS-422/485 card including Octopus cable and LowProfile bracket (Ox
