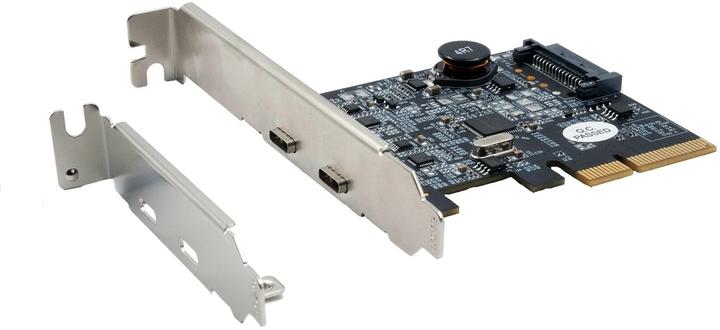

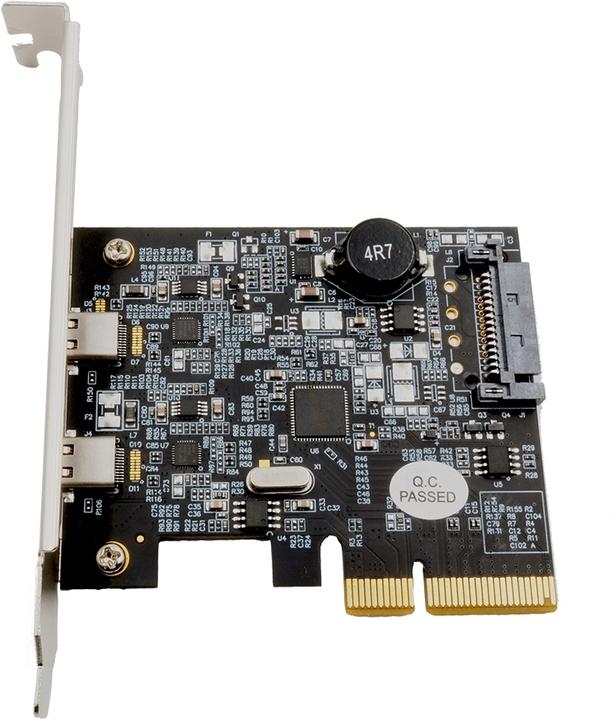

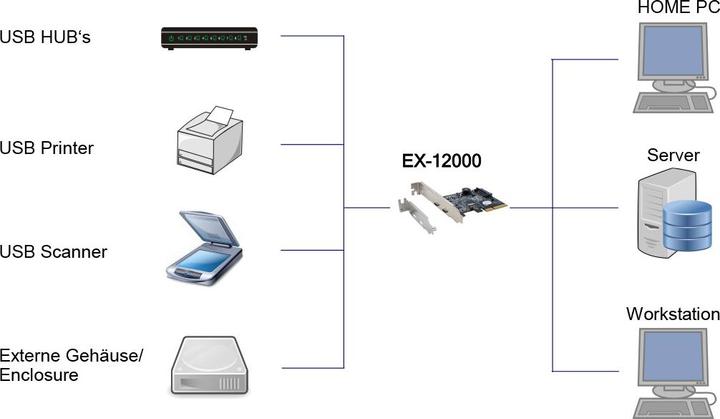

The EX-12000 USB 3.2 Gen 2x1 PCIe Slot (Gen3x4) card provides two external Super-Speed+ USB 3.2 Gen 2x1 ports with 2x USB-C connectors. It is designed to connect two additional USB 1.1, 2.0, 3.0, and 3.2 Gen 2 devices to your workstation, desktop, or server. It supports USB 1.1 Low-Speed (1.5 Mbps), Full-Speed (12 Mbps), USB 2.0 High-Speed (480 Mbps), USB 3.0 Super-Speed (5 Gbps), and USB 3.2 Gen 2x1 Super-Speed+ (10 Gbps). This technology is perfect for external storage, digital cameras, webcams, scanners, and more. The EX-12000 supports 3.0 A power at the external USB 3.2 Gen 2x1 ports. A low-profile bracket is included for narrow cases with a maximum height of 8 cm.
USB 3.2 Gen 2x1 PCIe x4 card with two USB-C connectors
Compatible with USB 3.2 Rev. 1.0 and Intel xHCI Rev. 1.0 specifications
Compatible with PCI-Express Gen3 specifications
Compatible with USB Attached SCSI Protocol Rev. 1.0
Supports "Hot Swapping" and "Plug-and-Play"
Supports at the output USB-C connector: 3.0 Amperes / 5 Volts / 15.0 Watts
Supports up to 127 USB devices (USB 2.0, USB 3.0, and USB 3.2 Gen 2)
Low-profile bracket included
Chipset: Asmedia ASM3142
Package contents:
EX-12000, low-profile bracket, driver CD, manual.
Expansion card form factor | Low profile |
USB ports | USB-A |
Exact USB ports | USB-A 3.2 Gen 2 (2x) |
Internal connection options | PCI Express x4 (1x) |
Expansion slot | PCI Express x4 (1x) |
Documents | |
Item number | 16667552 |
Manufacturer | Exsys |
Category | Controller cards |
Manufacturer no. | EX-12000 |
Release date | 28.4.2021 |
Expansion card form factor | Low profile |
USB ports | USB-A |
Exact USB ports | USB-A 3.2 Gen 2 (2x) |
Internal connection options | PCI Express x4 (1x) |
Expansion slot | PCI Express x4 (1x) |
Country of origin | China |
CO₂-Emission | |
Climate contribution |
Weight | 115 g |
Width | 150 mm |
Length | 222 mm |
