Exsys PCI-E to 4x PCI Expansion Box

The EX-1012 is an external expansion box with four PCI slots for expanding or supplementing PCI connections via a PCI Express slot. No jumpers are required for setting the I/O addresses and interrupts, as these are automatically assigned by the motherboard. The EX-1012 can be operated in addition to the motherboard PCI connections and supports all standard PCI I/O cards (e.g., serial, parallel, USB, FireWire, etc.) with 5 and 3.3 volts. Included in the package are a PCIe host adapter card, a USB-C extension cable, and the expansion box itself. The EX-1012 provides immediate PCI bus expansion through the PCI Express slot of any computer system. No drivers or software installation is required. An external 12V/3A power supply is included with the EX-1012.

Note: The USB-C cable is only for connecting the box to the PCIe host adapter card. The box cannot be directly connected to the USB-C port of a laptop or PC.

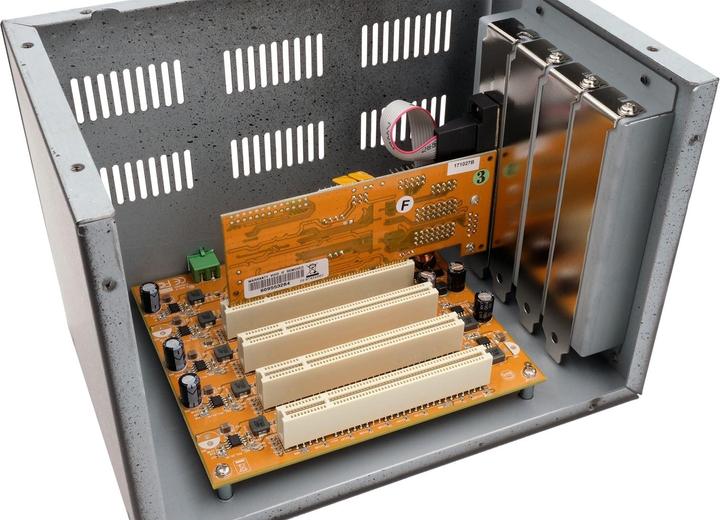

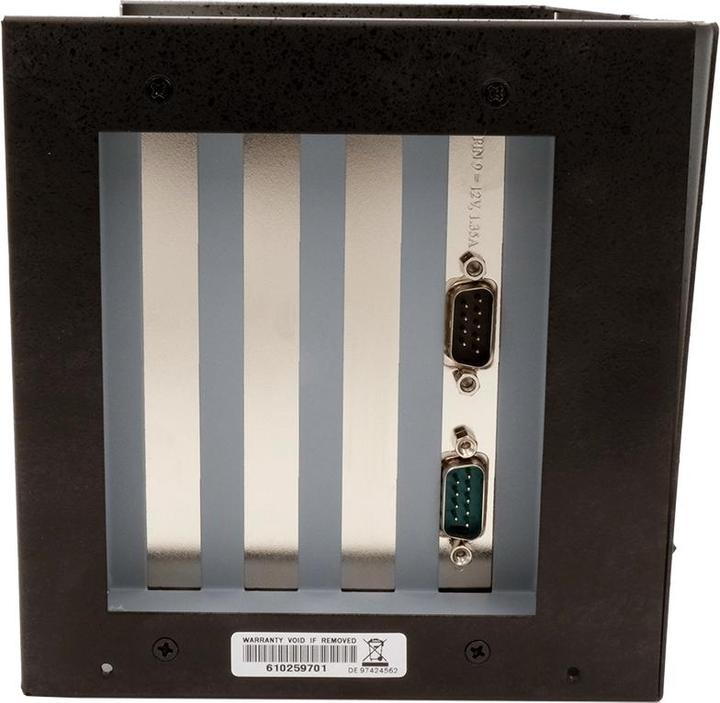

• 4x PCI slots expandable via a PCIe slot from the computer, connected with a C cable (not suitable for direct connection to the USB-C port of a laptop or PC)
• Supports both 5V and 3.3V add-on cards
• Fully compliant with PCI Express Base, PCI slots comply with PCI Bus Rev. 2.3, Specifications, Revision 1.0a
• PCI Express Advanced Error Reporting Capability including ECRC
• Sturdy metal housing, suitable for industrial applications
• Supports Extended Virtual Channel (VC) and Active State Link Power Management

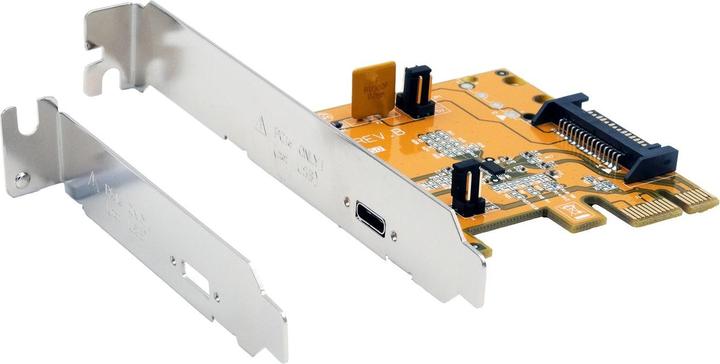

• Low profile bracket with a maximum height of 8 cm included
• Requires a 12V/3A power supply (included)

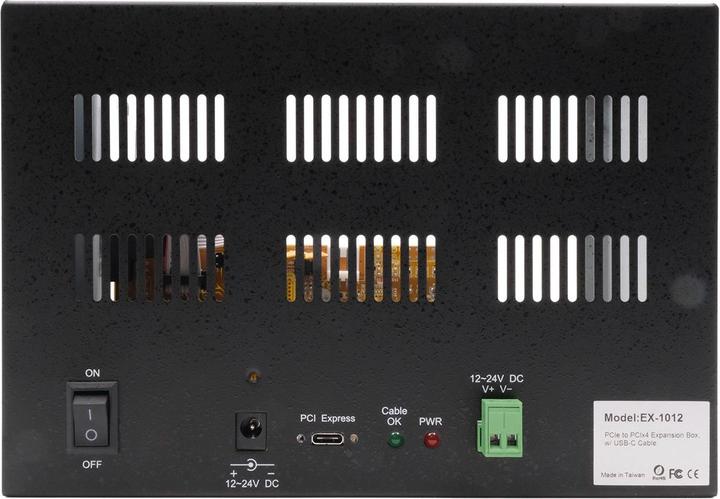

• LED indicators for power and cable.
