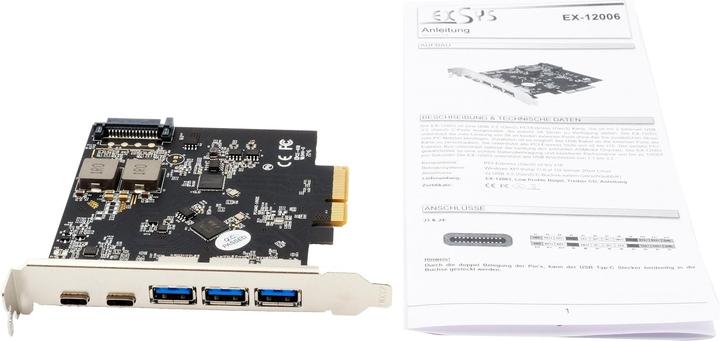

Exsys GmbH USB 3.2 Gen2 PCIe (x2) card with 5 ports (3A+2C connections)

The EX-12006 USB 3.2 Gen 2x1 with PCIe Slot (Gen3x4) card provides five external super-speed+ USB 3.2 Gen 2x1 ports, including three USB-A and two USB-C connectors. It is designed to connect two additional USB 1.1, 2.0, 3.0, and 3.2 Gen 2 end devices to your workstation, desktop, or server. It supports USB 1.1 low-speed (1.5 Mbps), full-speed (12 Mbps), USB 2.0 high-speed (480 Mbps), USB 3.0 super-speed (5 Gbps), and USB 3.2 Gen 2x1 super-speed+ (10 Gbps). This technology is ideal for external storage, digital cameras, webcams, scanners, and more. The EX-12006 supports 3.0A power to the external USB 3.2 Gen 2x1 ports with USB-C connectors.

• USB 3.2 Gen 2x1 PCIe x4 card with three USB-A and two USB-C female connectors
• Compliant with USB 3.2 Rev. 1.0 and Intel xHCI Rev. 1.0 specifications
• Fully PCI Express Gen3 Specification compliant
• Compatible with USB Attached SCSI Protocol Rev. 1.0
• Supports hot swapping and plug-and-play
• Support at USB-A female port: 0.9 Amper / 5 Volt / 4.5 Watt
• Support at USB-C female port: 3.0 Amper / 5 Volt / 15.0 Watt
• Supports up to 127 USB devices (USB 1.1, USB 2.0, USB 3.0, and USB 3.2 Gen 2x1)
• Chipset: Asmedia ASM3142

Packaging contents:
EX-12006, Driver CD, Manual.
