Best HKL products in the Cable trunking category

On this page you'll find a ranking of the best HKL products in this category. To give you a quick overview, we've already ranked the most important information about the products for you.

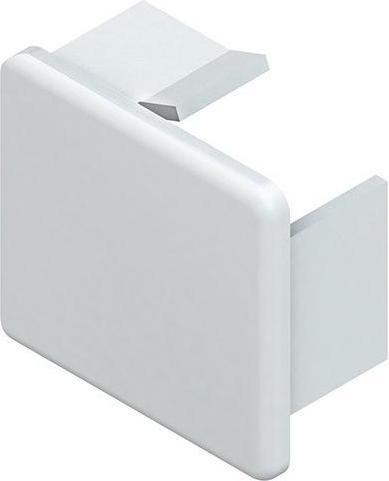

1. HKL End piece

End piece E3030.3 32x30mm (E3030.3).

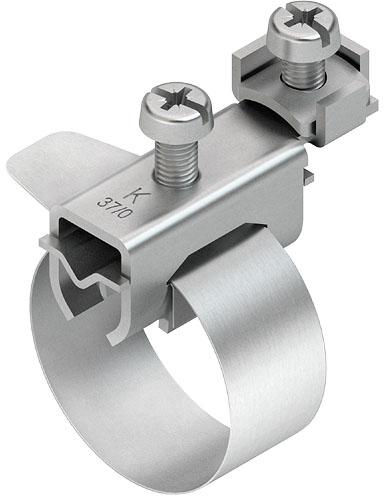

2. HKL Earth strap 1/8"-3/8" 37/0 (OBO 927-0)

HKL earthing strap clamp 37/0 Manufacturer: HKL Designation: earthing strap clamp with connection clamp Type: 37/0 Clamping/tensioning range: 8..17.5 mm Material: brass Surface protection: nickel-plated Cross-section of the cable to be connected: 2.5...6 mm² Number of conductors: 2 HKL earthing strap clamp 37/0: further details Earthing strap clamp with universal connection clamp, for longitudinal and transverse connections in dry interior rooms, can be used for pipes made of galvanised steel, copper and stainless steel. Clamp width : 41,5 mm Band width : 15 mm Band length : 130 mm for pipe-Ø : 8 - 17,5 mm for conductor cross-sections : 1 x 2,5 mm² - 1 x 6 mm² Material clamp : brass, nickel-plated Material clamp band : bronze, tin-plated Material screws : brass, nickel-plated , EAN: 4011126030129.

HKL Earth strap 1/8"-3/8" 37/0 (OBO 927-0) (170 mm)
Cable trunking
4.23 CHF 24.88 CHF/1m

HKL Earth strap 1/8"-3/8" 37/0 (OBO 927-0)

170 mm

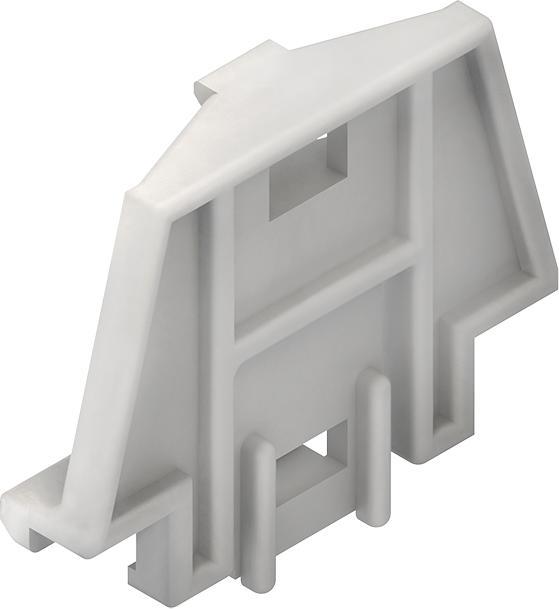

3. HKL end

HKL End piece rws BE1058.3 Manufacturer: HKL Designation: End piece rws Type: BE1058.3 Width: 105 mm Depth: 66 mm Thickness: 2 mm Design: symmetrical Suitable for: left/right Cut lamination: no Mounting type: screw-on Material: plastic Material quality: other Halogen-free: yes Antibacterial treatment: no Surface protection: untreated Color: white RAL number: 9010 With protective film: no Protection class (IP): IP20 Operating temperature: -5..60 °CHKL End piece rws BE1058.3: further detailsDevice trunking end piece, including pre-mounted mounting rail fastening element 679 for fixing the end piece in the two continuous mounting profiles in the back part of the device trunking bases or fittings, halogen-free. VDE certified! Dimensions (approx. dimensions) H x D : 105 x 65.5 mm for device trunking base : BU651058... Material : ASA (acrylic acid ester styrene acrylonitrile graft copolymer) Color : pure white RAL : 9010 (similar) , EAN: 4011126052848.

4. HKL Cable electrical trunking 60x107mm incl. retaining clips *pure white* 8 pieces

Features:
- with bottom perforation
- with lid
- without partition

-----------------------------
Selection criteria:
Dimension: 60 x 107 x 2,000 mm
Colour: cream
white
-----------------------------

Item number: KLHHKL60110.3
Shop number: 104279.


HKL Cable electrical trunking 60x107mm incl. retaining clips *pure white* 8 pieces (Installation pipe, 60 mm)
Cable trunking
55.90 CHF 931.67 CHF/1m

HKL Cable electrical trunking 60x107mm incl. retaining clips *pure white* 8 pieces

Installation pipe, 60 mm

5. HKL Flat angle

HKL Flat angle rws W60110.3 Manufacturer: HKL Designation: Flat angle rws Type: W60110.3 Height: 60 mm Width: 107 mm Design: Hood moulding Angle: 90 ° Material: plastic Material grade: other Halogen-free: yes Antibacterial treatment: no Surface protection: untreated Suitable for function maintenance: no Color: white RAL number: 9010 With protective film: no Protection class (IP): IP20 Operating temperature: -5..60 °CHKL Flat angle rws W60110.3: more detailsVertical angle 90°, with lugs, the fastening is done by the adjacent cover pieces. for electrical installation trunking : HKL60110.3 Dimensions (approx. dim.) H x W : 60 x 107 mm Leg length outside : 132 mm Material : ASA (acrylic acid ester styrene acrylonitrile graft copolymer) Color : pure white RAL : 9010 (similar) , EAN: 4011126193077

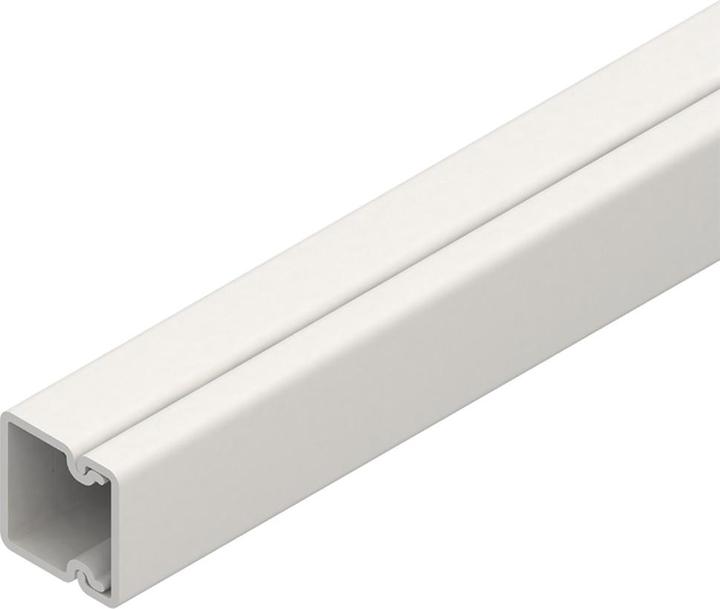

6. HKL Cable electrical trunking 40x60mm incl. retaining clips *pure white* 12 pieces

Features:
- with bottom perforation
- with lid
- without partition

-----------------------------
Selection criteria:
Dimension: 40 x 62 x 2,000 mm
colour: pure
white
-----------------------------

Item number: KLHHKL4060.3
Shop number: 104274.


HKL Cable electrical trunking 40x60mm incl. retaining clips *pure white* 12 pieces (Installation pipe, 40 mm)
Cable trunking
29.90 CHF 747.50 CHF/1m

HKL Cable electrical trunking 40x60mm incl. retaining clips *pure white* 12 pieces

Installation pipe, 40 mm

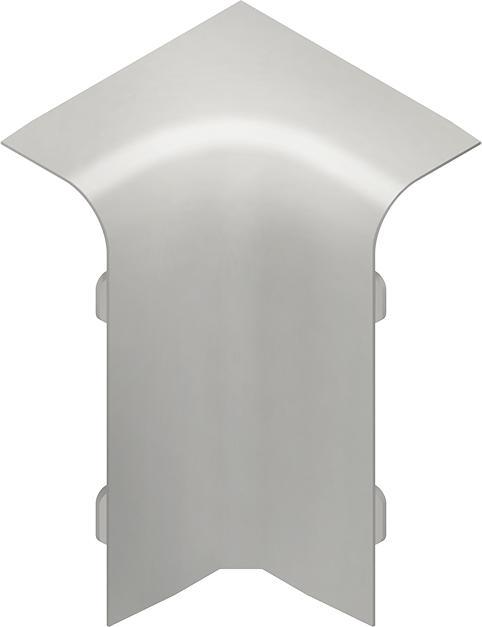

7. HKL Inside corner

HKL Inner corner rws BI1308.3 Manufacturer: HKL Designation: Inner corner rws Parapet trunking Type: BI1308.3 Width: 133 mm Depth: 66 mm Shape: symmetrical Number of top parts: 1 Top part width 1: 80 mm Design: Bottom part Angle: 90 ° Material: Plastic Material quality: Polyvinyl chloride (PVC) Halogen-free: no Antibacterial treatment: no Surface protection: Untreated Colour: White RAL number: 9010 With protective film: yes With trunking connector: yes Mounting hole in base: yes Mounting type of upper part: Internal With cable retaining clip: yes Protection class (IP): IP20 Operating temperature: -5..60 °C HKL internal corner rws BI1308.3: further details Device trunking internal corner 90°, single-flute, symmetrical, with two continuous mounting profiles in the back part as well as continuous perforation in the trunking back, including two trunking couplings KUV, please order joint connector BSV65 separately for exact connection to the trunking base. VDE certified! Dimensions (approx. dimensions) H x D : 133 x 66 mm Cover opening : 80 mm Side length outside : 198 mm For trunking base : BU651308... Material : PVC-hard (polyvinyl chloride) Colour : pure white RAL : 9010 (similar) , EAN: 4011126053272.

8. HKL Außeneck rws BA1308.3 Brüstungskanal BS Außeneck für Geräteeinbaukanal 4011126052893

Kleinhuis BA1308.3 Outside corner BS 65X130/80.

HKL Außeneck rws BA1308.3 Brüstungskanal BS Außeneck für Geräteeinbaukanal 4011126052893 (66 mm)
Cable trunking
63.90 CHF 968.18 CHF/1m

HKL Außeneck rws BA1308.3 Brüstungskanal BS Außeneck für Geräteeinbaukanal 4011126052893

66 mm

9. HKL Adapter

HKL Adapter 1897P16M20 Manufacturer :HKL Designation :Adapter Pg16/M20 PA Type :1897P16M20 Thread type :PG Nominal thread size metric/PG :16 Thread pitch :1.41 mm Thread length :10 mm Width across flats :27 mm Hexagon Corner size :30 mm Material :Plastic Material grade :Polyamide (PA) Surface protection :untreated Halogen-free :yes Glass fibre reinforced :yes Impact resistant :yes Colour :grey RAL number :7035 Bending protection :no With locknut :no Engaging in opening :no Design :straight Multiple sealing insert :no Flat cable gland :no With strain relief :no Type of seal :Sealing ring Separable gland :no Application temperature :-30..100 °C Explosion-proof version :no For Ex-zone gas :without For Ex-zone dust :without For armoured cables :no EMC version :no Shielded :no HKL adapter 1897P16M20: further details Adapter with Pg connection thread according to DIN 40430 and metric internal thread according to DIN EN 60423, glass fibre reinforced, halogen-free. External thread: Pg 16 Internal thread: M 20 Thread length external: 10 mm Thread length internal: 8.5 mm Width across flats: 27 with connecting thread sealing ring 987/...(please order separately!): IP68 Application temperature range: -30° to 100°C Material: Polyamide Colour: light grey RAL: 7035 (similar) , EAN: 4011126377613.

HKL Adapter
Cable trunking
Quantity discount
13.30 CHF per piece for 2 units

HKL Adapter
