1. TBS Electronics Panel button for TBS Remote battery master switch
Remote control switch for TBS Remote Battery Main Switch
With this panel switch, you can send open and close commands to the TBS Remote Battery Main Switch from a convenient location. This switch is a single-pole two-position (ON)-OFF-(ON) variant, optimized for the two-wire control method (Set / Reset) of our RBS and TBP products. The integrated low-current LED indicates when the contact is closed or when the relay is operating in a specific mode.
This switch meets the IP65 protection rating when installed with the included rubber panel seal.
2. TBS Electronics DCM Battery Protect Relay (24V/500A)
The DCM Battery Protect Relay (24V/500A) from TBS Electronics is a highly advanced battery testing device specifically designed to protect DC batteries. It combines the functions of a battery remote switch with additional intelligent features that enable effective monitoring and control of battery performance. With the ability to handle continuous direct currents of up to 500 amperes, this modular relay offers a reliable solution for various applications. It is equipped with a magnetic high-current latching relay that requires no holding current, increasing efficiency and minimizing energy consumption. The device can be controlled both locally and externally, allowing for flexible handling. Additionally, the DCM Battery Protect Relay automatically protects the battery by opening the main contact when the battery voltage falls below a programmable value. This functionality makes it an indispensable tool for monitoring and protecting battery systems.
- Intelligent magnetic high-current latching relay for up to 500 amperes
- No holding current required, enhancing energy efficiency
- Automatic battery protection in case of undervoltage
- Flexible control options via a 5-wire interface cable
- Easy local and external control of the main contacts.

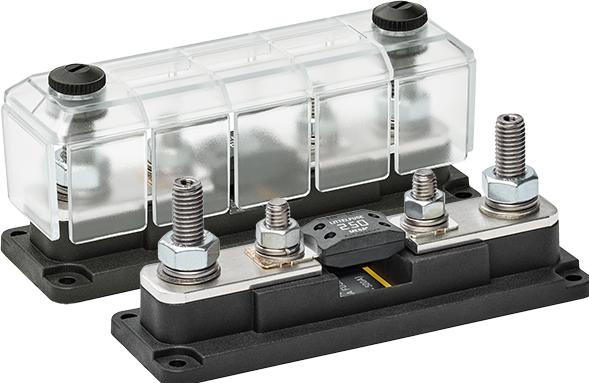

3. TBS Electronics TBS - DCM Mega Fuseholder (60V/40..500A)
The TBS - DCM Mega Fuseholder is a highly advanced fuse holder designed for DC power supply systems. With an operating voltage of up to 60 V and a current rating of 40 to 500 A, this fuse holder offers a reliable solution for a variety of applications. Its compact and robust design allows for easy integration into existing systems, while the ability to connect multiple fuse holders in a fixed grid enhances flexibility and efficiency. The fuse holder is made with high-quality materials that ensure optimal performance and durability. The use of stainless steel for bolts and washers provides excellent corrosion resistance, while tinned copper busbars maximize conductivity and minimize heat generation. These features make the TBS - DCM Mega Fuseholder the ideal choice for professional applications in the field of DC power supply.
- Stainless steel components for high corrosion resistance
- Tinned copper busbars for maximum conductivity and efficiency
- Fiber-reinforced base material for high temperature and chemical resistance
- Space-saving design with grid-optimized layouts
- Sturdy transparent covers for easy cable access.
4. TBS Electronics DCM Battery Protect Relay (12V/500A)
The modular DC battery protection relay (TBP) has the same functions as the remote battery switch (RBS). It is an intelligent high-current magnetic interlocking contactor that can handle continuous DC currents of up to 500 amps. While the RBS is mainly used as a locally or externally controlled battery load switch, the TBP has several additional functions. Most importantly, it can protect your battery without the need for an external measurement and control device. In addition to remote control of the TBP, the top-mounted buttons also offer the option of opening or closing the main contact locally. For external control, the TBP is equipped with a 5-wire interface cable. It can be configured to accept two-wire or single-wire ON/OFF commands for optimum flexibility. The TBP is a magnetically latching relay, meaning no current is drawn from the battery when the contact is closed. This is a major advantage compared to conventional relays, which require a sometimes significant holding current to keep the contact closed. In addition to all the functions and advantages of the RBS, the TBP has built-in battery protection. It automatically opens the main contact as soon as the battery voltage falls below a programmable undervoltage value. If the battery voltage then rises above the programmable reclosing voltage, the main contact is closed again. Another practical function of the TBP is the override mode. In situations where the TBP has opened the main contact due to an undervoltage in the battery, a long press of the close button (local or external) will close the main contact for 1 minute. This allows the user to jump-start a system with a low battery. If the battery voltage is still too low after this minute, the contact opens again. However, it remains closed if a charger was connected during the bridging time and the battery voltage rises again.
5. TBS Electronics DCM busbar 3xM8
The DC Modular high current busbars are used for distributing high direct currents to a series of connected cables or other members of the DC Modular family. Their solid and compact design, along with the ability to connect multiple busbars into a fixed grid, makes these products the best choice for all professional DC systems.
Features:
- Bolts, nuts, and washers made of stainless steel for optimal corrosion resistance
- Tinned, high-purity copper busbars provide maximum conductivity, reduce heat, and improve efficiency
- Special fiber-reinforced base material offers excellent high-temperature properties, good chemical resistance, and high strength
- Unique grid-optimized layouts allow for space-saving arrangements of multiple products
- Common connection heights for easy combination of several products using connection plates
- Robust transparent covers with openings for cable access from any direction
- Intelligent connection design allows for double mirrored cable lug connections
- Easy access to connections in the system through top-locked covers
Technical Data:
- Number of bolts: 3
- Connection thread: M8
- Max. current: 600A
- Max. voltage: 60V
- Dimensions: 100.0 x 50.0 x 64.5 mm
System Description: CD Modular by tbs-electronics Guide DC Modular Busbar.

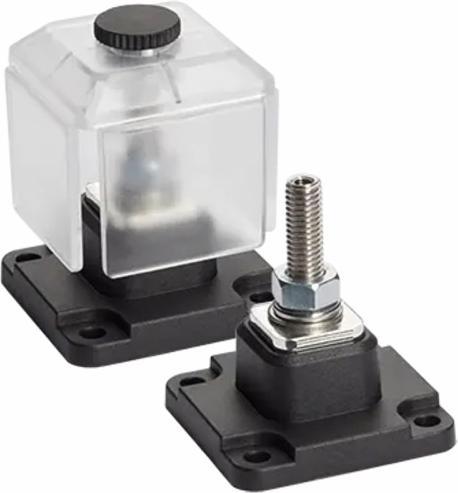

6. TBS Electronics DCM single support point M8
The insulated DC modular bolts are the ideal components for extending cables, adding power taps, or forming termination points. Their solid and compact design, along with the ability to connect with other members of the DC modular family, makes these products the best choice for all professional DC power supply systems.
Features:
- Bolts, nuts, and washers made of stainless steel for optimal corrosion resistance
- Tinned, high-purity copper busbars provide maximum conductivity, reduce heat, and improve efficiency
- Special fiber-reinforced base material offers excellent high-temperature properties, good chemical resistance, and high strength
- Unique grid-optimized layouts allow for space-saving arrangements of multiple products
- Common connection heights for easy combination of several products using connection plates
- Robust transparent covers with openings for cable access from any direction
- Intelligent connection design enables double mirrored cable lug connections
- Easy access to the connections in the system through top-locking covers
Technical specifications:
- Number of bolts: 1
- Connection thread: M8
- Max. voltage: 60V
- Dimensions: 50.0 x 50.0 x 64.5 mm
System description: CD Modular by tbs-electronics guide DC Modular busbar.
7. TBS Electronics TBS - Remote battery master switch (48V/350A)
Remote Controlled Battery Main Switch / Bistable Relay
The TBS Remote Battery Switch (RBS) is an intelligent magnetic high-current relay capable of handling direct currents of up to 350 amps continuous load.
Used as a remote-controlled main switch
The RBS can be easily installed in the engine room or battery compartment, while being controlled from a more convenient location via a small switch mounted on the control panel. The RBS can also be controlled, for example, by a battery monitor or a managed lithium battery.
In addition to the remote control of the RBS, the buttons located above also allow for local opening or closing of the main contact. For external control, the RBS is equipped with a 5-wire interface cable. It can be configured to accept two-wire or one-wire ON/OFF commands to ensure optimal flexibility.
The RBS is a magnetically latching relay, meaning that no current is drawn from the battery when the contact is closed. This is a significant advantage compared to conventional relays that require a (sometimes substantial) holding current to keep the contact closed.
Another advantage of the RBS is its built-in protection features. It is protected against high/low supply voltage and high temperature. Additionally, there is an intelligent function for automatic fixing of light to moderate contact welds. Finally, the RBS is also ignition protected according to ISO 8846.
As a member of the TBS DC Modular family, the RBS can be part of a very compact DC distribution system. The footprint of the RBS is approximately 50% smaller compared to some competing products, making it ideal for tight spaces.
The TBS Remote Battery Switch 500A is available in 12 VDC, 24 VDC, and 48 VDC variants and is controlled via a positive signal.
8. TBS Electronics DCM 1xM10 single support point (set of 2)
DC Modular single support point M10 - set of 2
The single and double insulated DC Modular studs are ideal parts for extending cables, adding branches or forming end points.
The solid and compact design and the ability to connect multiple busbars and relays to form a fixed grid make these products the best choice for all professional DC power supply systems
The high current busbars are available with M8 or M10 stud sizes.
Features
- Stainless steel bolts, nuts and washers for optimum corrosion resistance
- Tin-plated, high-purity copper busbar provides maximum conductivity, reduces heat and improves efficiency
- Special fibre-reinforced base material offers excellent high-temperature properties, good chemical resistance and high strength
- Unique grid-optimised layouts allow space-saving arrangements of multiple products
- Common connection heights for easy combination of multiple products using connecting plates
- Robust transparent covers with openings for cable access from any direction
- Intelligent connection design enables double mirrored cable lug connections
- Easy access to the connections in the system thanks to top-locking covers
The optional adapter plate allows a mix of high and low current cables to be connected to the same stud.

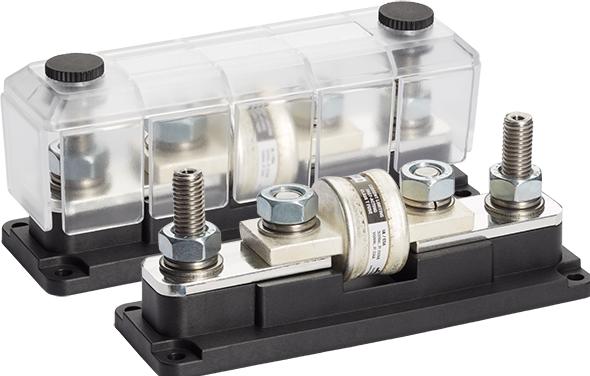

9. TBS Electronics TBS - DCM Class-T fuse holder (60V/600A) M10
DCM Class-T Fuse Holder (400A) M10
A wide range of fuse holders is available in the DC Modular product line, with fuse ratings from 35A to 600A. Fuse holders for Mega®, ANL, and Class-T fuses are offered, providing solutions for a broad range of applications. The solid and compact design, along with the ability to connect multiple fuse holders in a fixed grid, makes these products the best choice for all professional DC power supply systems.
Features
- Stainless steel bolts, nuts, and washers for optimal corrosion resistance
- Tinned high-purity copper busbars ensure maximum conductivity, reduce heat, and improve efficiency
- Special fiber-reinforced base material offers excellent high-temperature properties, good chemical resistance, and high strength
- Unique grid-optimized layouts allow for space-saving arrangements of multiple products
- Common connection heights for easy combination of multiple products using connection plates (except for Mega and ANL (300A) fuse holders)
- Robust transparent covers with cutouts for cable access from any direction
- Intelligent connection design allows for dual mirrored cable lug connections
- Easy access to the connections in the system thanks to the top-locked covers (except for Mega and ANL (300A) fuse holders).
