TBS Electronics DCM busbar 3xM8

was CHF78.–
Ratings
BrandMore from TBS Electronics
Delivered between Fri, 5.6. and Tue, 9.6.
Only 3 pieces in stock at supplier
free shipping

Product details

The DC Modular high current busbars are used for distributing high direct currents to a series of connected cables or other members of the DC Modular family. Their solid and compact design, along with the ability to connect multiple busbars into a fixed grid, makes these products the best choice for all professional DC systems.

Features:

  • Bolts, nuts, and washers made of stainless steel for optimal corrosion resistance
  • Tinned, high-purity copper busbars provide maximum conductivity, reduce heat, and improve efficiency
  • Special fiber-reinforced base material offers excellent high-temperature properties, good chemical resistance, and high strength
  • Unique grid-optimized layouts allow for space-saving arrangements of multiple products
  • Common connection heights for easy combination of several products using connection plates
  • Robust transparent covers with openings for cable access from any direction
  • Intelligent connection design allows for double mirrored cable lug connections
  • Easy access to connections in the system through top-locked covers

Technical Data:

  • Number of bolts: 3
  • Connection thread: M8
  • Max. current: 600A
  • Max. voltage: 60V

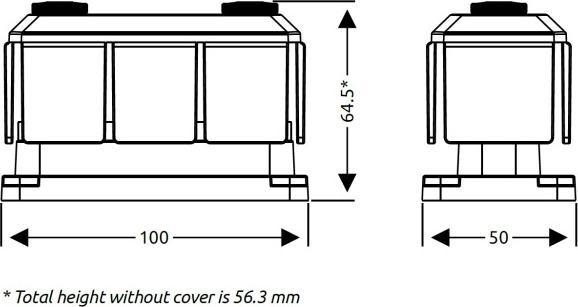

  • Dimensions: 100.0 x 50.0 x 64.5 mm

System Description: CD Modular by tbs-electronics Guide DC Modular Busbar.
