Best Eltako products in the Actuator category
On this page you'll find a ranking of the best Eltako products in this category. To give you a quick overview, we've already ranked the most important information about the products for you.
1. Eltako Dimmer
With control inputs for light switches and light sensors. To protect the lamps, the switching occurs at zero crossing with soft on and soft off. In addition to the minimum brightness, the dimming speed can also be adjusted, which simultaneously changes the duration of the soft on and soft off. In the snooze function, the set value is dimmed down to the minimum brightness and then switched off, while the children's room function gradually brightens up to the set brightness level. Short control commands turn the light on/off, while continuous controls adjust the brightness up to the maximum value. Suitable for resistive, inductive, and electronic loads, which are automatically detected. If energy-saving lamps are to be dimmed, the function rotary switch should be set to ESL. This takes into account the special conditions for dimmable energy-saving lamps. For example, the switching-on process is optimized, and the dimming speed changes logarithmically; a children's room setting is not possible.
2. Eltako Impulse switch ES61-UC
ELTAKO pulse switch UC. 1 potential-free normally open contact, 10A/250V AC, incandescent lamps up to 2000W. No standby loss. Designed for installation. Dimensions: 45mm long, 45mm wide, 18mm deep. State-of-the-art hybrid technology combines the advantages of wear-free electronic control with the high performance of special relays. It can be operated with a universal control voltage of 8..230V UC at the control input +A1/-A2 or 230V with up to 5mA glow lamp current at the control input with glow lamp symbol (L)/-A2(N). Simultaneous use of two potentials at the control inputs is not permitted. Very low switching noise. No continuous power supply required, hence no standby loss. The use of a bistable relay ensures that there is no coil loss and no heating even when switched on. The relay contact can be either open or closed at startup and will synchronize on the first operation. If this pulse switch is in a circuit monitored by a field disconnector, it does not require an additional base load, but the monitoring voltage must be set to maximum. The electronics do not have their own power supply and therefore consume no power in either contact position. Only during the short control pulse of just 0.2 seconds does the control current flow, which activates the microcontroller, allowing it to read the last switching state from its non-volatile memory, switch the bistable relay accordingly in the opposite direction, and set the new switching state.

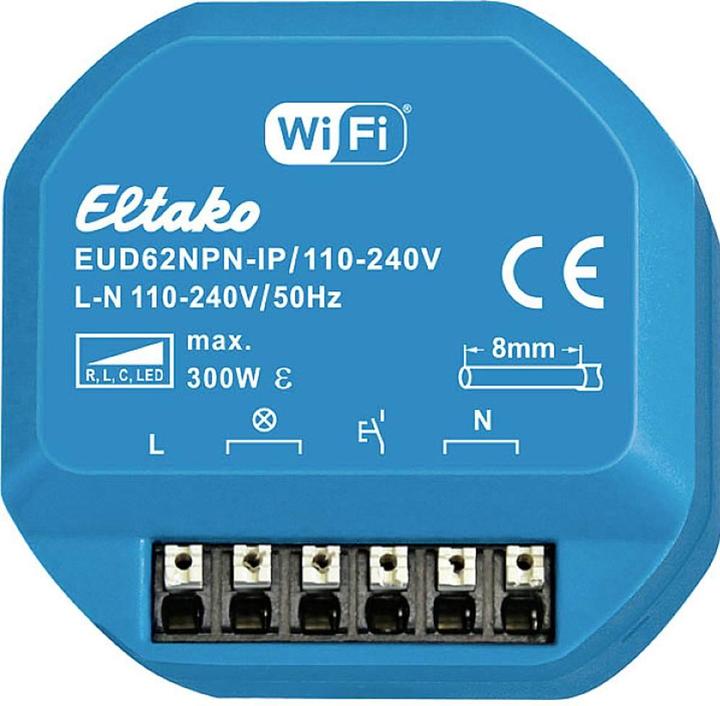

3. Eltako Dimmaktor
Universal dimming actuator IP via Wi-Fi. Matter-certified, REST-API. With power MOSFET. Dimmable 230V LED lamps in trailing edge phase control mode up to 300W, or in leading edge phase control mode up to 100W, depending on the ventilation conditions. 230V incandescent and halogen lamps up to 300W, depending on the ventilation conditions. No minimum load. Stand-by loss only 0.7 watts. For recessed mounting. 49x5mm, 25mm deep. The connection terminals are plug-in terminals for conductor cross-sections from 0.2mm² to 2.5mm². Switching with soft on and soft off to protect lamps. Supply, switching and control voltage local 110-240V. The set brightness level is saved when switching off (memory). If the supply voltage fails, the light is switched off in a defined manner. Automatic electronic overload protection and overtemperature switch-off. With control input for a conventional mains voltage control button that may be fitted upstream. A glow lamp current is not permitted. The Wi-Fi connection utilises the 2.4 GHz frequency band and enables over-the-air updates (OTA).
This actuator is Matter certified and can therefore be taught into various ecosystems and operated in parallel. For control via Matter, a compatible Matter controller is required for each ecosystem. For Apple Home e.g. a Homepod mini, for Amazon Alexa e.g. a compatible ECHO Dot and for Google Home e.g. a Nest mini. The optional configuration of the actuator is carried out via the Eltako Connect app. A development version of the REST API is available via the device's online product page. This is being continuously developed.
4. Eltako Starter Kit Energy Blister Pack Switching
The Blister-Pack Switch includes a battery-operated and wireless FT55 push button in glossy pure white, as well as a FSR61-230V switching actuator with pulse switch function. FT55-wg: Push button, 80x80 mm externally, frame inner dimension 55x55 mm, 15 mm high. It generates the energy for radio telegrams even when the button is pressed, thus requiring no connection wire and having no stand-by loss. The delivery includes the frame R, a W55 rocker, a DW55 double rocker (all in the same color), a mounting frame BRF, the mounting plate HP, the radio module, and an adhesive film. A push button with a single rocker can send two evaluable signals: pressing the upper rocker and pressing the lower rocker. A push button with a double rocker can send four evaluable signals: pressing two rockers both at the top and at the bottom. The mounting plate can be screwed onto a flat surface or glued to the wall, glass, or furniture using the included adhesive film. Above a 55 mm switch box, the existing sleeves in the box are used for screw fastening. The push button lighting FTB can then also be latched onto the mounting plate from the back. The double rocker is factory-latched onto the radio module. If this needs to be replaced with the large rocker, pull the rocker halves forward without bending them towards the center. Then, latch the large rocker so that its markings 0 and I on the back align with the radio module. When gluing, first attach the mounting plate set with the frame and mounting frame with the latches at the top and bottom. Then, snap in the radio module set with the rocker, ensuring that the marking 0 on the back is always at the top. Before screwing, detach the frame with the mounting frame from the mounting plate. To do this, push the latches of the mounting plate outward. Then, screw the mounting plate with the latches at the top and bottom, snap the frame with the mounting frame in place, and snap in the radio module set with the rocker, ensuring that the marking 0 on the back is always at the top.
5. Eltako ER61-UC
No standby loss. Suitable for flush and surface mounting. 45 mm long, 45 mm wide, 18 mm deep. State-of-the-art hybrid technology combines the advantages of wear-free electronic control with the high performance of special relays. Universal control voltage of 8 to 230 V UC. Very low switching noise. The use of a bistable relay means there is no coil loss and no heating even when switched on. The relay contact can be open or closed at startup and will synchronize upon the first activation. This relay is not suitable for feedback with the switching voltage of a dimmer switch. Only use relays ESR12DDX-UC, ESR12NP-230V+UC, or ESR61NP-230V+UC for this purpose. The electronics have no independent power supply and therefore no standby loss. Only when the control contact is closed is the microcontroller activated, which switches the bistable relay in the correct direction. When the control contact is opened or the control voltage drops, it switches back.
6. Eltako Funk-Lichtaktor
Wireless light actuator 10A/250V AC. Impulse switch with 1 NO contact, potential-free. 230V LED lamps and ESL up to 200W, 230V incandescent and halogen lamps 1000W. Standby loss only 0.4 watts. For recessed mounting. 49x51mm, 20mm deep. The connection terminals are plug-in terminals for conductor cross-sections from 0.2mqm to 2.5mqm. Up to 32 radio universal push-buttons, radio directional push-buttons, radio central control push-buttons and motion sensors can be taught-in using the convenient jog technology. Bidirectional radio can be activated. Distance between control connections/contact 6 mm. Supply, switching and control voltage local 230V. If the supply voltage fails, the switching position is retained. When the supply voltage is restored, it is switched off in a defined manner. After installation, wait for the short automatic synchronisation before connecting the switched load to the mains. In addition to the radio control input via an internal antenna, this radio actuator can also be controlled locally with a conventional 230V control button mounted in front of it. A glow lamp current is not permitted.

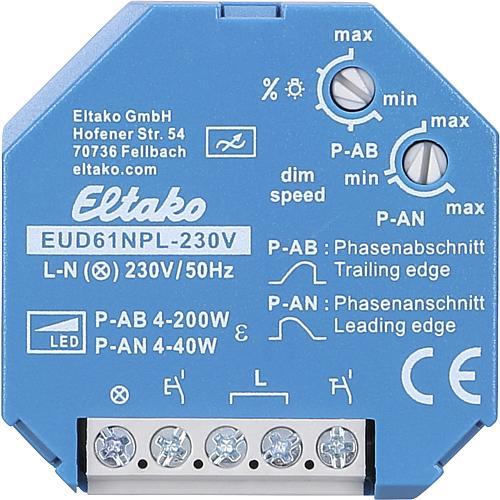

7. Eltako EUD61NPL-230V
Without N-connection, this power MOSFET operates up to 200 W with a stand-by loss of only 0.5 watts. It features control inputs for light switches, allowing for adjustable minimum brightness, operating mode, and dimming speed. Designed for recessed mounting, it measures 45 mm long, 45 mm wide, and 18 mm deep. This universal dimmer switch is suitable for R and C loads up to 200 W, depending on ventilation conditions. It supports dimmable ESL and 230 V LED lamps in "phase cut" mode up to 200 W or in "phase angle" mode up to 40 W, also depending on ventilation conditions. For dimmable 230 V LED lamps that remain slightly illuminated when switched off, a basic load element GLE must be connected in parallel to the lamp.

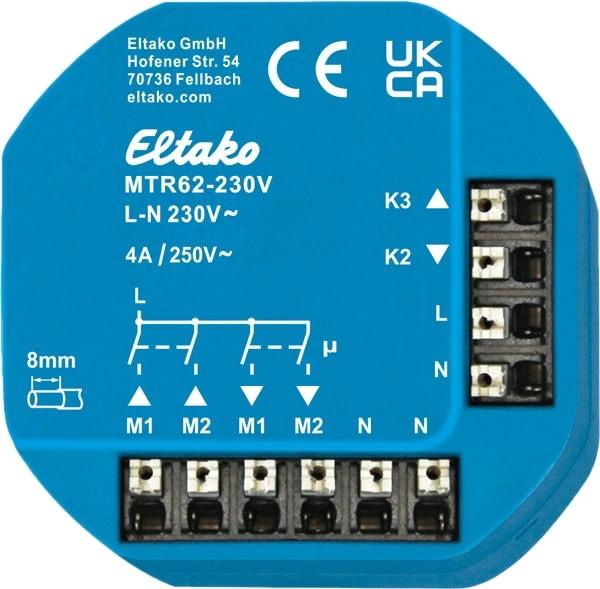

8. Eltako MTR62-230V Flush-mounted motor isolating relay
Eltako Motor Disconnect Relay MTR62-230V
Manufacturer: Eltako
Designation: Motor Disconnect Relay
Type: MTR62-230V
Mounting type: Flush-mounted
Central input: no
Secondary input: no
Number of connectable motors: 2
Nominal voltage: 230 V
Frequency: 50 Hz
Rated current: 4 A
The Eltako Motor Disconnect Relay MTR62-230V is a motor disconnect relay with 2+2 contacts, not potential-free, 4A/250V AC, suitable for two 230V motors. It has no standby loss and is designed for flush mounting. The dimensions are 49x51mm with a depth of 20mm. The connection terminals are plug terminals for conductor cross-sections from 0.2mm² to 2.5mm².
The MTR is a control relay for operating one or two blind and roller shutter motors with mechanical or electronic limit switches. The tubular motors of shading elements and roller shutters must not be connected in parallel directly, as this can lead to feedback through the limit switches and ultimately destroy the motors. Multiple MTRs can be connected in parallel at the inputs.
Suitable controllers include EGS12Z, EGS61Z, FSB14, FSB61NP, and FJ62NP. The control and switching voltage is 230V.
Caution! The switching time between the raise and lower command must be 500ms, otherwise damage to the motor or the disconnect relay may occur (observe the technical data of the motor).
9. Eltako Wireless actuator FSR61-230V
Eltako 1 potential-free switch 10A/250V AC, suitable for incandescent lamps up to 2000 watts, with a delay on release and a pre-warning for switching off, as well as a permanent light function that can be activated. Encrypted radio, bidirectional radio, and repeater function can be enabled. Standby loss is only 0.8 watts. Designed for installation. Dimensions: 45 mm long, 45 mm wide, 33 mm deep. The switching state is maintained in the event of a power supply failure. Upon restoration of the power supply, it will be defined as switched off. After installation, wait for the automatic short synchronization before connecting the switched load to the network. In addition to the radio control input via an internal antenna, this radio actuator can also be locally controlled with a conventional control button that may be installed beforehand. A glow lamp current is not permitted. Encrypted sensors can be learned in. Bidirectional radio and/or a repeater function can be activated. Any state change and received central control telegrams will then be confirmed with a radio telegram. This radio telegram can be learned into other actuators, the GFVS software, and universal displays. Scene control: With one of the four control signals from a button learned as a scene button with a double rocker, multiple FSR61 units can be switched on or off as part of a scene. The upper rotary switch in the LRN position allows for learning up to 35 radio buttons.

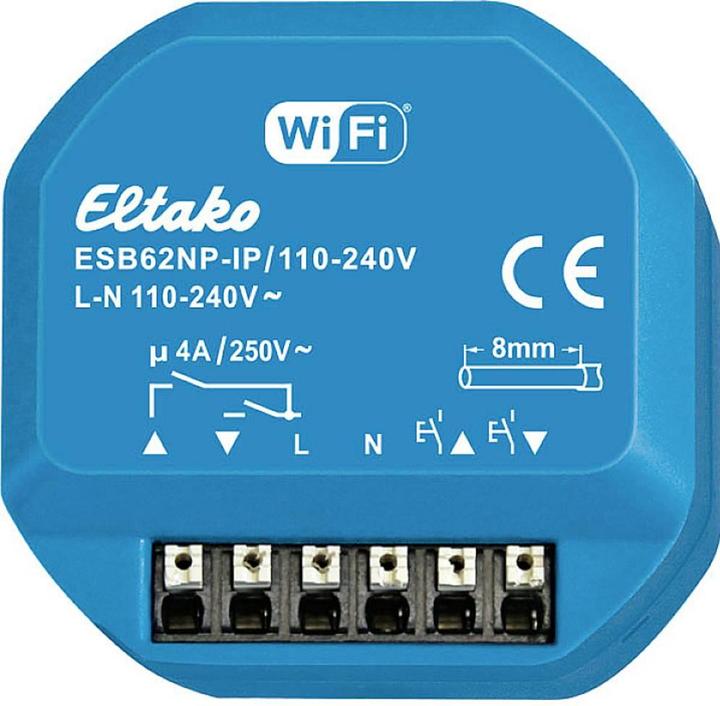

10. Eltako ESB62NP-IP
Eltako shading actuator IP via Wi-Fi, 1+1 switch 4A/250V AC, not potential-free, for a shading element motor 230V AC. With automatic end position detection. Apple Home certified, REST API, and built for Matter. Standby loss is only 0.8 watts. For flush mounting. Dimensions: 49x51mm, 25mm deep. The connection terminals are plug terminals for wire cross-sections from 0.2mm² to 2.5mm². Contact switching at zero crossing to protect the contacts. Supply, switching, and control voltage locally 110-240V. In the event of a power failure, it is defined to switch off. State-of-the-art hybrid technology combines the advantages of wear-free electronic control with the high performance of special relays. With a control input for a possibly installed mains voltage control switch. A glow lamp current is not permitted. The Wi-Fi connection uses the 2.4 GHz frequency band and allows for over-the-air updates (OTA). This actuator is Apple Home certified, allowing it to be controlled directly through the Apple Home app and Siri without the need for an additional controller or gateway. The Apple Home app provides the following options: - Create If-Then automations including geofencing. - Manual switching. - Retrieve status. For remote access, an Apple Home hub, such as HomePod mini, is required. The optional configuration of the actuator is done via the Eltako Connect app. A development version of the REST API is available on the device's online product page and is continuously being developed. The actuator meets all requirements for the Matter standard.
