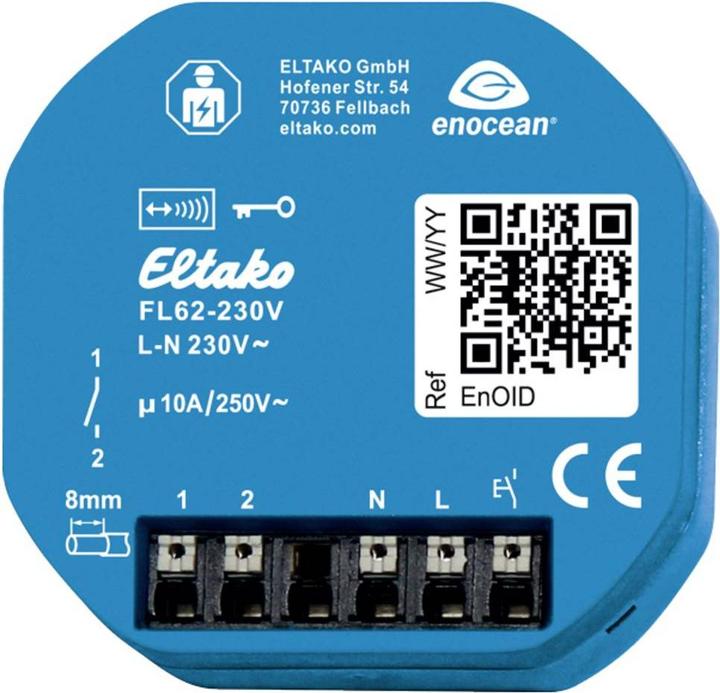

Eltako Funk-Lichtaktor

Wireless light actuator 10A/250V AC. Impulse switch with 1 NO contact, potential-free. 230V LED lamps and ESL up to 200W, 230V incandescent and halogen lamps 1000W. Standby loss only 0.4 watts. For recessed mounting. 49x51mm, 20mm deep. The connection terminals are plug-in terminals for conductor cross-sections from 0.2mqm to 2.5mqm. Up to 32 radio universal push-buttons, radio directional push-buttons, radio central control push-buttons and motion sensors can be taught-in using the convenient jog technology. Bidirectional radio can be activated. Distance between control connections/contact 6 mm. Supply, switching and control voltage local 230V. If the supply voltage fails, the switching position is retained. When the supply voltage is restored, it is switched off in a defined manner. After installation, wait for the short automatic synchronisation before connecting the switched load to the mains. In addition to the radio control input via an internal antenna, this radio actuator can also be controlled locally with a conventional 230V control button mounted in front of it. A glow lamp current is not permitted.
