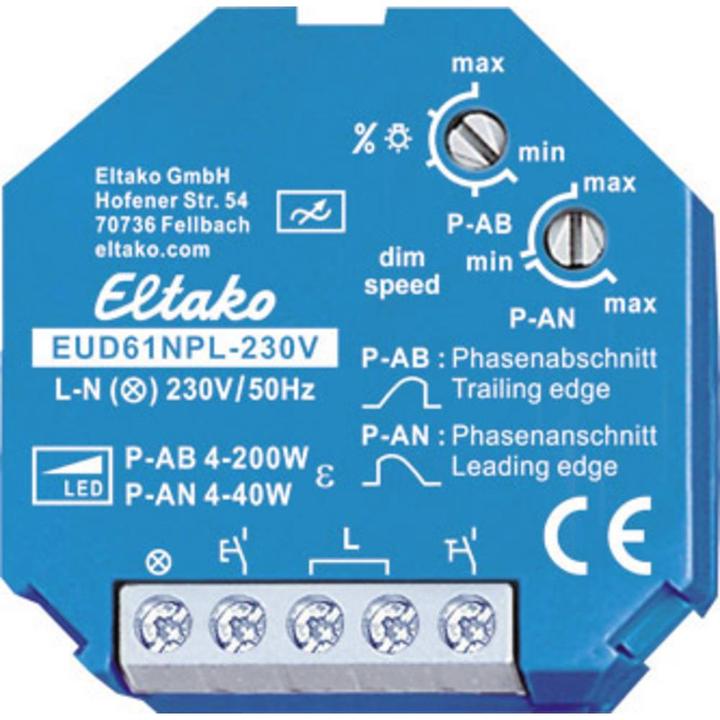

Eltako EUD61NPL-230V

Dimming actuator
tonight with flash delivery
to check if flash delivery is available to you.
Free shipping starting at 50.–

Product details

Without N-connection, this power MOSFET operates up to 200 W with a stand-by loss of only 0.5 watts. It features control inputs for light switches, allowing for adjustable minimum brightness, operating mode, and dimming speed. Designed for recessed mounting, it measures 45 mm long, 45 mm wide, and 18 mm deep. This universal dimmer switch is suitable for R and C loads up to 200 W, depending on ventilation conditions. It supports dimmable ESL and 230 V LED lamps in "phase cut" mode up to 200 W or in "phase angle" mode up to 40 W, also depending on ventilation conditions. For dimmable 230 V LED lamps that remain slightly illuminated when switched off, a basic load element GLE must be connected in parallel to the lamp.

Key specifications

Actuator type
Dimming actuator
Items per sales unit
1 x
Mounting type
Built-in installation
Item number
12745560

General information

Manufacturer
Eltako
Category
Actuator
Manufacturer no.
61100832
Release date
17.2.2020
Sales rank in Category Actuator
91 of 1464
External links

Colour

Colour
Blue
Exact colour description
Blue

Material

Material group
Plastic
Material
Plastic

Actuator properties

Actuator type
Dimming actuator
Max. Switching capacity
200 W
rated current
4 A
Operating voltage
230 V
Mounting type
Built-in installation
Mounting type
Screw fastening

Smart home features

Smart Home
Not compatible
Requires Smart Home Hub
No

Origin

Country of origin
China

Voluntary climate contribution

CO₂-Emission
Climate contribution

Scope of delivery

Items per sales unit
1 x

Product dimensions

Length
45 mm
Width
45 mm
Height
18 mm
Weight
50 g

Package dimensions

Length
9 cm
Width
7 cm
Height
3 cm
Weight
10 g

30-day right of return
24 Months Warranty (Bring-in)
