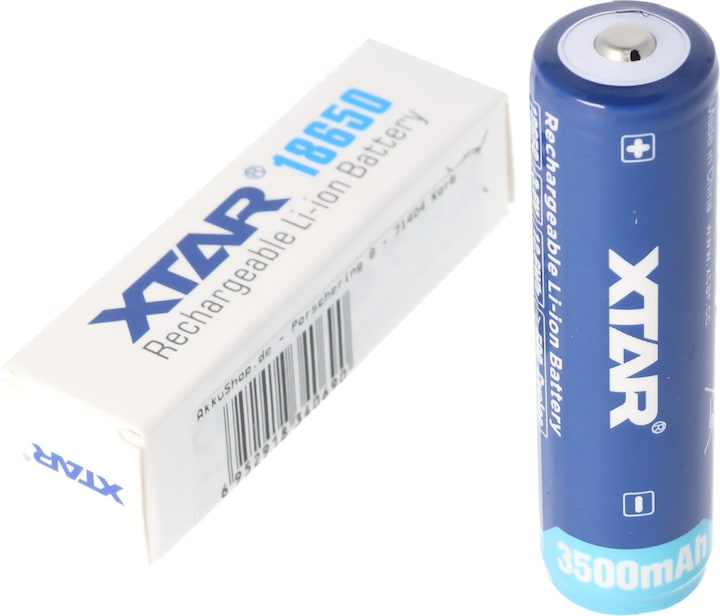

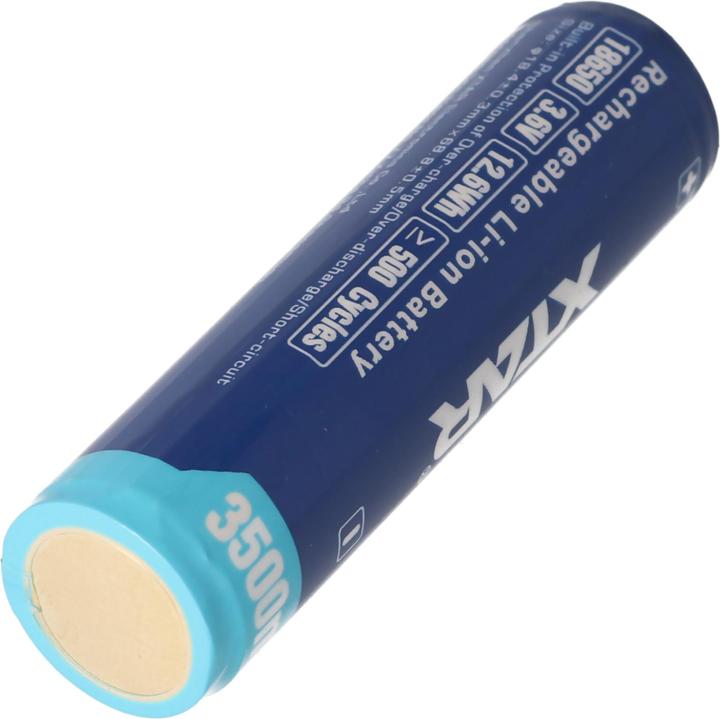

Xtar Battery 18650, protected with head

Electronically protected against overvoltage, undervoltage and against short circuit and reverse polarity. Designed for industrial, flashlights, LEDs, etc.Xtar 18650 battery PCB protected (Sanyo/Panasonic NCR 18650 GA)Please note the dimensions of the cell before buying! Due to the built-in electronics, the cell is not suitable for every application!
Height and diameter are larger than a standard 18650 cell without PCB.Capacity3500mAhMinimum capacity3350mAhNominal voltage3.6V - 3.7VCharge voltage4.20V ± 0.05Vmax. Discharge current10Amax. discharge current PCB10ADischarge voltage2.50VProtection available PCBPluspoler heightened (Button Top)Diameter18.4 mm ± 0.30 mmHeight68.80 mm ± 0.50 mmWeight48 g ± 0.01 gCharge methodCC-CVSafety instructions:Lithium cells may only be operated with protection electronics!
Please note that lithium cells may only be used by qualified personnel.
Incorrect handling or short-circuiting may result in fire or explosion.Other features:Lithium-ion batteries are thermally stable and are not subject to memory effect.
They work on the basis of lithium and are characterized by a high energy density.Technical data for "XTAR 18650 3500mAh 3.6V - 3.7V Li-Ion battery (protected) "Notes:For charging lithium ion batteries, it requires a special charger, which charges the batteries according to a special charging method. (CCCV = constant current, constant voltage.) The batteries must not be charged above a voltage of 4.2 volts, otherwise there is a risk of fire and explosion. It is advantageous to charge the batteries only up to approx. 4.1 volts, as this significantly increases the service life or the number of charging cycles (possibly up to double). Only lithium ion chargers may be used for charging. However, the cheap chargers sometimes have the disadvantage.
