Westech Voltage monitoring 24V

Ratings
Delivered between Thu, 18.9. and Tue, 23.9.
9 pieces in stock at supplier
free shipping

Output voltage

Product details

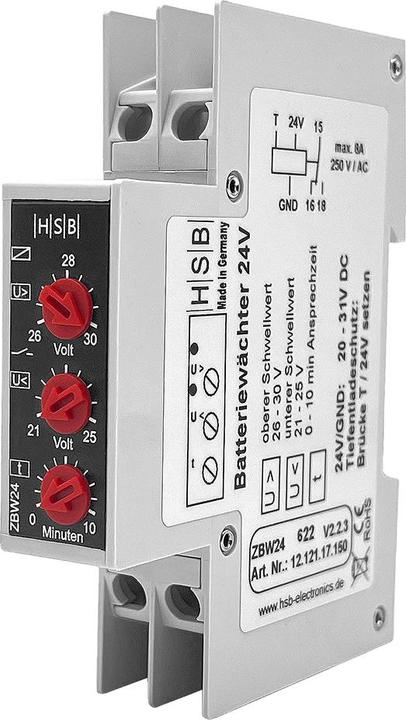

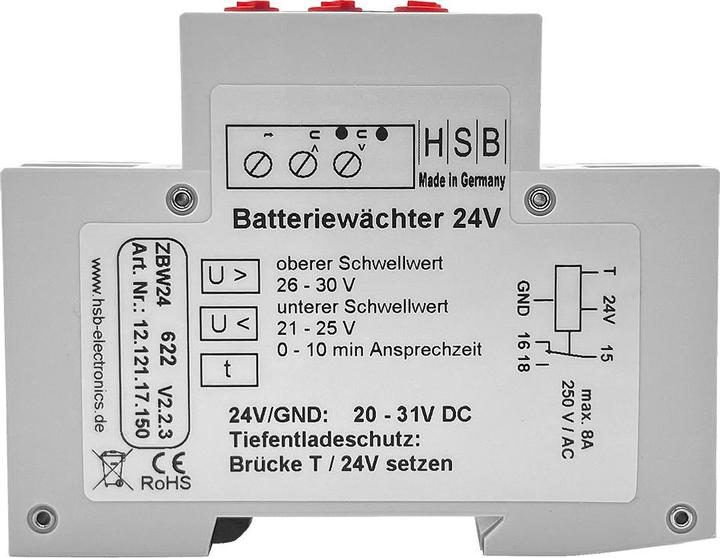

The voltage measuring relay monitors the DC voltage present at terminals A1 and A2.

Application:

  • Deep discharge protection and overcharge protection for AGM, GEL and wet batteries.
  • The relay is energised when the voltage to be measured is below the set value V< (battery is empty) and the set delay time 0-10 minutes has elapsed.
  • This condition is indicated by the yellow LED lighting up.
  • The relay returns to its rest position as soon as the voltage to be monitored exceeds the set value at V> (charging end voltage).

Supply voltage: 20 - 31VDC

  • Power consumption: 0.8Watt
  • Operating mode: continuous operation
  • Measurement accuracy:
  • 2% over total temperature and voltage range
  • Repeatability: +/- 2%

Measuring range:

  • Undervoltage: 21-25V
  • Overvoltage: 26-30V
  • Hysteresis: 1V

Contact

  • Number of changeover contacts : 1
  • Contact material : AgSnO2
  • Maximum switching voltage : 250V AC
  • maximum switching current : 8A
  • maximum switching capacity : 2000VA
  • maximum inrush current : 30A.

Key specifications

input voltage
31 V
Output voltage
25 V
Item number
38725026

General information

Manufacturer
Westech
Category
Relays
Release date
20.9.2023

Relay properties

input voltage
31 V
Output voltage
25 V
Manufacturer Type
Westech voltage monitoring 24V

Origin

Country of origin
Germany

Voluntary climate contribution

CO₂-Emission
Climate contribution

Product dimensions

Weight
77 g

Package dimensions

Length
15 cm
Width
9.10 cm
Height
7.10 cm
Weight
110 g

30-day right of return
24 Months Warranty (Bring-in)
