WaveShare ESP32-CAM incl. OV2640 camera

Ratings
Delivered between Tue, 17.6. and Wed, 18.6.
More than 10 items in stock at third-party supplier
Supplied by

Product details

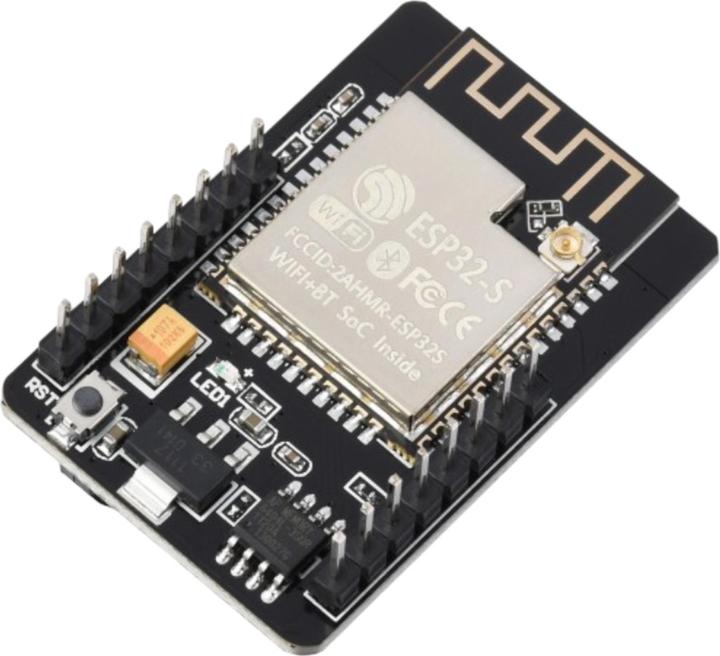

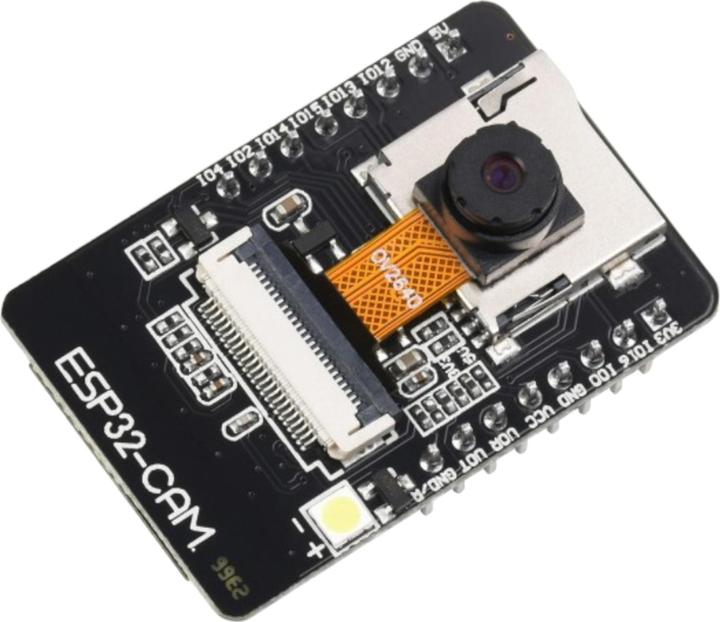

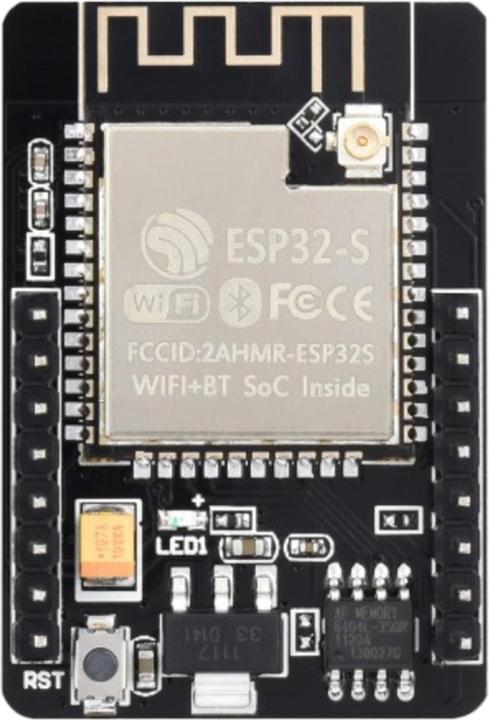

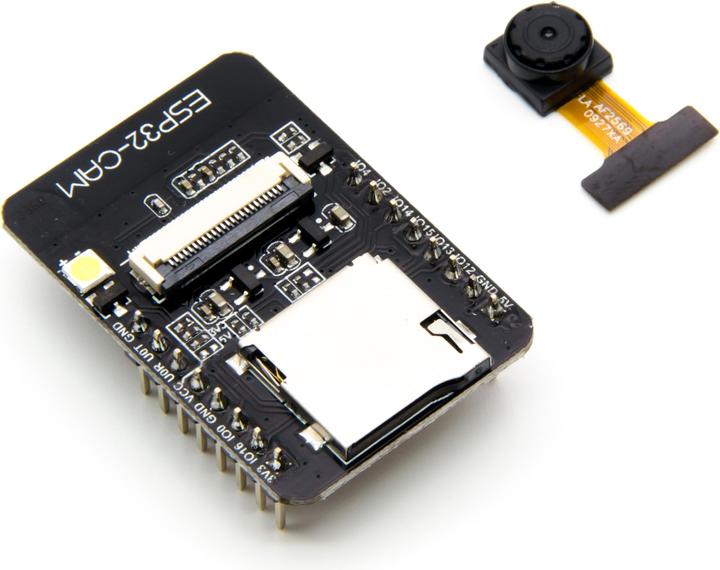

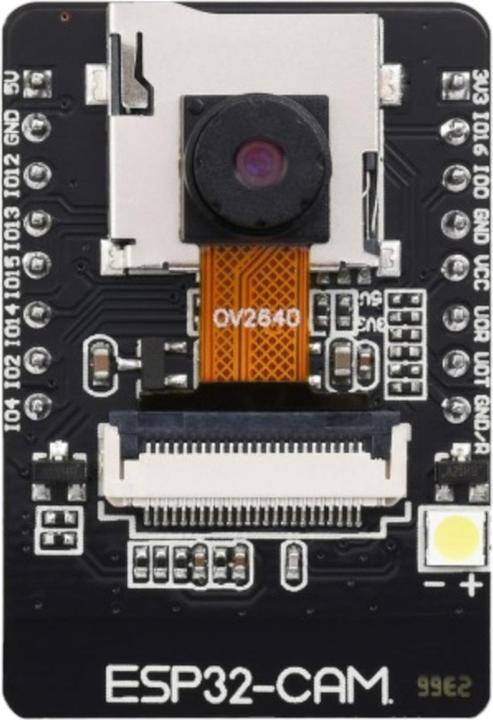

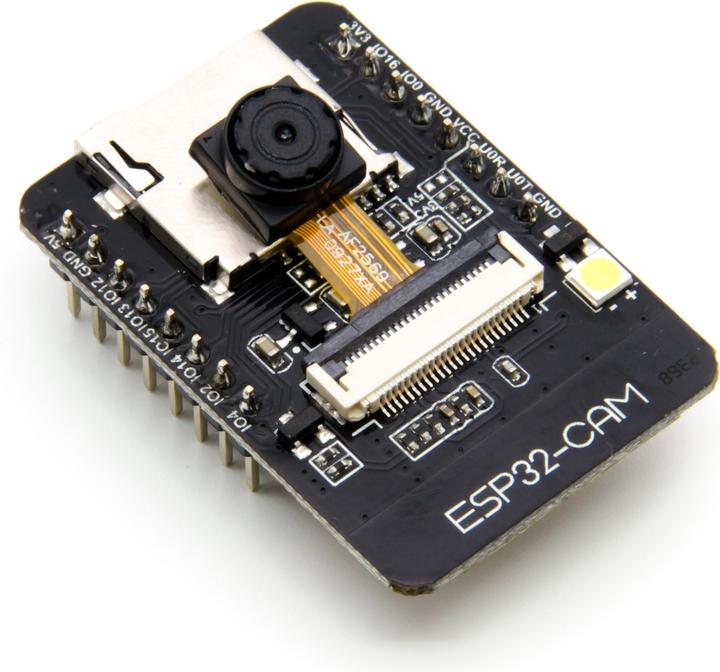

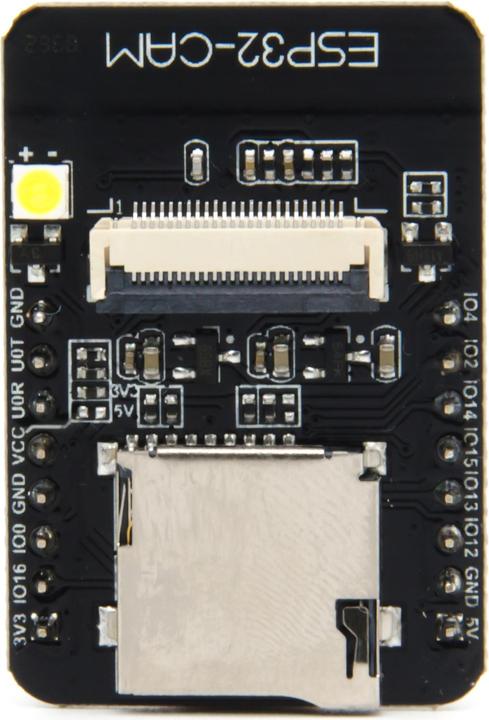

With this ESP32 board and the built-in OV2640 camera, you can create your own surveillance camera or photo camera, for example. The board is not suitable for beginners, as there are still not many examples and libraries available for Arduino. It features an ESP32-S microcontroller, a micro SD card slot for microSD cards, and an OV2640 2MP camera. Thanks to the external 4M PSRAM, the board is also perfect for MicroPython.

Recommended accessories:
Mini USB UART FTDI Programmer 3.3/5V USB Serial

Technical details:
Microcontroller: ESP32-S
Dual-core Tensilica LX6 microprocessor
USB-UART chip: CH340
USB connection: not available (requires FTDI programmer)
Camera: OV2640 2MP
MicroSD card slot on the board
Up to 240MHz clock frequency
Flash: 32M bytes
520kB internal SRAM
PSRAM: 4M bytes external SRAM
Integrated 802.11 b/g/n WiFi transceiver
Integrated dual-mode Bluetooth (BLE and Classic)
Operating voltage I/O: 3.3V
Supports UART / SPI / I2C / PWM / ADC / DAC
Supports OV2640 and OV7670 cameras (built-in flash)
Dimensions: 40 x 27 x 11mm
Weight: 7.8g

Package includes:
1x ESP-32 board
1x OV2640 camera.

Key specifications

Development board type
Kit
Memory
0.51 MB
Processor family
Tensilica
Processor type
ESP32
Clock speed
0.12 MHz
Number of cores
2
Item number
36513390

General information

Manufacturer
WaveShare
Category
Development boards + Kits
Release date
20.6.2023

Development board properties

Development board type
Kit
Processor family
Tensilica
Processor type
ESP32
Clock speed
0.12 MHz
Memory
0.51 MB
Number of cores
2
Flash memory
32000 kB

Power supply

Power supply
Electrical connection
Operating voltage
5 V

Wireless transmission

Wireless transmission
Bluetooth, Wi-Fi
Wi-Fi standard
Wi-Fi 4 / 802.11n
Bluetooth version
4.2

Connections

Memory card type
microSD

Origin

Country of origin
China

Voluntary climate contribution

CO₂-Emission
Climate contribution

Scope of delivery

Scope of delivery
1 x ESP32-CAM module, 1 x ESP32-CAM-MB adapter, 1 x OV2640 camera, Mini USB UART FTDI Programmer 3.3/5V USB Serial
Additionally required (not included)
5V USB Serial, Micro USB UART FTDI Programmer 3.3

Product dimensions

Length
27 mm
Width
40.50 mm
Height
4.50 mm
Weight
10 g
