Features

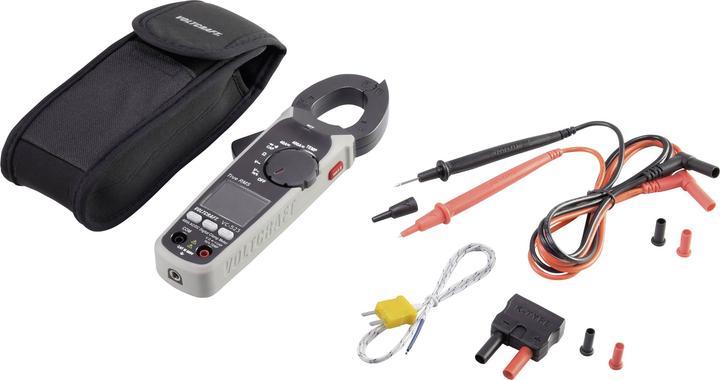

- Current clamp VC-523, safety measuring leads, K-type thermocouple air sensor (-20 to +230°C), K-type measuring adapter, storage bag, 3 micro batteries (type AAA, 1.5V), operating instructionsCHF120.95
- Current clamp VC-351, 2x micro batteries (type AAA, 1.5V), storage bag, operating instructionsCHF110.95
- Current clamp VC-533, safety measuring leads, K-type thermocouple air sensor (-20 to +230°C), K-type measuring adapter, storage bag, 3 micro batteries (type AAA, 1.5V), operating instructionsCHF131.45
- VC-1113 Current clamp Measuring leads 2 x AA batteries Carrying case Operating instructionsCHF89.95
- VC-740 E, 3 micro batteries (AAA), 2 CAT IV safety test leads, temperature sensor (-40 to +250°C type K with banana plug, carrying bag, operating instructions (on CD).CHF153.45
Product details

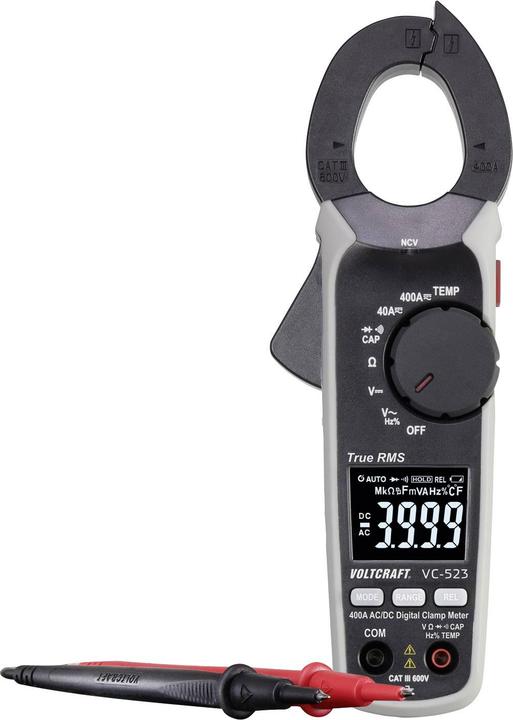

For easy and quick measurement of direct and alternating currents up to 400 A, the circuit does not need to be interrupted during measurement, unlike with multimeters. The device is perfectly suited for servicing machines in control cabinets and for measuring high currents in automotive and truck electrical systems.
Multimeter functions: The device features voltage, frequency, temperature, capacitance, and resistance measurement functions with automatic range selection, as well as diode testing, True RMS, and acoustic continuity testing. Additionally, the device is equipped with non-contact voltage testing (NCV).

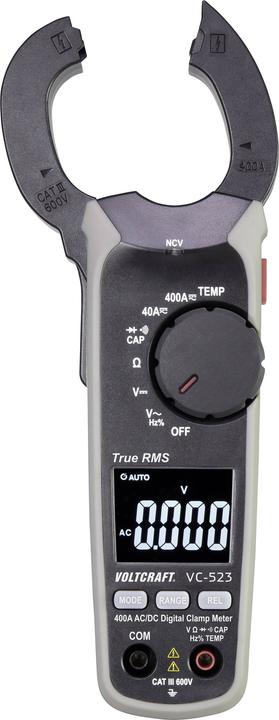

The high-contrast display with 4000 counts is exceptionally readable in all lighting conditions. Especially in poorly lit control cabinets, this model outperforms conventional clamp meters. The display shows 4-digit values up to 3999, regardless of the position of the decimal point.
The hold button is perfectly reachable with the thumb and is used to store readings when the display cannot be viewed during measurement. This button is ergonomically placed at the thumb's position and does not need to be searched for, unlike traditional clamps.

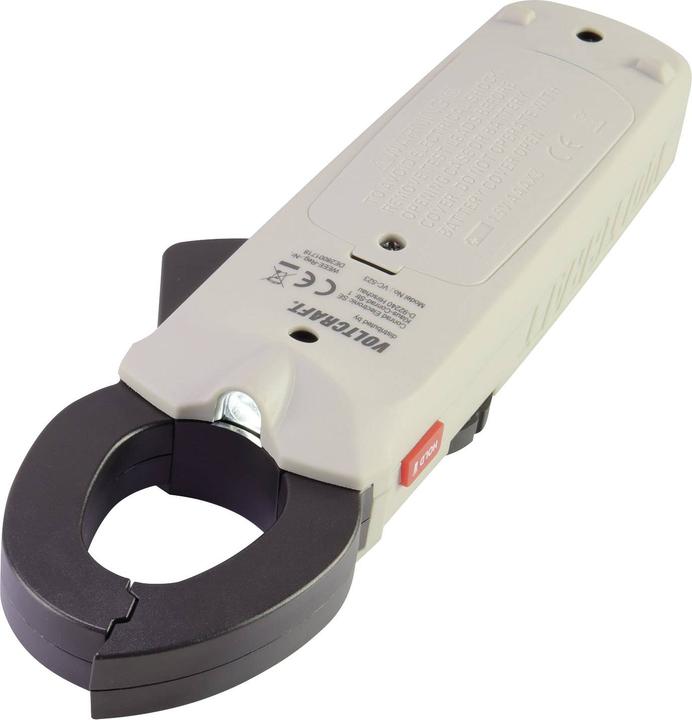

If needed, a bright LED with optics can be activated to illuminate the area directly in front of the clamp. The VOLTCRAFT VC-523 always maintains a non-slip contact with the surface. Unintentional slipping on uneven surfaces is effectively prevented by the rubber coating.
Thanks to the 2-component housing with integrated soft rubber protection, the measuring device is also suitable for tough applications. The rubberized housing shell makes the measuring device very easy to grip. A standard thread for connection to safety holders or belt systems is integrated into the housing.
