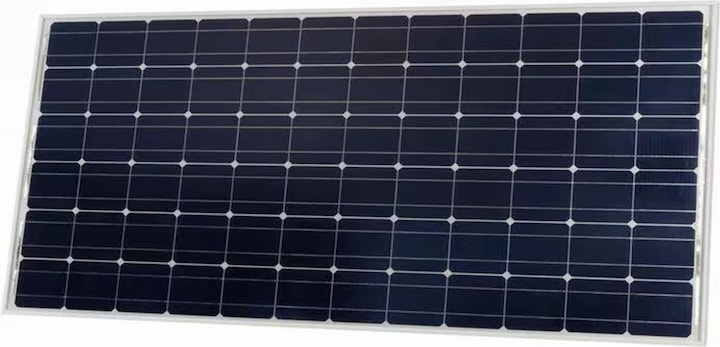

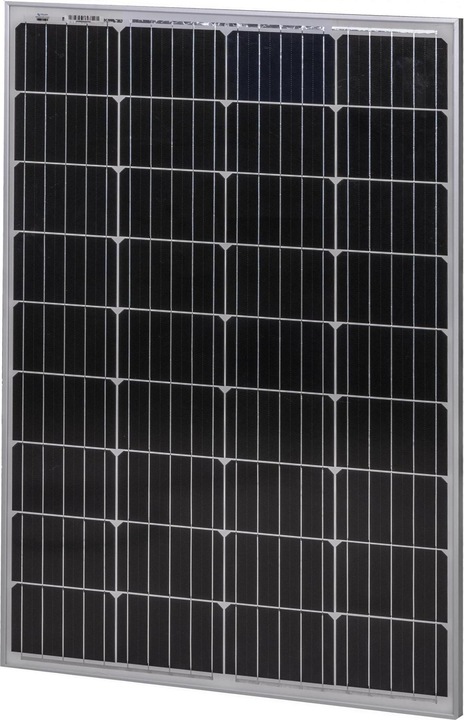

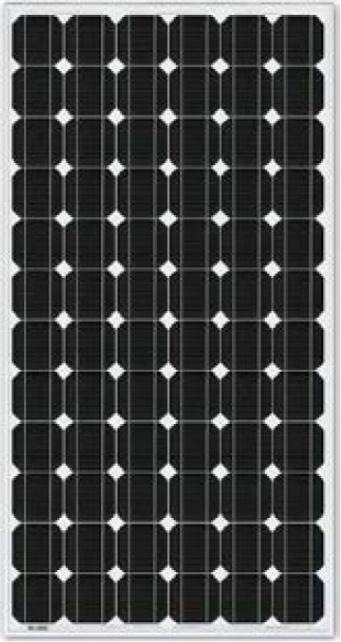

Victron Energy Solar module

Low temperature-voltage coefficient ensures high efficiency even at elevated temperatures. Exceptional performance in low light conditions and high light sensitivity across the entire solar spectrum. 25-year limited warranty on power output and performance, 5-year limited warranty on materials and workmanship. Sealed, waterproof, multifunctional junction box provides a high level of safety. High-performance bypass diodes minimize power loss due to shading. The advanced EVA (ethylene-vinyl acetate) encapsulation system with a triple-layer back sheet meets the strictest safety standards for high-voltage operation. A sturdy, anodized aluminum frame allows for easy installation of the modules on the roof using a variety of standard mounting systems. The highest quality security glass with high transmission offers improved strength and impact resistance. High-performance models come with a pre-wired quick-connection system featuring MC (PV-ST01) connectors.

Technical specifications:
Module SPM041151202
Nominal power PMPP (±3% tolerance) 115 W
Cell type Monocrystalline
Number of cells in series 36
Voltage VMPP 19V
Current IMPP 6.04A
Open-circuit voltage Voc 23.32V
Short-circuit current Isc 6.61A
Maximum system voltage 1000V
Temperature range -40°C to 85°C
Maximum surface load 200 kg/m²
Permissible hail load 23 m/s, 7.53 g
Cable length / connector type 900 mm MC4
Dimensions 1030x668×30mm
Weight 8kg.
