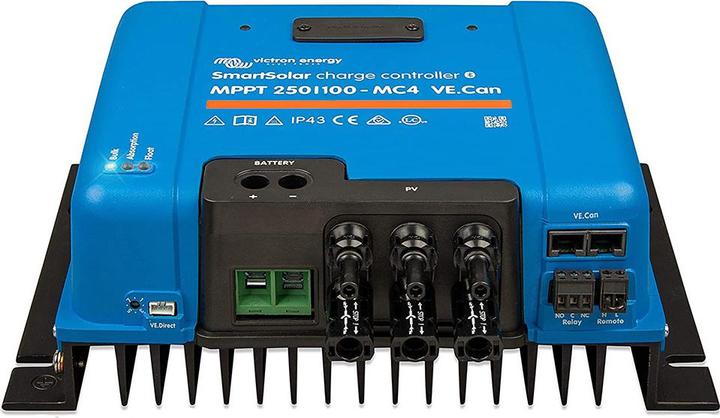

Victron Energy SmartSolar MPPT 250/100 VE.Can

Delivered between Fri, 29.5. and Tue, 2.6.
free shipping

Nominal current3

Nominal voltage2

Product details

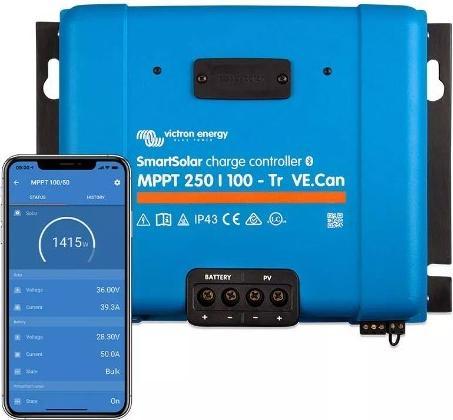

Solar charge controller SmartSolar MPPT 250/100 A solar charger is supplied with energy via solar modules and then stores it in batteries. Using the latest and fastest technology, the SmartSolar maximises this energy production and intelligently directs it to fully charge the batteries in as short a time as possible. The SmartSolar maintains the functionality of the battery and thus extends its service life. The SmartSolar charge controller even recharges a heavily discharged battery. It can operate with a battery voltage of just 0 volts, provided the cells are not permanently sulphated or otherwise damaged. MPPT: Ultra-fast maximum power point tracking. By continuously monitoring the voltage and current output of your solar (PV) modules, MPPT technology ensures that all available energy is drawn from the modules and stored. The benefit of this is most noticeable when the sky is partly cloudy and the light intensity is constantly changing. Remote monitoring and control. You can remotely control and monitor the extensive functions of your SmartSolar MMPT charger with integrated Bluetooth by pairing it with your smartphone or other device via VictronConnect. If your system is connected to the Victron Remote Management Internet Portal (VRM) via a GX device, you have full access to your MPPT at any time and from anywhere. Both VictronConnect and VRM are available free of charge. For remote installations - even if there is no internet connection nearby - you may be able to monitor your MPPT by connecting to the GlobalLink 520. With VictronConnect you can check live status information and configure all Victron products that either have a built-in Bluetooth function or are connected with a VE.Direct Bluetooth Smart Dongle.

Key specifications

Nominal voltage
48 V
Nominal current
100 A
Safety function
Reverse polarityShort circuitUndertemperature

General information

Item number
22985945
Manufacturer
Victron Energy
Category
Charge controller
Manufacturer No.
SCC125110512
Release date
4.11.2022
External links

Colour

Colour
Blue
Exact colour description
Blue

Charge controller properties

Nominal voltage
48 V
Nominal current
100 A
Power output
100 W
Safety function
Reverse polarityShort circuitUndertemperature
Display type
Digital
Protection type (IP code)
IP43

Origin

Country of origin
GermanyIndia

Voluntary climate contribution

CO₂ emissions
298.04 kg
Climate contribution
CHF 7.09

Scope of delivery

Items per sales unit
1x

Product dimensions

Length
24.60 cm
Width
29.50 cm
Height
10.30 cm
Weight
4500 g

Package dimensions

Length
33.40 cm
Width
30.50 cm
Height
17 cm
Weight
5.77 kg

30-day right of return
5 years Warranty (Bring-in)
